ABB ROBOTICS / LEGACY CONTROL HARDWARE

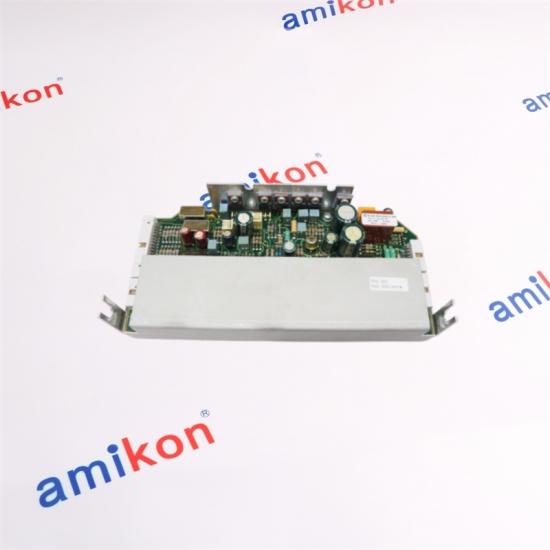

3HAA3563-AMADSQC 253 Serial Measurement Board
The ABB 3HAA3563-AMA is associated with the DSQC 253 Serial Measurement Board used within legacy ABB robot measurement hardware. The board forms part of the robot measurement architecture used to maintain axis-related measurement and reference data. For replacement work, the complete ABB article number, installed robot configuration, connector arrangement and hardware revision should be checked together. CORE IDENTIFICATION
ABB · 3HAA3563-AMA · DSQC 253 · Serial Measurement Board
|
PART PROFILE
Exact configuration matching is recommended before replacement.
|
|
01 / PRODUCT CHARACTER
Built for Legacy ABB Robot Measurement ArchitectureThe 3HAA3563-AMA is associated with ABB's DSQC 253 Serial Measurement Board family. Its role is tied to robot measurement hardware rather than general-purpose PLC I/O. The board is intended for an ABB robot configuration where the corresponding measurement architecture, interfaces and controller arrangement are present. For a replacement purchase, the complete article number should be retained exactly as marked. A visually similar ABB board should not be treated as an automatic substitute because measurement boards can differ in connector arrangement, hardware revision and system compatibility. |
WHY THIS PART MATTERS
|
|
02 / ENGINEERING VIEW
Key CharacteristicsThe important selection point is not only the board designation. The robot generation, controller architecture, mounting environment, connectors and revision all contribute to compatibility. Replacement Principle
Match the complete article number and installed configuration before installation.
|
|
|
01
Legacy Robot Service
Suitable for planned maintenance where the installed ABB system uses the corresponding DSQC 253 measurement architecture. |
02
Measurement Board Renewal
A replacement candidate when the existing measurement board has reached the end of its service life or requires board-level renewal. |
03
Axis Reference Issues
Relevant to troubleshooting where robot measurement or axis-reference behavior points toward the measurement hardware. |
04
Planned Obsolescence Support
Useful for keeping a legacy ABB robot operational when an exact board replacement is required. |
|
04 / RELATED DSQC ARCHITECTURE
Same-Family Hardware ContextThe 3HAA3563-AMA belongs to a group of ABB legacy robot hardware using related DSQC designations. The nearby part numbers should be treated as functional relatives, not automatic substitutes. Examples associated with the same legacy hardware environment include DSQC 245, DSQC 252, DSQC 254, DSQC 255, DSQC 256 and DSQC 258. Their roles differ, so the complete part number and intended function remain essential when selecting a replacement. |
|
|
DIRECT QUOTATION
Tell Us What You NeedFor a fast quotation, please send the exact part number together with your purchasing and application details. |
Sales Manager: Miya zheng
|
| Part Number | Quantity | Destination | Required Date | Machine / System |
|
How do I verify that 3HAA3563-AMA is the correct board for my ABB robot?
Confirm the complete 3HAA3563-AMA article number and the DSQC 253 designation against the installed board. The robot generation, controller arrangement, connectors and hardware revision should also agree before purchase. Can 3HAA3563-AMA be replaced by another ABB measurement board?
Not automatically. Related ABB measurement boards may have different article numbers, hardware configurations or intended robot applications. A substitute should only be used when the complete configuration has been confirmed as compatible. What should I provide when purchasing 3HAA3563-AMA for an urgent repair?
Provide the complete part number, quantity, destination, required date and machine/system information. A clear photograph of the installed board marking and connectors can also help reduce configuration uncertainty. |
What makes 3HAA3563-AMA different from the other DSQC boards?
3HAA3563-AMA is associated with DSQC 253 and the serial measurement-board function. Other DSQC units in the same legacy environment may serve safety, power-supply, backplane or other control functions and therefore should not be selected by appearance alone. What should be checked before installing 3HAA3563-AMA?
Isolate the relevant electrical energy, use appropriate ESD precautions, preserve connector identification and verify the board configuration. After installation, perform the required measurement, calibration and robot-system checks before automatic operation. Is 3HAA3563-AMA suitable for keeping an older ABB robot operational?
It can be a suitable replacement when the installed robot uses the corresponding DSQC 253 measurement architecture and the complete configuration matches. Exact article-number and interface verification remains important for legacy equipment. |
|
