ABB ROBOTICS / SMB SERVICE COMPONENT
3HAC046686-004

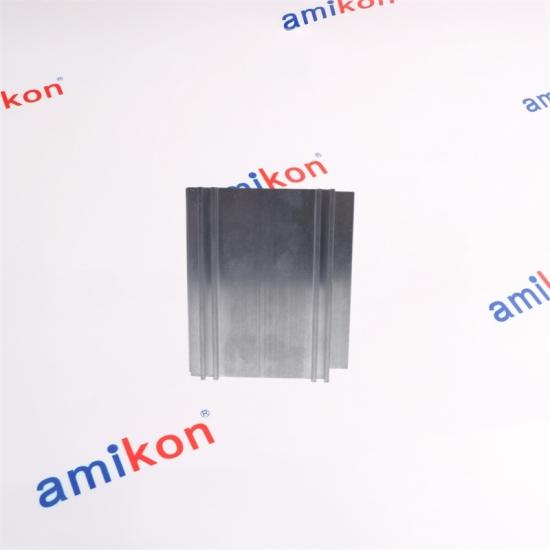

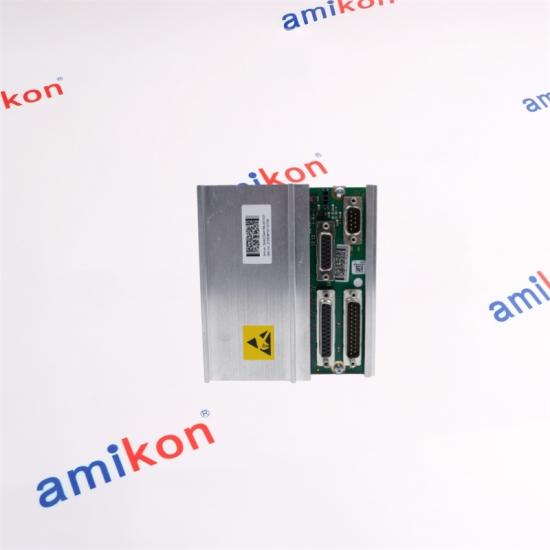

SMB Replacement Set
The ABB 3HAC046686-004 is an SMB replacement set intended for ABB robotic equipment using the corresponding serial measurement board and battery arrangement. The replacement concept combines the SMB board, battery-related components, cable connection and dedicated mounting hardware into one service-oriented set.
SERVICE-READY REPLACEMENT
Designed to simplify replacement of the installed SMB arrangement while keeping the associated battery and connection components aligned with the replacement procedure.
|
PART SNAPSHOT
CONFIGURATION CHECK
Confirm the robot variant, installed SMB arrangement and battery connection before ordering.
|
|
PRODUCT OVERVIEW
The 3HAC046686-004 belongs to ABB's SMB replacement-set family for industrial robots. Its role is to provide a coordinated replacement arrangement for the serial measurement board and its associated battery connection components. The set is particularly relevant when an installed SMB configuration requires replacement rather than replacement of unrelated robot assemblies.
WHY THE SET MATTERS
A service replacement is not only a board exchange. The battery pack, cable connection and mounting arrangement must correspond to the SMB configuration installed in the robot. Using the correct replacement set helps keep these related components aligned during maintenance.
|
CORE CHARACTERISTICS
|
| Item | 3HAC046686-004 Configuration | Service Role |
| SMB board | 3HAC044168-001 / RMU101 | Serial measurement function |
| Battery pack | 3HAC044075-001 | Battery supply for SMB arrangement |
| Battery / SMB cable | 3HAC046287-001 | Electrical connection |
| Battery fastening | 3HAC046710-001 | Battery pack mounting |
| SMB fastening | 3HAC046720-001 | SMB board mounting |
| Battery holder | 3HAC046250-001 | Battery positioning |
| Cable straps | 21662055-3 | Cable securing |
|
