| ABB · 3HAC021828-001 | PRODUCTSYSTEM FITSUPPLYFAQMODELS |

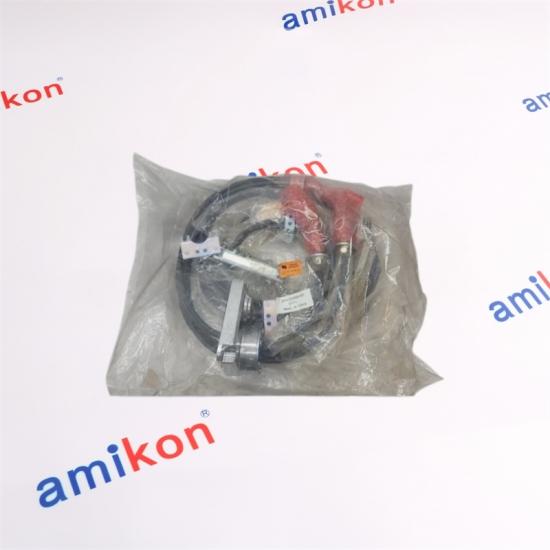

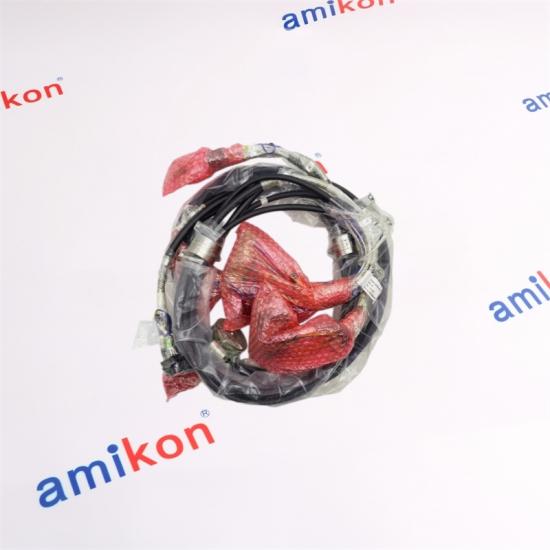

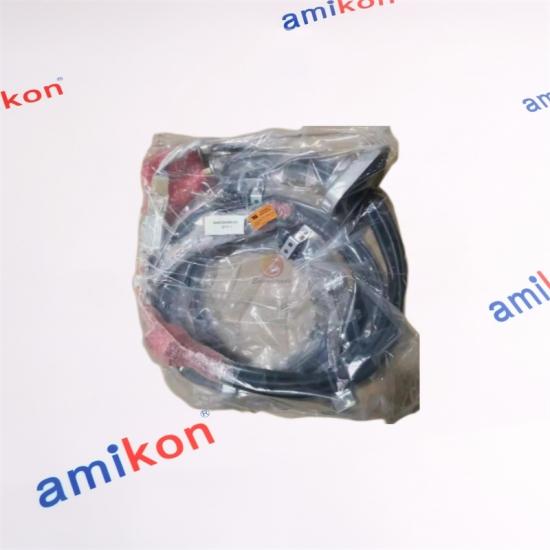

An ABB Robotics customer-connection cable harness for the IRB 1600 with 1.45 m reach. It is a variant-specific manipulator spare and should be matched to the installed robot and connection arrangement.
| IRB 1600robot family | 1.45 mreach configuration | Customerconnection role | Cable harnessproduct type |
| Manufacturer | ABB Robotics | |
| Article number | 3HAC021828-001 | |
| Product type | Cable harness | |
| Functional description | IRB 1600/1.45 customer connections | |
| Robot family | IRB 1600 | |
| Reach configuration | 1.45 m | |
| Installation area | Manipulator internal customer-connection route | |
| Variant control | The 1.2 m reach configuration uses a different customer-connection harness | |
| Related basic harness | 3HAC021827-001 for the IRB 1600/1.45 basic cable-harness role | |
| Related wire-feeder harness | 3HAC021830-001 for the IRB 1600/1.45 wire-feeder route | |
| Selection basis | Full article number, robot reach, connector layout and installed routing | |
| Mechanical checks | Clamps, bend radius, sleeve condition, articulation clearance and entry points | |
| Electrical checks | Connector keying, pin condition and restored customer circuits | |
| Service preparation | Isolate the robot, label both ends and record routing before removal |
| Send the full robot identity and installed harness photographs. | REQUEST A MATCH CHECK |
| 3HAC021828-001 | IRB 1600/1.45 customer connections | Selected product | 1 |
| 3HAC021828-003 | IRB 1600/1.2 customer connections | Different reach configuration | 2 |
| 3HAC021827-001 | IRB 1600/1.45 basic harness | Different electrical role | 3 |
| 3HAC021830-001 | IRB 1600/1.45 wire feeder | Application-specific route | 4 |
Confirm robot family, mechanical-unit variant, reach, harness function, connector arrangement and routing. Physical resemblance alone is not a replacement criterion.
|
◎
Two Decades of Supply Experience
Support for current and hard-to-find industrial automation parts. |
◇
Part-Matching Attention
Full codes and clear photographs support an organized inquiry. |
⌁
Emergency Dispatch Support
Responsive coordination helps reduce avoidable downtime. |
| Contact us within seven days if a concern appears after receipt. | Keep the item in its original condition and state the specific reason. Resolution follows receipt and inspection. | Return-related shipping costs are paid by the buyer. |
| 01 |
3HAC021828-001 — Why does the 1.45 m reach matter for 3HAC021828-001?
Harness routing and length are tied to the mechanical configuration. The IRB 1600/1.2 customer-connection harness uses a different article number.
|
| 02 |
3HAC021828-001 — Can 3HAC021828-001 replace the basic IRB 1600 harness?
No. It serves the customer-connection route. The basic IRB 1600/1.45 harness and the wire-feeder harness are separate spares with different functions.
|
| 03 |
3HAC021828-001 — What should be compared with the replacement unit?
Compare the complete label, connector count and keying, branch lengths, protective sleeves, clamps and termination arrangement.
|
| 04 |
3HAC021828-001 — What installation records should be made first?
Photograph both ends and every routing transition, label connectors, mark clamp positions and note the original bend radius before loosening the old harness.
|
| 05 |
3HAC021828-001 — What commissioning checks follow replacement?
Verify each affected customer circuit, connector retention and harness clearance through the required robot movement before production resumes.
|
