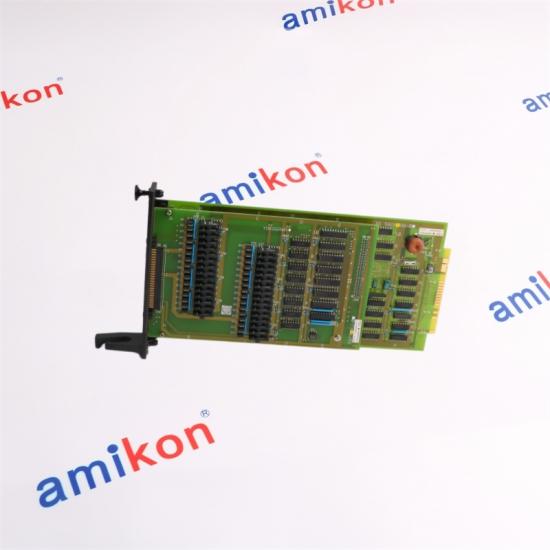

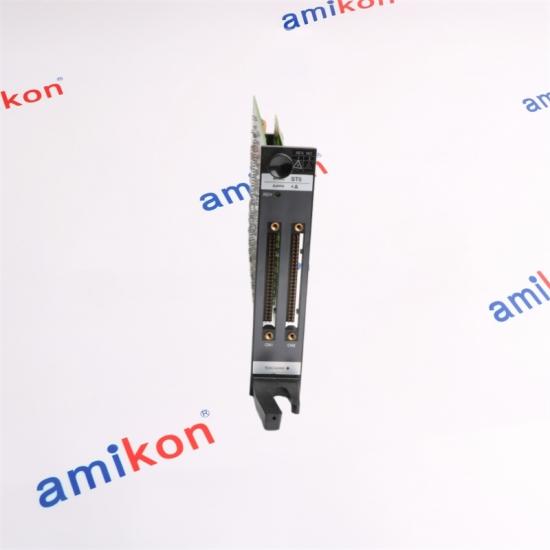

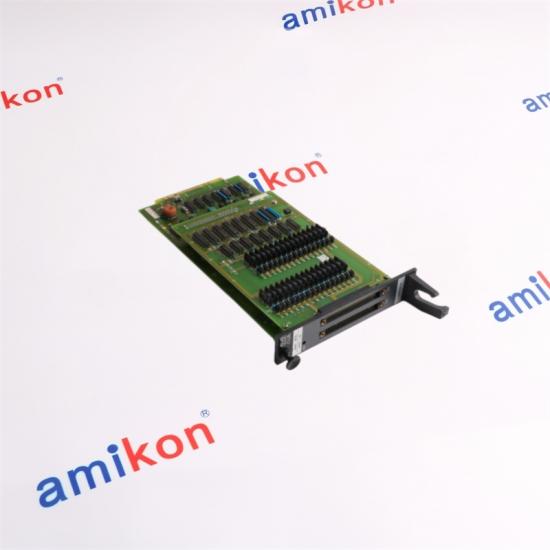

Yokogawa ST5*A DCS Status Card

YOKOGAWA ▷ ST5*A ▷ DCS Status Card

Connects with specific Yokogawa DCS hardware and mounting nests like the RYH and RYV series.

RYV Relay I/O Cards Nest (Vertical Mounting Type)

This vertical mounting type nest is used to store relay I/O cards to fit mounting dimension of CENTUM-XL S/C nest.

l Can store up to 16 units (32 channels) relay I/O cards.

l Can make mixed store of replay input and output cards in one nest.

l Can connect between nest and DCS with connector.

l Can connect with sequencer since necessary power to receive signal between nest and sequencer is supplied from the nest.

l Non-voltage contact of nest alarm terminal becomes ON when break of fuse in relay I/O cards.

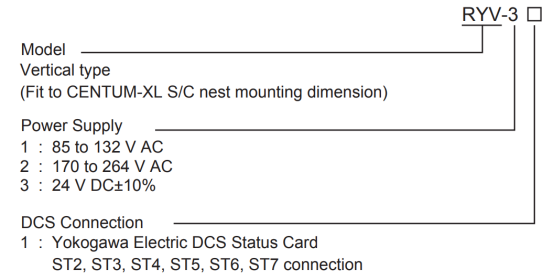

MODEL AND SUFFIX CODES

SPECIFICATIONS

l Number of relay I/O cards be stored

16 units (32 channels, 2 channels per card)

Combination:

(1)Input card 16 units (32 channels)

(2) Input card 8 units (16 channels) Output card 8 units (16 channels)

(3) Output card 16 units (32 channels)

l Supply power

Supply power to 16 I/O cards in block

l Alarm

Non voltage contact outputs from alram terminal when fuse breaks in I/O card.

l Output rating

30 V DC, 300 mA (Set flash off circuit in parallel to load when connecting conduct circuit externally)

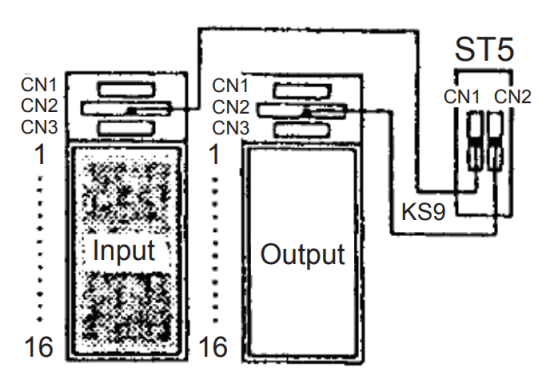

COMBINATION STRUCTURE
