BRAND |
YOKOGAWA |
|
Model Number |
ADV141-S12 S1 |
|
Operating Temperature |
-20°C to +70°C (-4°F to 158°F) |
|
Descripution |
Digital Input Module |
|
Rated Input Voltage |
100 V to 120 V AC (50/60 Hz) |

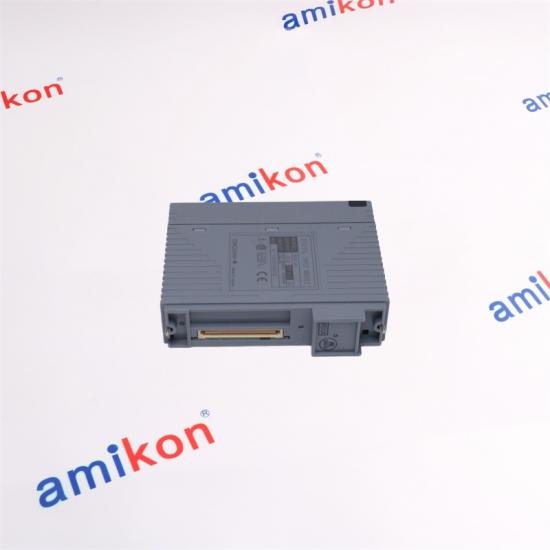

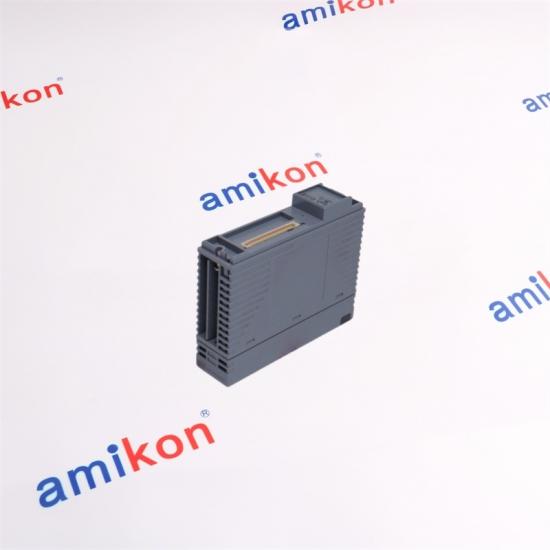

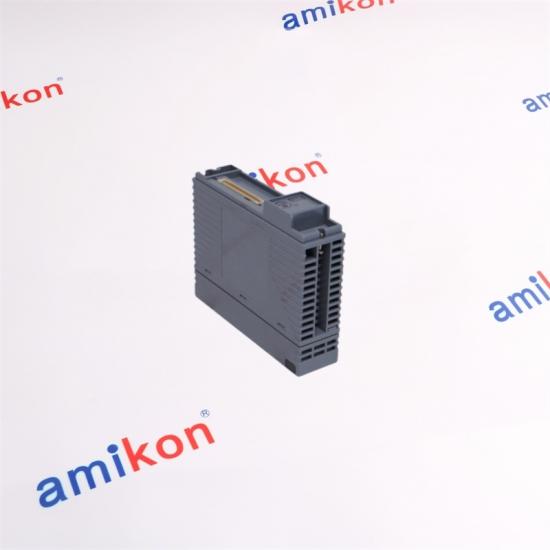

YOKOGAWA ADV141-S12 S1
Ø 16-channel AC digital input module
Ø Designed for Yokogawa CENTUM VP and FIO distributed control systems (DCS)
Ø Receives 100 to 120 V AC ON/OFF field signals and converts them for system processing.
FIO System GENERAL (for Vnet/IP)
The FIO (Fieldnetwork I/O) System is connected to the Field Control Unit (FCU) via an ESB, optical ESB, or ER bus.
The Field Control Unit (AFV30-/AFV40-) is connected to an ESB Bus Node Unit (ANB10-) or an Optical ESB Bus Node Unit (ANB11-). The Field Control Unit (AFV10-) is connected to an ESB Bus Node Unit (ANB10-) or an ER Bus Node Unit (ANR10-).
A node unit consists of a power supply module, a bus interface module, and input/output modules that are installed in a base unit. The power supply module, bus interface module, and input/output modules can be configured redundantly.
The Unit for Optical ESB Bus Repeater Module (ANT10U) can be used to connect the optical ESB bus in a chain or star configuration.

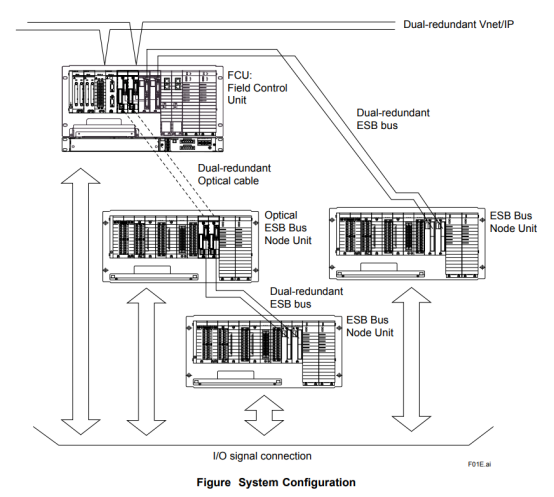

The following shows a system configuration example.
|
