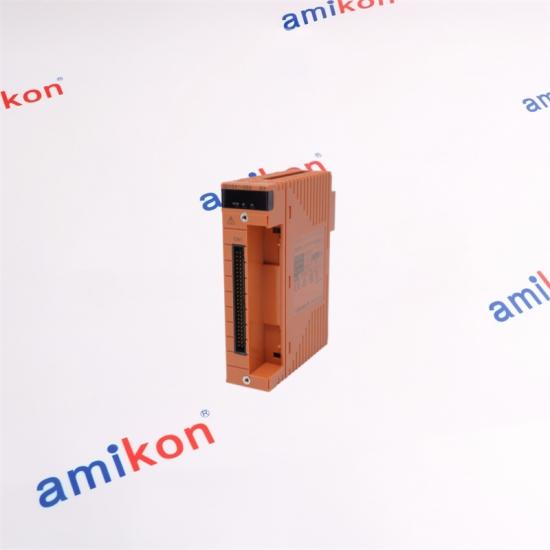

SDV541-S5C/B4S10 is a Yokogawa ProSafe-RS digital output configuration providing 16 isolated digital output channels at 24 V DC. The SDV541 family is designed for digital output functions in the ProSafe-RS safety control and safety node architecture.
Why the complete code matters
The suffixes are not cosmetic. The S5C configuration specifies the pressure-clamp/MIL connection family together with ISA Standard G3 and high-density installation, while /B4S10 specifies the single pressure-clamp terminal block STB4S-10 with surge absorber. For replacement purchasing, matching the complete code helps avoid a mismatch between the required installation arrangement and the ordered module.
|
CONFIGURATION LOGIC
|
|
CORE CHARACTERISTICS
Output architecture
with installation flexibility |
|
| Parameter | SDV541-S5C/B4S10 |
| Module type | Digital output module, 16-channel, module isolation |
| Output voltage | 24 V DC |
| Output format | Current source |
| Output voltage drop | 1 V maximum |
| External power supply | 24 V DC, +20% / -10% |
| External power supply rating | 3.4 A minimum |
| Maximum load current | 0.2 A per output line; 3.2 A total output line |
| Minimum load current | 35 mA |
| Load resistance range | 120 to 685 Ω |
| Maximum leak current, output OFF | 1.6 mA |
| Output response time | 30 ms maximum |
| Withstand voltage | 2 kV AC between output signal lines and system for 1 minute |
| Current consumption | 300 mA maximum at 5 V DC; 150 mA maximum at 24 V DC |
| Weight | Approx. 0.29 kg with pressure-clamp terminal or MIL cable |
| External connection | Pressure-clamp terminal, MIL cable, or dedicated signal cable connection according to configuration |
|
INSTALLATION WINDOW
Temperature and density matter when replacing the module.
The S5C configuration is intended for ISA Standard G3 and high-density installation. The available channels and allowable load current vary with ambient temperature.
|
|
|
SYSTEM ROLE
Where SDV541 fits
|
SDV541 belongs to the ProSafe-RS digital I/O group. In the system architecture, I/O modules are mounted on a Safety Control Unit or Safety Node Unit. The SDV541 provides digital output functions for field equipment where a 24 V DC current-source output is required.
|
|
01 / Safety I/O
Suitable for digital output functions within a ProSafe-RS safety-system architecture when the field load, wiring, temperature and installation conditions meet the applicable limits.
|
02 / Field Actuation
The current-source outputs can be used for field devices requiring the specified 24 V DC digital output characteristics.
|
03 / Replacement Work
The complete model code is especially important when replacing an installed module because the connection style, terminal option and installation class affect compatibility.
|
|
CONNECTION CONFIGURATION
Why /B4S10 is important
The /B4S10 option specifies a pressure-clamp terminal block for digital output with a surge absorber, identified as STB4S-10. The SDV541 family supports pressure-clamp, MIL-cable and dedicated signal-cable connection arrangements depending on the selected configuration.
Purchasing checkpoint: If an existing cabinet is wired through an STB4S-type pressure-clamp terminal, confirm the complete suffix before ordering rather than matching only the base model SDV541.
|
TERMINAL OPTION
/B4S10
STB4S-10
Pressure-clamp terminal block
Digital output connection Surge absorber included |
| Family configuration | Connection / environment | Selection consideration |
| SDV541-S5C | Pressure clamp or MIL cable; G3 + high-density installation | Relevant when high-density installation and the specified temperature range are required. |
| SDV541-S53 | Pressure clamp or MIL cable; G3 + temperature type | A related G3 configuration with temperature-type characteristics rather than the S5C high-density arrangement. |
| SDV541-S63 | Signal cable interface adapter; non-explosion-protection family | Consider when the cabinet wiring uses the dedicated signal-cable/interface-adapter architecture instead of direct pressure-clamp termination. |
| SDV541-SE3 | Pressure clamp or MIL cable; G3 + explosion-protection configuration | Selection depends on the required protection configuration of the installation. |
| SDV541-SF3 | Signal cable interface adapter; G3 + explosion-protection configuration | Useful where the system uses the signal-cable interface architecture together with the corresponding protection configuration. |
| /B4D10 family option | Dual-redundant pressure-clamp terminal with surge absorber | A different terminal arrangement from the single STB4S-10 supplied with the present /B4S10 configuration. |
|
REPLACEMENT CHECKPOINTS
Match the installed architecture, not only the model family.
|
|
|
DIRECT SALES SUPPORT
Need the exact configuration?
Send the complete model code and your installation requirements. Our sales team can check the configuration and prepare a quotation.
|
|
||||
| Part Number | Quantity | Destination | Required Date | Machine/System |
| Delivery | 3–5 Days | Warranty | 12 Months |
| Packaging | Brand New | Payment Term | T/T |
| Delivery Way | E-packing / FedEx / EMS / TNT / DHL / UPS | ||
|
Q1 · Is SDV541-S5C/B4S10 the right replacement when the existing cabinet uses a pressure-clamp terminal?
It is the configuration that combines SDV541-S5C with the STB4S-10 pressure-clamp terminal option. Before ordering, match the complete code and verify that the existing installation uses the corresponding single pressure-clamp arrangement. A base-model match to “SDV541” alone is not sufficient for a connection-specific replacement.
|
Q2 · What load conditions should be checked before purchasing SDV541-S5C/B4S10?
Check the field load against the 24 V DC current-source output characteristics. The maximum load current is 0.2 A per output line, with 3.2 A total for the output lines. The specified load resistance range is 120 to 685 Ω, and the minimum load current is 35 mA. These values should be checked against the actual field device before replacement.
|
|
Q3 · Does the SDV541-S5C/B4S10 include the terminal block needed for the /B4S10 configuration?
Yes. The /B4S10 option specifies the STB4S-10 pressure-clamp terminal block for digital output with a surge absorber. This distinguishes the configuration from /B4S00, which uses the corresponding pressure-clamp arrangement without the surge absorber.
|
Q4 · Can SDV541-S5C/B4S10 provide all 16 outputs at 0.2 A per channel in a high-temperature installation?
Not under every temperature condition. For the S5C high-density configuration, the specified 0.2 A/channel condition limits channel availability at higher ambient temperatures: channels 1–12 are available from -20 to 65 °C, while channels 1–10 are available from -20 to 70 °C. When the specified condition is 0.15 A/channel, all 16 channels are connectable over -20 to 70 °C.
|
|
Q5 · When should a buyer consider another SDV541 configuration instead of SDV541-S5C/B4S10?
The choice should follow the installed connection and environmental architecture. For example, SDV541-S63 uses a signal-cable interface-adapter arrangement, while SDV541-S53 represents a G3 temperature-type configuration rather than the S5C high-density type. A dual-redundant installation can require the corresponding /B4D10 terminal arrangement. Confirm the cabinet wiring, installation temperature, redundancy arrangement and complete existing model code before selecting an alternative.
|
|
 |
