YOKOGAWA / FCN
|
DIGITAL INPUT PLATFORM
NFDV151-P10
32-Channel • 24 V DC • Isolated Digital Input
|
FCN
32 I/O
24 V DC
|
|
CHANNELS
32
Digital input points
|
FIELD LEVEL
24 V DC
ON/OFF signal acquisition
|
INPUT RANGE
18–26.4 V
ON-voltage range
|
SPECIAL FUNCTION
P10
Pushbutton edge counting
|
|
01 / PRODUCT CORE
High-Density Discrete Signal Acquisition

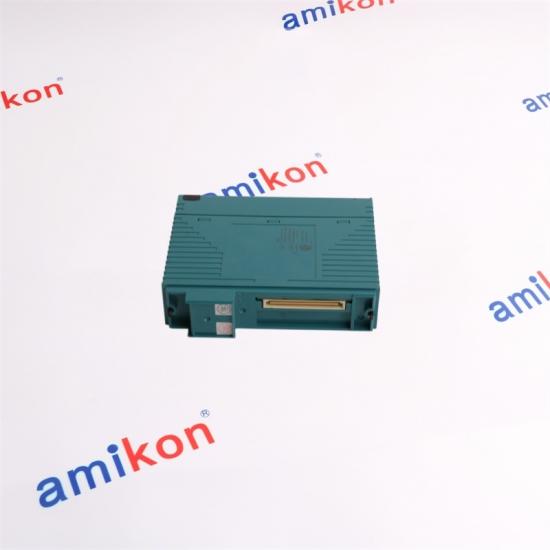

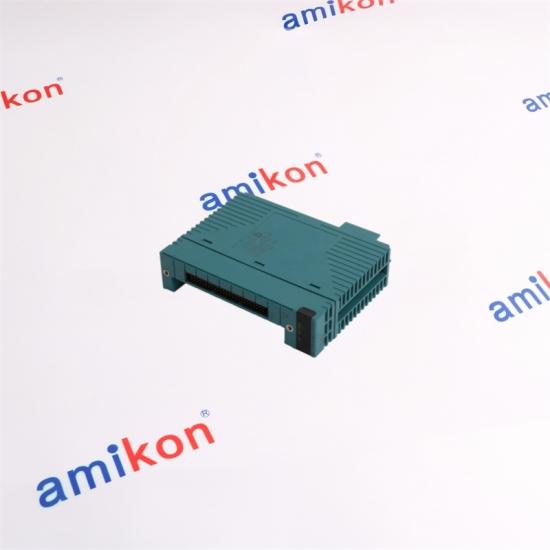

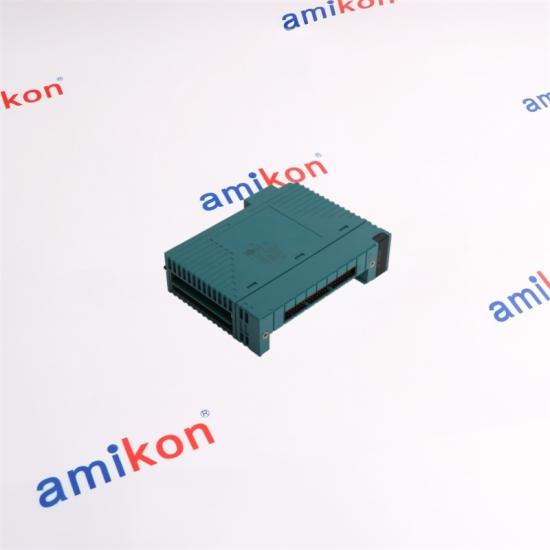

The YOKOGAWA NFDV151-P10 is a 32-channel digital input module for the FCN autonomous controller family. It receives 24 V DC ON/OFF signals and provides isolated field-side input handling for compact, high-density discrete signal acquisition.
The module combines conventional status detection with a pushbutton input function. For the pushbutton mode, the module can count the transition edge of a pushbutton signal, allowing discrete field events to be handled differently from continuously monitored ON/OFF status.
|
SIGNAL ARCHITECTURE
Isolated Digital Input
FIELD SIGNAL
INPUT CIRCUIT
FCN CONTROL SYSTEM
Isolation is specified between the input signal and system, with a separate common-to-common withstand specification for the 16-channel groupings.
|
|
|
||||||||||||||||||||||||||||
|
32
DISCRETE INPUT POINTS
A high-density arrangement for monitoring multiple binary field conditions through one FCN digital input module.
|
INPUT MODES
Pushbutton input is available on channels 1 through 32.
|
CONNECTION
Field Wiring Choices
Pressure clamp terminal
MIL connector cable
/B5S00 terminal option
/B5S10 terminal option with surge absorber
|
|
PRIMARY ROLE
Digital Input
NFDV151-P10 is positioned as a 32-channel, 24 V DC isolated digital input module for FCN autonomous controller configurations.
|
SERIES COMPARISON
|
CONFIGURATION DECISION
Match the Signal Function
Choose the NFDV151 family when the application requires 24 V DC digital input acquisition. The NFDV151-P10 variant is particularly relevant when pushbutton edge counting is required in addition to ordinary ON/OFF status detection.
For channel count, input function and connection method, the exact suffix and terminal configuration should match the installed FCN arrangement.
|
