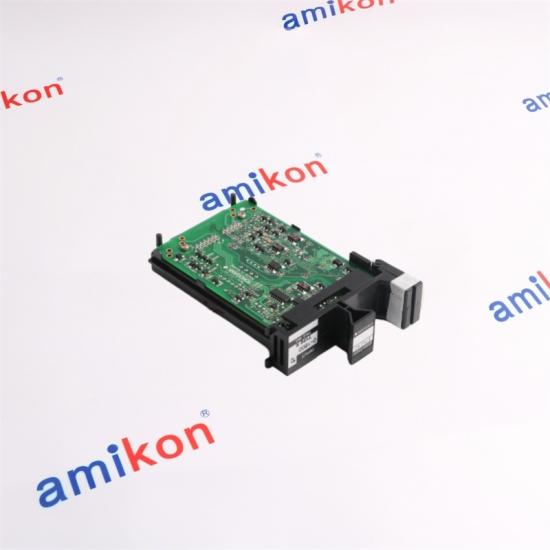

Yokogawa ET5*B Thermocouple Input Signal Conditioner Card

Model

ET5*B

Input signal

TC JIS C1602:1995, IEC 584:1995, ANSI (ITS-90) Type K, T, J, E, B, R, S, N

Measuring range

Span: 10 to 63 mV (Thermoelectric conversion)

Zero elevation: Smaller of 3 times span and ±25 mV

Measuring range change

Can be changed by BRAIN terminal

Input resistance

1 MΩ (10 kΩ when power off)

External input resistance

500 Ω max.

Allowable input voltage

-0.5 to 4 V DC

Input linearization

Provided

Input linearization

1 to 5 V DC, 2 outputs (output resistance: 1 Ω max., load resistance: 2 kΩ min.)

Max. current consumption (24 V DC)

60 mA

Power supply voltage

24 V DC ±10 %

Model

Descripution

ADV551-P53 S2

Digital Output Module

AAI143-S03 S1

Analog Input Module

AIP532 S1

Bus Coupler Module

PW302 S4

power supply module

SAI143-S63 S3

Analog Input Module

EB401-10 S1

Bus Interface Module

EH1*A

INPUT MODULE

ER5*B

RTD Input Module

ER5*C ER5 L3501BP-04

RTD Input Module

ET5*B

Signal Conditioner Cards

EXT*A

Extension Cable

MX3*D

DCS module

PS35*A

Power Supply Module

EA1*A AS E9740A-07

2-wire Transmitter

MAC2*B AS S9310AQ-05

Analog Control Card
