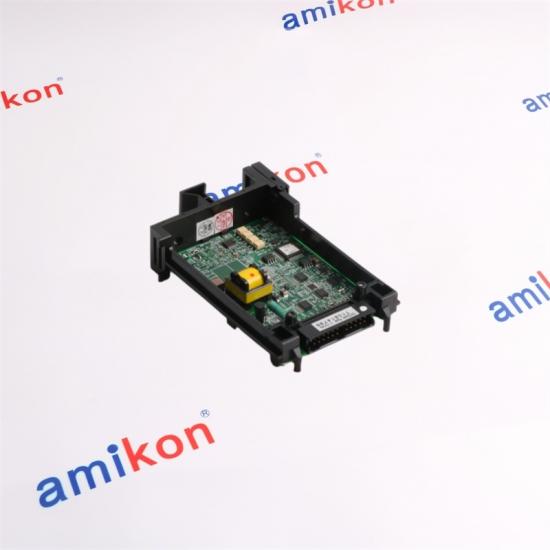

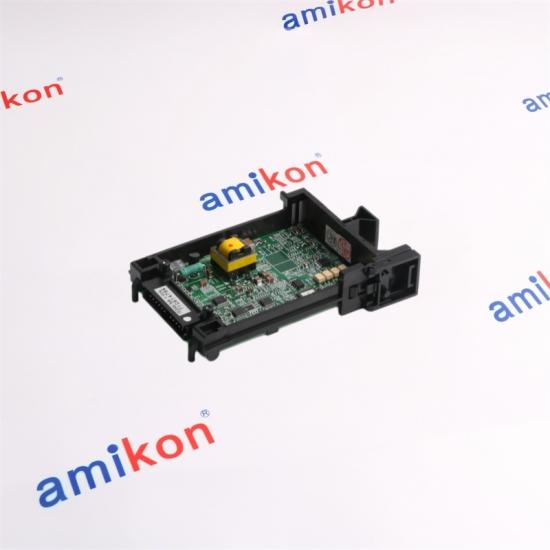

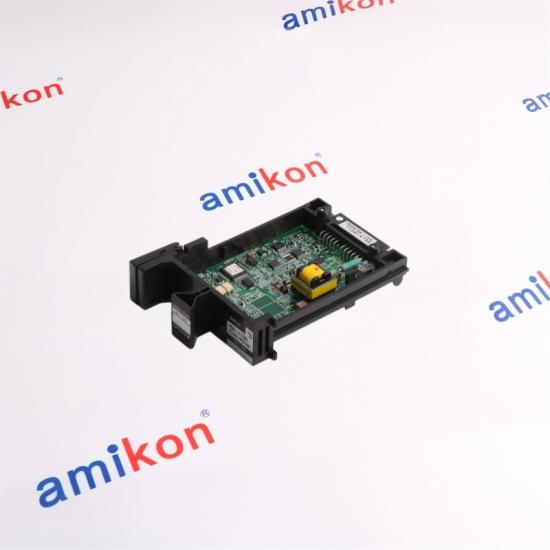

Model Number |
ER5*C |
|
Descripution |
Resistance thermometer sensor input card |
|
Input signal |
RTD (3-wire, Measuring current: 1mA) |
|
Measuring range |
Span: L 10 to 650 °C; Zero elevation: Max. 5 times span |
➊ YOKOGAWA EH1*A Signal Conditioner Card
Signal Conditioner Cards, which interface to the process, are installed in Signal Conditioner Nests. The signal conditioner cards can convert the I/O signals, isolate the I/O signals, and provide an isolated power supply from a built-in distributor.
For example, the measuring ranges of temperature and mV input signal conditioner cards can be changed by a portable BRAIN terminal. Some cards have communication functions and supply power to BRAIN Series transmitters (BRAIN UNI∆, BRAIN ADMAG and BRAIN YEWFLO).
➋ SPECIFICATIONS
|
Origin |
Japan |
|
External input resistance |
Max. 150 Ω/wire |
|
Input linearization |
Provided |
|
Burnout |
Selectable (upscale, downscale) or off (can be changed by BRAIN), scaleout time less than 60 sec. |
|
Signal isolation |
Between input and output signals, input signal and power input Between output signal and power input |
|
Mounting method |
Mounted in special nest (signals and power supply are connected via backboard and connector) |
|
Wiring |
External wiring: M4 screw terminals for I/O in special nest Wiring to I/O cards: By special cable using connector |
|
External dimensions |
73 (Width)x24 (Height)x115 (Depth) mm (including knob) |
|
Weight |
0.10 kg |
|
Accuracy rating |
Within larger of ±0.1 % of span and 0.2 °C |
|
Isolation resistance |
Between input and output signals, input signal and power input: at 500 V DC,100 MΩ Between output signal and power input: at 500 V DC,100 MΩ |
|
Withstanding voltage |
Between input and output signals, input signal and power input: 1500 V AC for 1 minute Between output signal and power input: 500 V AC for 1 minute |
|
Power supply voltage |
24 V DC ±10 % |
|
Max. current consumption (24 V DC) |
60 mA |
|
Ambient conditions |
0 to 50 °C /5 to 90 % RH (non-condensing |
|
Effect of ambient temperature change |
Max. ±0.2 % of span for 10 °C change |
|
Effect of power supply voltage change |
Max. ±0.1 % of span for change of 24 V DC ±10 % |

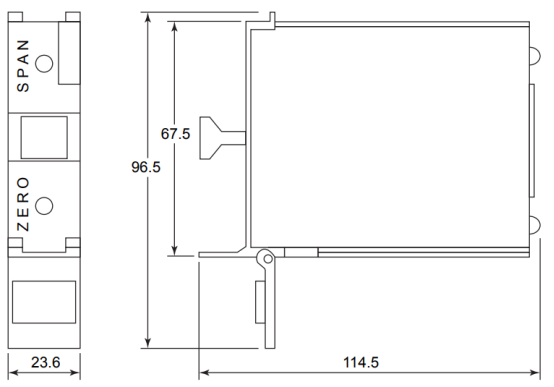

➌ EXTERNAL DIMENSIONS
Nominal Tolerances :
Nominal tolerance is ± 0.8 mm for the dimensions of 0.5 mm or more and 120 mm or less, and the combined nominal tolerance is ± 1.5 mm.
The nominal tolerance is in accordance with JEM 1459 for the dimensions over 120 mm.
