Model |
EA1*A AS E9740A-07 |
|

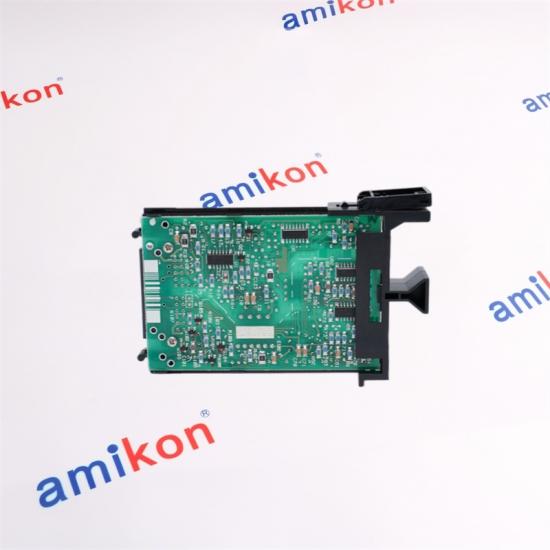

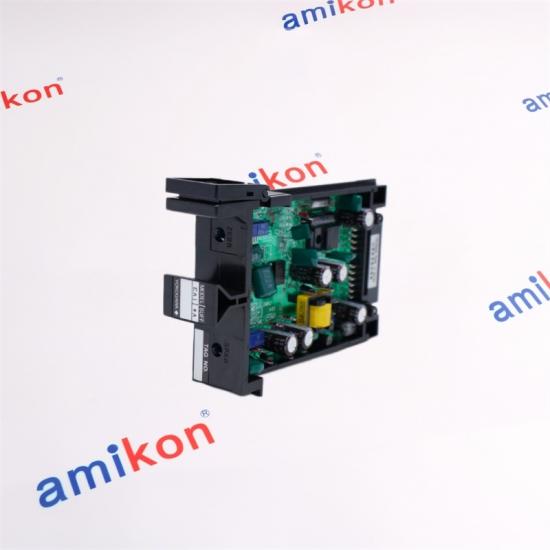

The Yokogawa EA1*A AS E9740A-07 is a signal conditioner and 2-wire transmitter input card. It handles 4–20 mA DC signals in industrial automation systems. |
|
AMIKON LIMITED
ü Global Shipping
ü Our goal is to ship within 24 hours of order placement.
ü Currently, AMIKON's global business team offers services in a wide range of languages and has established business teams in 167 countries and regions worldwide.
ü Your automation partner anywhere in the world!
ü Our actions aim to break down old, rigid rules and introduce innovation in spare parts sourcing.
ü We provide parts and machinery services.
ü We partner with reputable courier companies.
ü We operate globally and are open to all customer needs.
ü We supply parts that are not available on the market.
Contact: Miya zheng Email:sales@amikon.cn Phone/WhatsApp:86-18020776792
Signal Conditioner Cards, which interface to the process, are installed in Signal Conditioner Nests.
The signal conditioner cards can convert the I/O signals, isolate the I/O signals, and provide an isolated power supply from a built-in distributor.
For example, the measuring ranges of temperature and mV input signal conditioner cards can be changed by a portable BRAIN terminal. Some cards have communication functions and supply power to BRAIN Series transmitters (BRAIN UNI∆, BRAIN ADMAG and BRAIN YEWFLO).
SPECIFICATIONS
|
Model |
EA1*A |
|
Input signal |
4 to 20 mA DC signal from 2-wire transmitter (Power can be fed transmitter) |
|
Input resistance |
250 Ω |
|
External input resistance |
RL= (20 – minimum transmitter operating voltage) /0.02 Ω |
|
Allowable input voltage |
Allowable input current: 40 mA DC |
|
Transmitter power supply |
25 to 28 V DC (current limit: 25 to 35 mA) |
|
Output signal |
1 to 5 V DC, 2 outputs (output resistance: 1 Ω max. load resistance: 2 kΩ min.) |
|
Signal isolation |
Between input and output signals, input signal and power supply input |
|
Mounting method |
Mounted in special nests (connected via backboard and connector) |
|
Wiring |
External wiring: Connect M4 screw terminals for I/O in the special nest Connected I/O card: Special cable |
|
External dimensions |
73 (Width)x24 (Height)x115 (Depth) mm |
|
Weight |
70 g |
|
Power supply |
24 V DC ±10 % |
|
Maximum current consumption |
80 mA |
|
Ambient conditions |
0 to 50 °C /5 to 90 % RH (non-condensing) |
|
Effect of ambient temperature change |
Max. ±0.2 % of span for 10 °C change |
|
Effect of power supply voltage change |
Max. ±0.1 % of span for change of 24 V DC ±10 % |

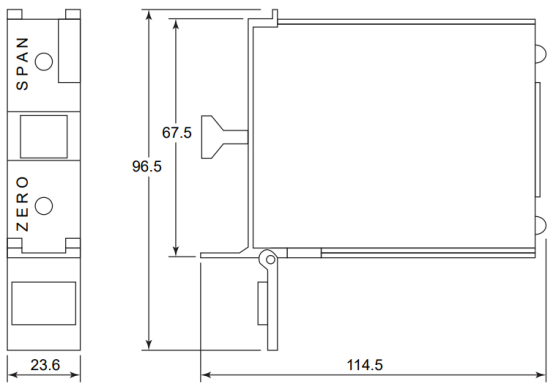

EXTERNAL DIMENSIONS
