CENTUM VP FIELD CONTROL UNIT PROCESSING
CP471-00

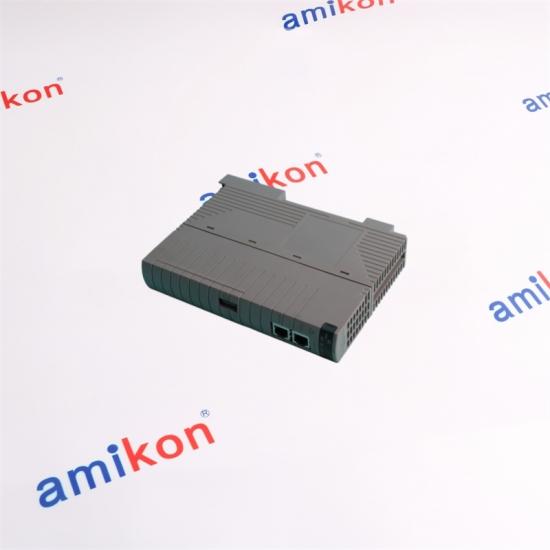

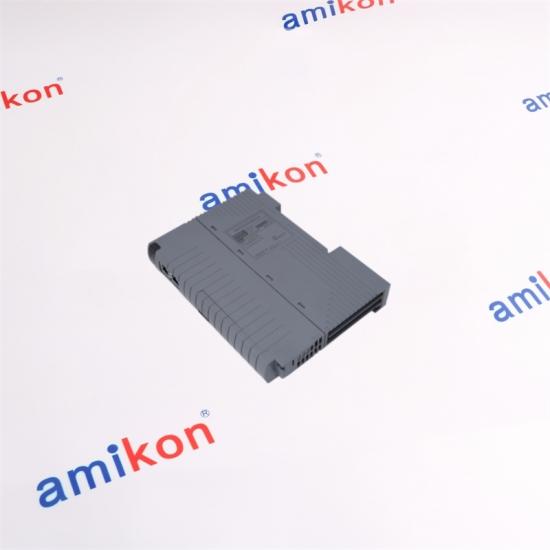

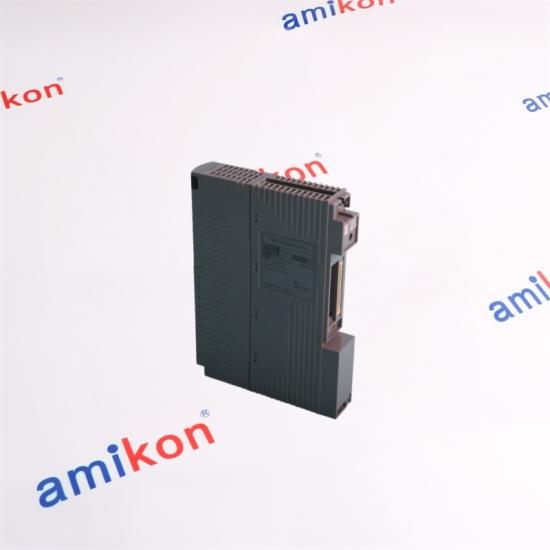

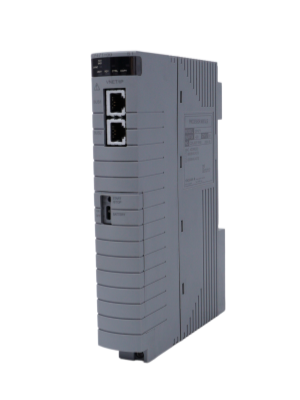

Processor Module for CENTUM Field Control Units
The Yokogawa CP471 is a processor module designed for CENTUM field control units. Two CP471 modules can be used together in a dual-redundant configuration on a duplexed field control unit, providing a processor architecture intended for continuous industrial control applications. CP471-00 is the basic, non-explosion-protected suffix combination of the CP471 family and is associated with compatible AFV30, AFV40, A2FV50 and A2FV70 field control unit configurations. |
 |
|
01
Processor Role
CP471 is the processor module used in the CENTUM field control unit architecture. It is the processing element associated with the control function of the FCU rather than a conventional standalone PLC CPU. |
02
CENTUM VP Integration
The CP471 operates with CENTUM VP Control Function for Field Control Station. For current CP471 configurations, the compatible software level is CENTUM VP R6.05 or later. |
03
Dual Redundancy
A duplexed FCU can use two CP471 modules in a dual-redundant arrangement. The two processors must use the same CP471 model family in the redundant pair. |
|
Core Technical Profile
|
Mechanical Envelope
The CP471 external dimensions are approximately 146.5 mm wide, 199.5 mm high and 32.8 mm in the narrow side dimension, with the dimensional drawing also defining the module mounting envelope and connector-side geometry.
|
Yokogawa introduced CP471 for CENTUM VP field control units with a Yokogawa-developed system LSI. The processor was developed as a key component of the FCU architecture, supporting the long-term availability approach used in CENTUM VP controller design.
|
Field Control Unit
CP471 is mounted in compatible CENTUM field control units rather than used as a general-purpose standalone processor. AFV30S / AFV30D
AFV40S / AFV40D
A2FV50S / A2FV50D
A2FV70S / A2FV70D
|
→ |
CP471 Processing Layer
The processor module executes within the CENTUM VP FCS architecture and can be duplicated in a duplexed FCU. Single CP471 → standard processor arrangement
Two CP471 → dual-redundant processor arrangement
|
→ |
ESB / I/O Side
When EC401 is used with CP471, the ESB bus coupler must be style code S3 or later. EC401 S3 or later
|
|
CP471-00 vs. CP461 in Upgrade Planning
CP471 was introduced as a processor generation for CENTUM VP field control units and can serve as a replacement path for existing CP461 configurations under defined conditions. A CP461 and CP471 cannot coexist as the two processors of the same dual-redundant pair.
A pair of CP461 modules may be replaced online by a pair of CP471 modules when the applicable conditions are satisfied.
|
Compatibility Checkpoints
|
|
PURCHASE SUPPORT
Need CP471-00 for an Existing CENTUM System?Send the part number, quantity, destination, required date and machine or system information. For CP471 applications, including redundant FCU configurations or CP461 replacement planning, the exact FCU configuration should be checked before ordering.
|
AMIKON Contact
Sales Manager: Miya Zheng
Email: sales@amikon.cn
Phone / WhatsApp: +86 18020776792
EMAIL SALES WHATSAPPService Terms
Delivery: 3–5 days | Warranty: 12 months
Packaging: Brand New
Delivery: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment: T/T
|
|
After-Delivery Care
Return / replacement terms
|
01 — Please contact AMIKON within 7 days after receiving the item if there is any issue.
02 — Returned items should remain in original condition and include the specific reason for return; a return or replacement can be arranged after the returned item is received and checked.
03 — Shipping costs generated by the return are the buyer’s responsibility.
|
|
01. Can CP471-00 be used when an existing CENTUM VP FCU still uses CP461?
CP471 was designed as a processor generation that can replace CP461 in defined CENTUM configurations. However, CP461 and CP471 cannot coexist as the two processors of the same dual-redundant pair. For an existing CP461 pair, the replacement procedure requires the applicable Control Function version and EC401 compatibility, and the CP461-to-CP471 replacement work is not a user-performed procedure; it must be carried out by an authorized Yokogawa service engineer.
|
|
02. What should be checked before ordering CP471-00 for a duplexed FCU?
Confirm the FCU model and suffix configuration, the CENTUM VP Control Function level, and the processor arrangement. A duplexed FCU using CP471 requires a matching CP471 processor pair for the redundant configuration. If EC401 is part of the same architecture, its style code must be S3 or later for combination with CP471.
|
|
03. Does CP471-00 have the same suffix meaning as CP471-01?
No. The first suffix position distinguishes the explosion-protection configuration: “-0” indicates no explosion protection, while “-1” indicates the explosion-protection version. The second suffix position distinguishes the basic type from the ISA Standard G3 option. Therefore CP471-00 is specifically the no-explosion-protection, basic-type combination.
|
|
04. Can CP471-00 be online-replaced during operation?
Online replacement of CP471 in a dual-redundant configuration is supported under the applicable system conditions. This is different from replacing an existing CP461 with CP471: the CP461-to-CP471 replacement requires an authorized service engineer. The exact FCU configuration and software level should therefore be verified before planning a live replacement.
|
|
05. Why does CP471-00 require attention to the EC401 style code?
CP471 is part of a CENTUM FCU architecture in which the processor and ESB bus coupling arrangement must be compatible. When EC401 is used together with CP471, the EC401 style code must be S3 or later. This makes the EC401 identification an important compatibility checkpoint when evaluating a processor replacement or FCU upgrade.
|
