Desktop Type HIS • Flat Keyboard • Independent USB Speaker
MODE: -1KEY: TYPE AFINAL: 1
MODEL ARCHITECTURE

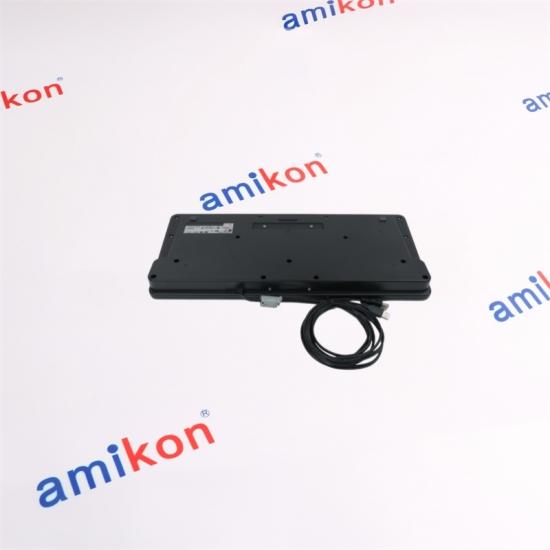

AIP830 / Single-loop Operation

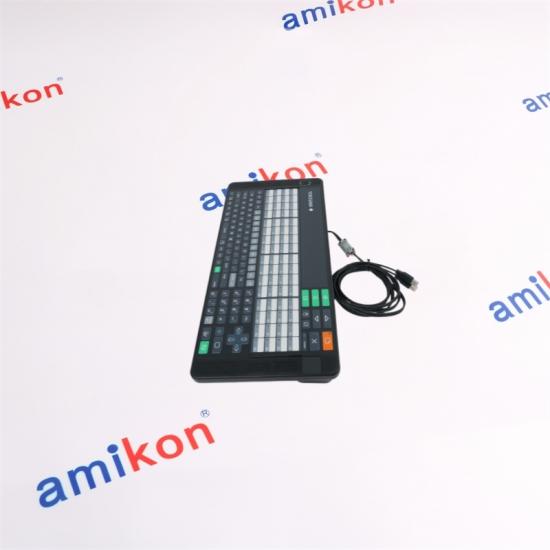

The AIP830 is a flat operation keyboard intended for single-loop operation on a Desktop Type HIS. Its layout combines alphanumeric keys, dedicated process-operation keys, window-call keys and 64 user-definable function keys.
Part Number
AIP830-101
Product Type
Operation Keyboard
Operation
Single-loop
System Position
Desktop Type HIS
⌁ ⌁ ⌁
01 / PRODUCT PROFILE
Operator Interface Architecture
AIP830-101 is configured as an AIP830 operation keyboard for single-loop operation. The hardware combines dedicated process-operation controls with general alphanumeric input and grouped window-call functions.
One AIP830 keyboard can be used per one Desktop Type HIS.
MANUFACTURER
Yokogawa
MODEL
AIP830
ORDERED CONFIGURATION
AIP830-101
KEYBOARD TYPE
Flat keyboard
SOUND FUNCTION
Independent USB speaker
USB INTERFACE
USB A × 2
POWER INPUT
5 V ±5%
MAX. CURRENT
1 A
WEIGHT
Approx. 2.0 kg
╱╲╱╲
CONTROL INTERFACE
A Layered Operator Keyboard
◈
Control Keys
Dedicated operation controls
▣
Window Calls
Grouped process windows
⌘
Data Entry
Ten keys and entry functions
◇
Function Layer
64 user-definable keys
The keyboard layout is built around both general input and process-operation controls. The 64 function keys are intended for process control and plant monitoring and can be user-defined within the host system.
KEY GROUPS
What the Layout Integrates
Mode selection
Operation confirmation
Display key
Buzzer reset
Fn key
Window calls
Ten keys
Alarm acknowledgement
Page keys
Cursor keys
Page keys can also act as volume-control keys when used with the Fn key. Cursor keys can similarly provide scroll functions with Fn.
＋ ◇ ＋
02 / TECHNICAL CORE
Interface & Electrical Structure
The AIP830 receives its operating power through the USB connection to the PC. The keyboard and sound functions use separate USB interfaces with different USB standards.
Dual USB Architecture
Keyboard function → USB 2.0 Full-speed, bus-powered Sound function → USB 1.1 Full-speed, bus-powered
Parameter
AIP830-101
Interface connectors
USB A type × 2
Keyboard USB
USB 2.0, Full-speed, Bus-powered
Sound USB
USB 1.1, Full-speed, Bus-powered
Input voltage
5 V ±5%, supplied from PC USB port
Maximum consumption
1 A
Chassis color
Black, equivalent to Munsell No. N1.5
Installation category
IEC 61010-1 Class I
╱ ╲ ╱
ENVIRONMENTAL RANGE
Operating Conditions
NORMAL OPERATION
5 to 40 °C
STORAGE / TRANSPORT
-20 to 60 °C
AMBIENT HUMIDITY
20–80 %RH
CONDENSATION
Non-condensing
MECHANICAL FORM
Compact Operator Surface
Overall height 225 mm
Width with VESA arrangement 138.7 mm
Depth with VESA arrangement 159.6 mm
Keyboard cable 2300 ± 100 mm
Weight without VESA Approx. 2.0 kg
Weight with VESA Approx. 2.5 kg
When a VESA bracket is used, the mounting structure is specified for a load of at least 10 kg.
◇ ＋ ◇
03 / SAME SERIES
AIP830 Configuration Logic
AIP830 uses a three-position suffix structure. The first position determines the mode-selection-switch configuration, the second determines the operation-confirmation key type, and the final position is fixed at 1.
MODEL
AIP830
POSITION 1
-1
Mode selection switch
POSITION 2
0
Operation confirmation Type A
POSITION 3
1
Always 1
AIP830-101 = AIP830 + -1 + 0 + 1 This configuration provides the mode selection switch and Type A operation confirmation key.
AIP830-101 Mode selection switch + Type A confirmation key
AIP830-111 Mode selection switch + Type B confirmation key
AIP830-001 Without mode selection switch + Type A confirmation key
AIP830-011 Without mode selection switch + Type B confirmation key
Optional mounting relationship
The /VESA option adds a VESA bracket. The official AIP830 specification also lists /EIM for an English instruction manual and /JIM for a Japanese instruction manual. These are option codes separate from the AIP830-101 base suffix configuration.
SYSTEM RELATIONSHIP
Desktop Type HIS Operator Layer
01
Operator
02
AIP830
03
USB
04
Desktop HIS
Both USB connectors must always be connected directly to a computer. One USB connection serves the operation keyboard function and the other serves the sound function.
FUNCTIONAL DETAILS
Built-in Sound Function
AIP830 incorporates an independent USB speaker in addition to the buzzer function. The keyboard therefore has separate hardware paths for operation input and sound.
For an AIP830-101 inquiry, please provide the exact model, required quantity, destination and required date. If the keyboard is replacing an existing AIP830, the existing suffix configuration can also help confirm the requested version.
Does AIP830-101 specifically include the mode selection switch?
Yes. In the AIP830 suffix structure, the first suffix position “-1” specifies the version with a mode selection switch. The second position “0” specifies the Type A operation confirmation key, while the final “1” is fixed.
Why does AIP830-101 require two USB connections?
The two USB-A connections serve different functions. The operation keyboard uses USB 2.0 Full-speed and the sound function uses USB 1.1 Full-speed. Both connectors are specified to be connected directly to the computer.
What should be checked when replacing an existing AIP830-101?
The complete AIP830 suffix configuration should be checked, especially the mode-selection-switch position and operation-confirmation-key type. If the existing keyboard has a VESA mounting arrangement, the mounting option should also be considered separately.
Can AIP830-101 be treated as interchangeable with every AIP830 version?
The suffix configuration should be matched rather than assuming all AIP830 versions are identical. For example, AIP830-101 has a mode selection switch and Type A confirmation key, while other suffix combinations can use different switch or confirmation-key configurations.
Is AIP830-101 suitable for a Desktop Type HIS with a VESA mounting arrangement?
The AIP830 supports a separate /VESA option for the VESA bracket. Therefore, when replacing an AIP830-101 in an existing VESA-mounted installation, the required mounting option should be confirmed separately rather than assuming it is included in the base AIP830-101 suffix.
