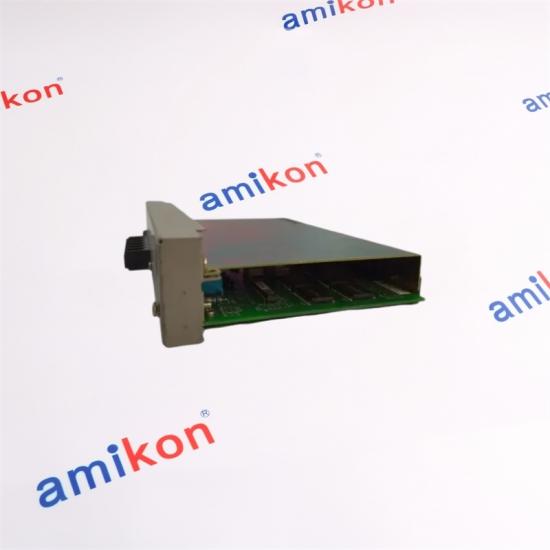

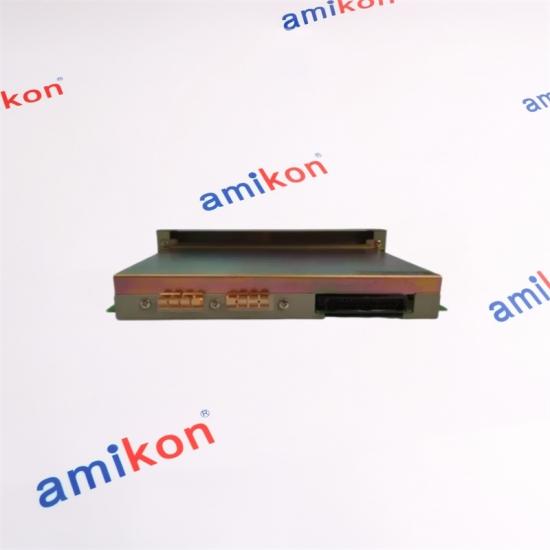

YOKOGAWA COMMUNICATION MODULE
ACM12-S1
RS-422 / RS-485 Serial Communication Interface
The ACM12-S1 is a Yokogawa communication module designed for serial communication through RS-422 or RS-485 interfaces. Its configurable communication characteristics allow the connected equipment to be matched through selectable transmission speed, character length, stop bits and parity.
|
|
01 / PRODUCT PROFILE
Serial Communication
Built for Integration ACM12-S1 provides a dedicated serial communication interface for equipment requiring RS-422 or RS-485 connectivity. The interface supports half-duplex operation and start-stop synchronization, providing a configurable serial path for industrial equipment and control-system communication.
INTERFACE CHARACTER
One communication port supports RS-422 or RS-485 operation. The communication mode is half-duplex, with start-stop synchronization and configurable serial parameters.
|
|
|
02 / COMMUNICATION ARCHITECTURE
One Module · Two Serial Paths
Designed around configurable serial communication requirements.
|
|
|
PATH A
RS-422
The RS-422 interface is suited to point-to-point serial communication. The ACM12-S1 can be configured with the serial characteristics required by the connected equipment.
Point-to-Point Half-Duplex
|
PATH B
RS-485
The RS-485 interface supports multipoint serial communication and is suited to applications where multiple devices share a serial communication segment.
Multipoint Half-Duplex
|
| Transmission Code | ASCII / Binary | Parity | None / Odd / Even |
| Synchronization | Start-stop | Stop Bits | 1 / 2 |
| Interface | 1 Serial Port | Mode | Half-Duplex |
|
03 / SYSTEM RELATION
Communication
Module Family ACM12-S1 belongs to the serial communication side of the Yokogawa communication-module architecture. Its role is different from general-purpose communication cards and from fieldbus-specific interfaces.
|
|
| ◆ | When replacing an existing communication module, confirm the communication interface, nest compatibility, wiring arrangement and serial settings before installation. ACM12-S1 should not be treated as an interchangeable substitute for modules using a different physical interface or communication architecture. |
|
04 / PROCUREMENT SUPPORT
ACM12-S1
Replacement & Inquiry For replacement planning, compatibility checking or quantity inquiries, send the exact model and required quantity. Our team can coordinate the next step according to your application and delivery requirement.
|
|
||||
|
Can ACM12-S1 be used when the existing system requires RS-485 multipoint communication?
Yes. ACM12-S1 supports RS-485 operation and is suitable for multipoint serial communication. The complete installation should still be checked against the existing wiring arrangement and serial settings.
|
Can ACM12-S1 match equipment using different serial transmission speeds?
The module supports selectable communication speeds from 1200 to 19200 bps. The connected equipment must use compatible communication parameters for reliable communication.
|
|
Does ACM12-S1 support both ASCII and binary transmission?
Yes. ACM12-S1 supports ASCII and binary transmission codes. The selected transmission format should correspond with the connected device configuration.
|
What should be checked before replacing ACM12-S1?
Check the communication interface, module-nest compatibility, connector and wiring arrangement, communication speed, character length, stop bits and parity settings before installation.
|
|
Is ACM12-S1 suitable for long serial communication runs?
The stated maximum total cable length is up to 1200 m for the supported serial communication arrangement. Actual installation performance depends on the connected equipment, cable construction, termination and overall network arrangement.
|
|
|
