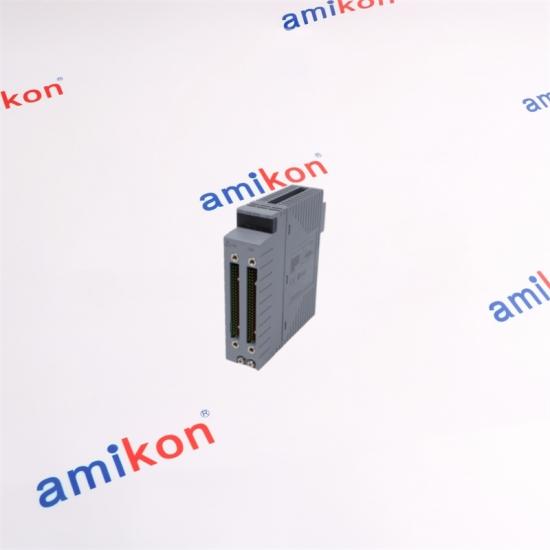

YOKOGAWA / ST6-COMPATIBLE DIGITAL I/O
ADV169-PK0
64-Channel Digital Input Module
Isolated input architecture · common minus side every 16 channels
ADV169-PK0 is a digital input module for compatible ST6 architecture. It accepts contact or voltage status signals and provides a 64-channel input structure with signal isolation grouped by every 16 channels. |
INPUT CAPACITY
64
digital input channels
Status input response
8 ms
ST6-compatible architecture
Common minus side arranged every 16 channels.
|
| Model | ADV169-PK0 | Module Type | Digital Input Module for compatible ST6 |
| Input Channels | 64 | Signal Isolation | Common on minus side for every 16 channels |
| Contact Input | OFF: 100 kΩ or more; ON: 200 Ω or lower | Voltage Input | OFF: 4.5–25 V DC; ON: ±1 V DC with 200 Ω or lower |
| Input Contact Rating | 5 V DC, 20 mA or higher | Status Input Response | 8 ms |
| Connection | KS9 / KS10 cable family for the PK variant | Weight | Approx. 0.56 kg for the PK variant |
The module is designed for contact or voltage status input. Its isolation arrangement groups 16 channels around a common minus side, providing a structured channel grouping for ST6-compatible digital input applications.
|
ADV869
ST5-compatible digital I/O
32-channel input + 32-channel output architecture with common minus side every 16 channels. |
ADV169-PK0
ST6-compatible digital input
64-channel input architecture with common minus side every 16 channels. |
ADV569
ST7-compatible digital output
64-channel output architecture with common minus side every 16 channels. |
Choose ADV169-PK0 when the application needs the ST6-compatible digital input position rather than a mixed I/O or output-only position. The 64-channel capacity and 16-channel common-minus grouping make its electrical architecture distinct from ADV869 and ADV569.
|
AMIKON'S LARGE STOCK
The core of our supply.
|
MORE THAN 400,000 ELECTRONIC PRODUCTS
PLC, HMI, drives, servo and CNC devices, IPC, PG and many other industrial products are included across the stock range. Strategic purchasing is driven by market conditions, technology development and customer demand. |
KEEP PRODUCTION MOVING
When stock is temporarily unavailable, our preferred supplier network is searched for the required part.
|
|
AMIKON SALES SUPPORT
Looking for ADV169-PK0?
Share the required quantity, destination and target date. If the module is part of an ST6 or RIO upgrade, include the application context so the correct variant can be checked. |
Miya Zheng
Sales Manager
EMAIL: sales@amikon.cn WHATSAPP: +86 180 2077 6792 |
| Delivery 3–5 days |
Warranty 12 months |
Packaging Brand New |
Shipping FedEx / EMS / TNT / DHL / UPS |
Payment T/T |
|
1. Is ADV169-PK0 really a 64-channel input module when used in a RIO upgrade?
The ADV169 hardware is a 64-channel digital input module. However, when ADV169 is applied to the ADM12C RIO System Upgrade, the usable input count is limited to 32. The application context therefore matters when selecting the module. |
2. What makes ADV169-PK0 different from ADV869?
ADV169 is dedicated to digital input and provides 64 input channels. ADV869 combines 32 input channels with 32 output channels, so it is a mixed-I/O choice rather than the dedicated ST6 input position. |
|
3. Does ADV169-PK0 accept both contact and voltage signals?
Yes. The input stage supports contact input as well as voltage input. The contact thresholds are specified separately from the voltage-input thresholds, so field wiring should be checked against the applicable electrical range. |
4. Why is the 16-channel common-minus arrangement important when choosing ADV169-PK0?
The input isolation is arranged with a common minus side for every 16 channels. This grouping is part of the electrical architecture and should be considered when matching field wiring and signal grouping. |
|
5. When should ADV169-PK0 be selected over ADV569?
ADV169 is the ST6-compatible digital input position, while ADV569 is the ST7-compatible digital output position. If the required field function is receiving status signals rather than driving output channels, ADV169 is the appropriate functional direction. |
|
