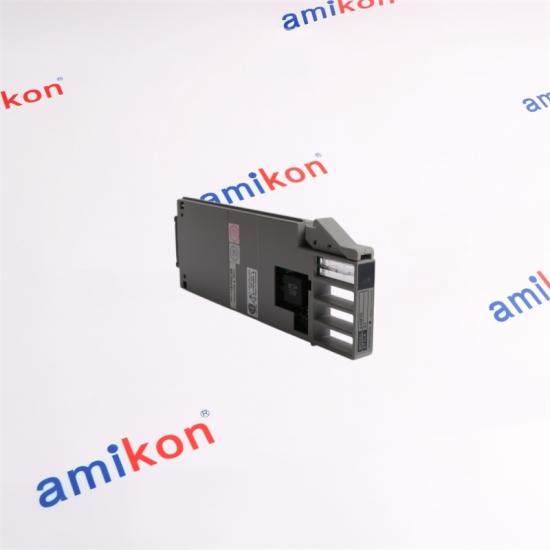

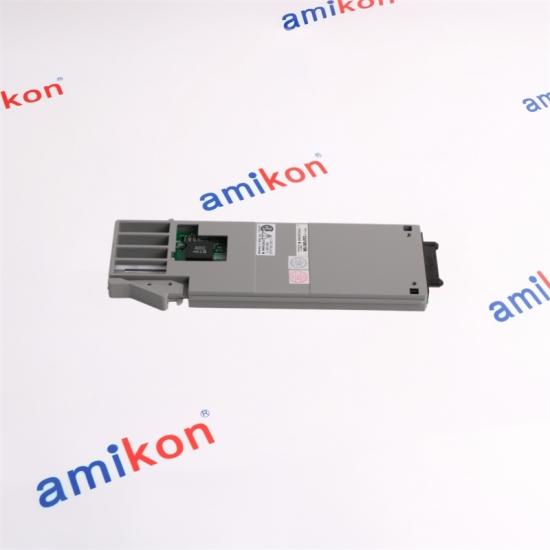

Analog Entry YOKOGAWA AAM21 is an analog I/O module for small electrical signal measurement. It accepts mV signals, thermocouples, 3-wire JPt100 or Pt100 RTDs, and 3-wire potentiometers. The module is installed in the AMN11 nest for analog I/O modules and connects to the nest terminals with M4 screws. |
|
|
mV INPUT
-50 to 150 mV
Accuracy: ±20 μV
|
RTD INPUT
0 to 333 Ω
Accuracy: ±0.08 Ω
|
POTENTIOMETER
0 to 30 kΩ
Accuracy: ±0.2%
|
INPUT RESISTANCE
1 MΩ
At power-up; 3 kΩ at power-down
|
|
|
||||||||||||||||||||
AAM21 belongs to the analog I/O module family used with the RIO architecture. Its function is centered on low-level process measurement rather than standard current/voltage transmitter input. This distinction is important when selecting the correct module for a signal type.
|
AAM21
mV / TC / RTD / Potentiometer
Designed for low-level electrical measurement, temperature sensing and resistance-based input. |
AAM11
Current / Voltage Input
Used for 4–20 mA and voltage transmitter signals; it serves a different input class from AAM21. |
AAM50
Current Output
An output module for 4–20 mA signals, intended for signal generation rather than field measurement. |
AAM51
Current / Voltage Output
Provides analog output functions including 4–20 mA and 0–10 V DC. |
|
03 / DIRECT SUPPORT
Request AAM21
For AAM21 inquiries, please provide the part number, required quantity, destination, required date and machine/system application. This helps us respond with a focused quotation and delivery arrangement. |
| Delivery 3–5 Days |
Warranty 12 Months |
Packaging Brand New |
Payment T/T |
Shipping DHL / UPS / FedEx / TNT / EMS |
| 01 |
Can AAM21 replace a standard 4–20 mA input module?
AAM21 is intended for mV, thermocouple, RTD and potentiometer signals. It should not be treated as a direct substitute for the AAM11/AAM11B current-voltage input class when the field device provides a standard 4–20 mA signal.
|
| 02 |
Is AAM21 suitable when one application mixes thermocouple and RTD measurements?
The AAM21 input family covers both thermocouple and 3-wire JPt100/Pt100 RTD measurement. The required input signal and range are selected by software configuration, so the actual field wiring and configured channel function should be checked before installation.
|
| 03 |
What should be checked when selecting AAM21 for a potentiometer application?
AAM21 supports a 3-wire potentiometer with a total resistance of 100 to 2000 Ω for guaranteed input conversion, with the span at 50% or more of the total resistance. The total resistance can be combined up to 30 kΩ.
|
| 04 |
Does AAM21 require an additional temperature-compensation arrangement for thermocouples?
When AAM21/AAM21J is used for thermocouple input, the specified temperature compensation module is ordered for each channel. This is an important selection point for thermocouple-based applications.
|
| 05 |
What installation detail should be confirmed before ordering AAM21?
AAM21 is installed in the AMN11 nest for analog I/O modules and connects to the nest terminals using M4 screws. Signal selection and range are configured by software, while the system arrangement should be checked for the intended analog I/O nest configuration.
|
