YOKOGAWA • ANALOG I/O
AAI841-S50

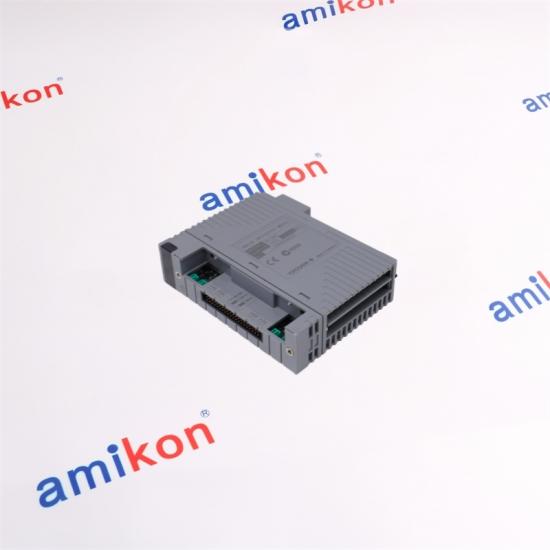

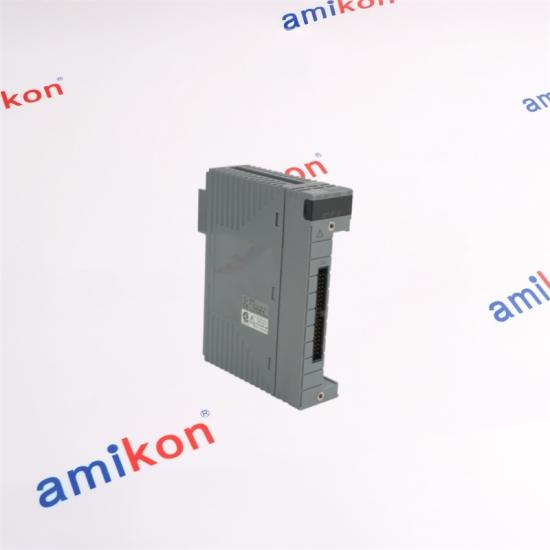

8-Channel Analog I/O Module
4–20 mA signal architecture for compact analog I/O integration
The AAI841 is an analog I/O module providing eight channels of 4–20 mA input and eight channels of 4–20 mA output in a non-isolated configuration. Its channel structure is intended for process control applications where analog signal acquisition and analog output are handled within the same I/O module.
|
SIGNAL CORE
Non-isolated analog I/O configuration
|
|
Analog Input
4–20 mA current input path
The AAI841 provides eight analog input channels for 4–20 mA signals. The module can accommodate process measurement loops where current signals are brought into the control system for monitoring, calculation, indication or control functions.
CHANNEL CAPACITY
8 INPUT
|
I/O
MODULE |
Analog Output
4–20 mA current output path
Eight analog output channels provide 4–20 mA current signals for process-side devices. The output side is suitable for control loops and analog signal transmission where a current output is required.
CHANNEL CAPACITY
8 OUTPUT
|
|
MODULE TYPE
Analog I/O
|
INPUT
4–20 mA × 8
|
OUTPUT
4–20 mA × 8
|
ISOLATION
Non-Isolated
|
| AAI841 | 8-channel analog I/O module using 4–20 mA input and 4–20 mA output, with non-isolated channels. |
| AAI141 | 16-channel analog input module for 4–20 mA signals in a non-isolated configuration. |
| AAI143 | Analog input family member using 4–20 mA input signals; channel configuration differs from the combined I/O structure of AAI841. |
| AAI543 | 16-channel isolated 4–20 mA analog output module, intended for applications where output-channel isolation is required. |
|
AMIKON INDUSTRIAL AUTOMATION
Need an AAI841-S50 replacement?
Send the part number, quantity, destination and required date. Our sales team can check availability, configuration and replacement requirements for your application.
|
Miya Zheng • sales@amikon.cn • +86 180 2077 6792
|
| 01 |
Can AAI841-S50 replace an AAI841 module in an existing I/O configuration?
A replacement should be checked against the complete existing configuration, including host system compatibility, terminal arrangement, channel assignment and the exact suffix code. Matching only the base model name is not sufficient for a controlled replacement decision.
|
| 02 |
Is AAI841-S50 suitable when both analog input and analog output are required?
Yes. The AAI841 family is structured as an 8-channel input / 8-channel output analog I/O module, with 4–20 mA input and 4–20 mA output. This combined architecture is useful where both signal directions are required within the same module.
|
| 03 |
What should be checked before ordering AAI841-S50 for a 4–20 mA loop?
Confirm whether the existing loop requires input or output operation, verify the channel assignment and wiring arrangement, and check the module's non-isolated architecture against the plant's signal design.
|
| 04 |
When is AAI841-S50 different from an isolated analog module?
AAI841 is a non-isolated analog I/O design. If the application requires electrical isolation between channels or between field circuits and the I/O electronics, an isolated module from the appropriate Yokogawa family should be evaluated instead.
|
| 05 |
What details should be included when requesting AAI841-S50 for replacement?
Provide the exact part number, quantity, existing system or module position, required delivery date and destination. If possible, include the current module suffix and terminal arrangement so the replacement can be checked against the application.
|
|
SERVICE POLICY
Return / Replacement
|
Please contact us within 7 days if you have any question after you receiving the items.
The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns. The buyer is responsible for all the shipping cost incurred. |
