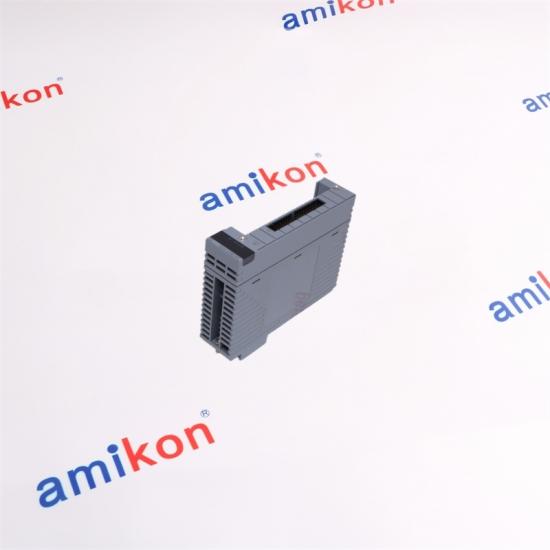

YOKOGAWA AAI841-H50 ANALOG I/O MODULE

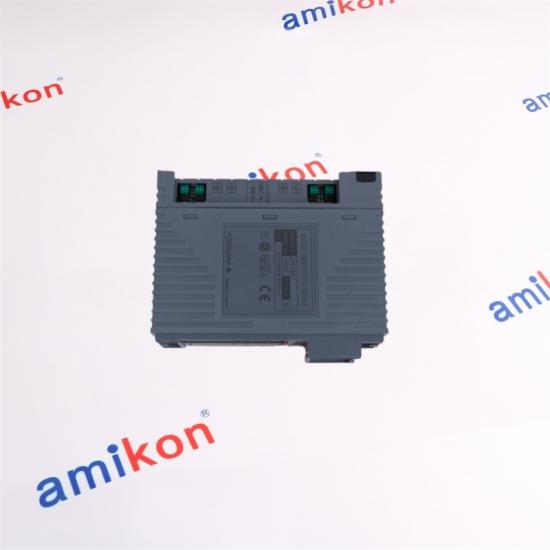

YOKOGAWA AAI841-H50

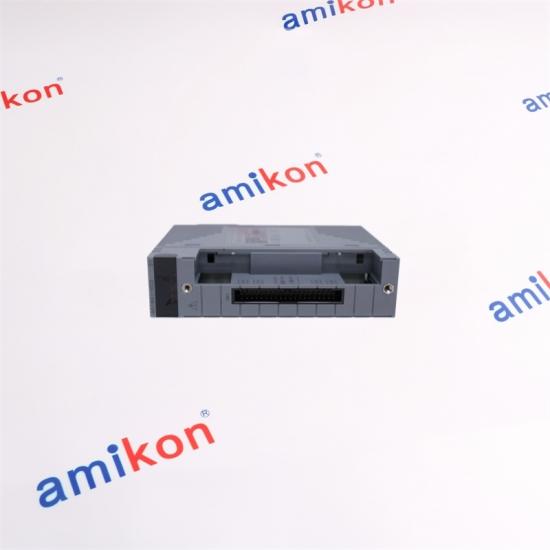

YOKOGAWA AAI841-H50
YOKOGAWA AAI841-H50

YOKOGAWA AAI841-H50 ANALOG I/O MODULE

Calculate shipping
Quotation Request










YOKOGAWA · FIO · HART
AAI841-H50
Analog I/O module combining current input and current output channels with HART digital communication.
HART ENABLED
Digital communication over the analog signal architecture
ANALOG I/O MATRIX
INPUT
8 × 4–20 mA
OUTPUT
8 × 4–20 mA
DIGITAL COMMUNICATION
HART protocol
The AAI841-H configuration provides HART communication while retaining the 4–20 mA analog input/output structure.
AMIKON DIRECT SALES
Miya zheng
Sales Manager
EMAIL SALES WHATSAPP





YOKOGAWA · FIO ANALOG I/O · HART COMMUNICATION

MODULE
SERIES
FIO
ANALOG I/O MODULE
AAI841-H50
Eight-channel analog input and eight-channel analog output architecture for 4–20 mA process signals, with HART digital communication.
MODEL MARKING
AAI841
Analog I/O
-H
HART communication
50
No explosion protection / basic type
01
8 AI + 8 AO		 02
4–20 mA		 03
HART		 04
NON-ISOLATED
✉ EMAIL
sales@amikon.cn 		◇ PHONE / WHATSAPP
86-18020776792 		◆ SALES MANAGER
Miya Zheng







01 / MODULE PROFILE

Built around
mixed analog loops.

AAI841-H50 is an analog I/O module for Yokogawa FIO architecture. The module provides eight analog input channels and eight analog output channels, using 4–20 mA signals and a non-isolated channel structure.

The H suffix adds digital communication using the HART protocol, making the module suitable where analog process loops and digital device communication are required together.
CORE ARCHITECTURE
8 INPUT / 8 OUTPUT
INPUT
4–20 mA		 OUTPUT
4–20 mA
UPDATE
10 ms		 WEIGHT
Approx. 0.3 kg






841
TECHNICAL BLUEPRINT
AAI841-H50 / CORE DATA

CHANNEL STRUCTURE
8 + 8
8-channel input / 8-channel output
SIGNAL RANGE
4–20 mA
Input and output current signal
COMMUNICATION
HART
Digital communication function
Parameter Specification Engineering relevance
I/O signal Input 4–20 mA / Output 4–20 mA Designed for standard current-loop process signals
Allowable input current 25 mA Defines the allowable input-current level
Input accuracy ±16 μA Relevant to analog signal acquisition
Output accuracy ±48 μA Relevant to analog control output
Data update period 10 ms Supports periodic process-value updating
Input step response 100 ms Input dynamic response characteristic
Output step response 40 ms Output dynamic response characteristic
Transmitter power supply 14.8 V or higher at 20 mA; 26.4 V or less at 0 mA Important when checking 2-wire transmitter loop conditions
Transmitter selection 2-wire or 4-wire, per channel by setting pin Allows channel-level transmitter configuration
Temperature drift ±0.1% / 10°C Relevant when evaluating temperature variation
Current consumption 310 mA at 5 V DC; 500 mA at 24 V DC Useful for cabinet power-budget checking
Weight Approx. 0.3 kg Compact FIO module format
External connection Pressure clamp terminal, KS cable or MIL connector cable Connection selection depends on the terminal arrangement





02 / ENGINEERING DETAILS
Configuration Points That Matter

HART FUNCTION

The -H suffix denotes the HART communication version of the AAI841 analog I/O module.

2 / 4-WIRE

The transmitter connection type can be selected for each channel by setting pin.

NON-ISOLATED

AAI841 belongs to the non-isolated analog I/O group, so system wiring conditions must be checked before replacement.

HARDWARE MATCH

When replacing a module, verify the complete model and the associated terminal connection arrangement.






03 / SAME FAMILY
AAI841 Series Architecture


The AAI841 family uses the same eight-input/eight-output, 4–20 mA, non-isolated analog I/O architecture. The suffix configuration determines communication and environmental options, while option codes can specify the terminal connection arrangement.

AAI841-S50
Standard type
AAI841-H50
HART communication
AAI841-S53
G3 / wider temperature option
AAI841-H53
HART + G3 / wider temperature option
/K4A00 KS cable interface adapter arrangement
/A4S00 Pressure clamp terminal block arrangement
/A4S10 Pressure clamp terminal block with surge absorber
/A4D00 Dual pressure clamp terminal block arrangement
/A4D10 Dual pressure clamp terminal block with surge absorber
/CCC01 Connector cover for MIL cable arrangement







04 / DIRECT CONTACT
AAI841-H50 — Request a Quote
Send the complete part number and your application details so the required configuration can be checked before quotation.
✉ EMAIL
sales@amikon.cn 		◇ PHONE / WHATSAPP
86-18020776792 		◆ SALES MANAGER
Miya Zheng
DELIVERY
3–5 Days		 WARRANTY
12 Months		 PACKAGING
Brand New		 PAYMENT
T/T		 DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
For a faster quotation, please provide:
Part Number Quantity Destination Required Date Machine / System







05 / BUYER QUESTIONS
AAI841-H50 FAQ

Q1 · Does AAI841-H50 provide both analog I/O and HART communication?
Yes. AAI841 provides eight 4–20 mA input channels and eight 4–20 mA output channels, and the -H suffix denotes the version with HART digital communication. The module remains a non-isolated analog I/O configuration.

Q2 · What should be checked before replacing an existing AAI841-H50?
Check the complete model code, the FIO configuration, the terminal connection arrangement, the transmitter wiring type, and whether HART communication is required. AAI841 is non-isolated, so the existing system wiring and field interface arrangement should also match.

Q3 · Can AAI841-H50 work with both 2-wire and 4-wire transmitters?
The AAI841 family provides channel-level selection for 2-wire or 4-wire transmitter connection by setting pin. For a replacement, the existing field wiring should be checked against the required channel configuration before installation.

Q4 · Is AAI841-H50 the same hardware configuration as AAI841-H53?
No. Both belong to the AAI841 family, but the suffixes represent different configurations. H50 is the HART version with no explosion protection and the basic type, while H53 adds the ISA Standard G3 option and the wider temperature option. The complete suffix should therefore be checked when selecting a replacement.

Q5 · What terminal arrangement should be confirmed when ordering AAI841-H50?
The base AAI841-H50 can be paired with different connection arrangements through option codes such as /K4A00, /A4S00, /A4S10, /A4D00, /A4D10 and /CCC01. If the existing installation uses a specific terminal board or cable interface, the complete order code should be provided for configuration matching.







06 / AMIKON SERVICE NETWORK
Parts. Speed. Industrial Continuity.

Keeping industrial systems moving.

AMIKON focuses on hard-to-find automation components and practical supply support for manufacturing facilities. Our goal is to help maintenance teams shorten sourcing time, control maintenance costs, and bring equipment back into operation with less delay.

◆ Worldwide automation parts delivery ◆ Spare-parts service support
◆ Components from 100+ automation manufacturers ◆ Global sales of millions of parts
Find the part. Move the project.

Whether a component is difficult to source, no longer common in the market, or needed for a time-sensitive maintenance job, our team works around the required part number, quantity, destination and required date.
AMIKON LIMITED
From sourcing
to delivery.

We coordinate the sourcing and delivery of industrial automation parts with an emphasis on response speed, practical communication and worldwide shipment support.





Delivery
3–5 Days		 Warranty
12 Months		 Packaging
Brand New		 Payment Term
T/T
Delivery Way: E-packing / FedEx / EMS / TNT / DHL / UPS
Return / Replacement Policy: Please contact us within 7 days after receiving the items if there is any issue. Returned items should remain in their original condition and include the specific reason for return. A return or replacement can be arranged after the returned item is received. The buyer is responsible for shipping costs incurred for the return.





07 / RELATED AUTOMATION PARTS
Recommended Models

A5E03894526
3301S2
PW484-50
3DM486.6
AAI143-H50/K4A00
CR4-1/XCR41
IC200PWR101
AAI135-S50
X67SM4320
ADV151-E60/D5A00
C98043-A7600-L2
AAI841-H53
3101S2
A5E03894525
SAI143-H63/PRP
8AC126.60-1
25A-D2P3N104
F8652X
AAI841-S50
X20IF2181-2
CC-TSF901
KFD2-SR-Ex2
6ES7326-2BF10-0AB0
OTS125
AAP135-S50
ANB10D-425-CU2N
PRT-PSU-DIN-2A
IF787
VE6019
KJ4001X1-BA3
AAI143-H50/K4A00
25B-B017N104
6FC5348-0AA02-0AA0
IF791
X20SM1436
AP-PSBIAS-2P3-ATR
VI702
PR6423-10R-010
F8621A
IC660BBD021
DM486
3IF791.9
PR6422-013-041
AAI841-H50
C98043-A7600-L1
IC200PWR002
CC-SCMB05
TMC50-HD
AAP135-S50
AAI841-H53
8AC122.60-1
LV-S62
SS-11RS10MM-A
CDUK20-25D
