COMMAND
4-20
mA INPUT
|
GS10 VALVE DRIVER / CLOSED-LOOP CONTROL

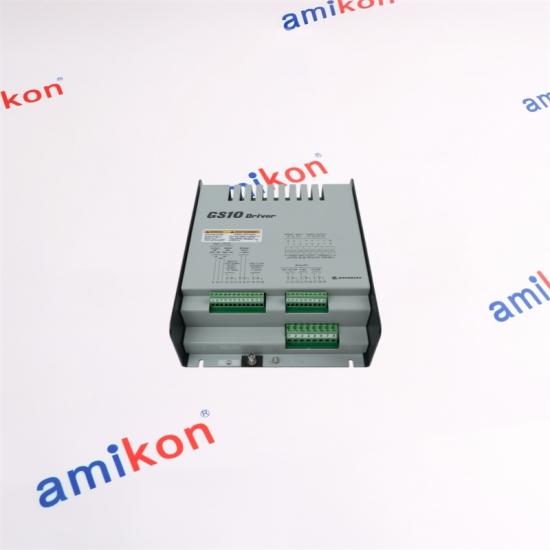

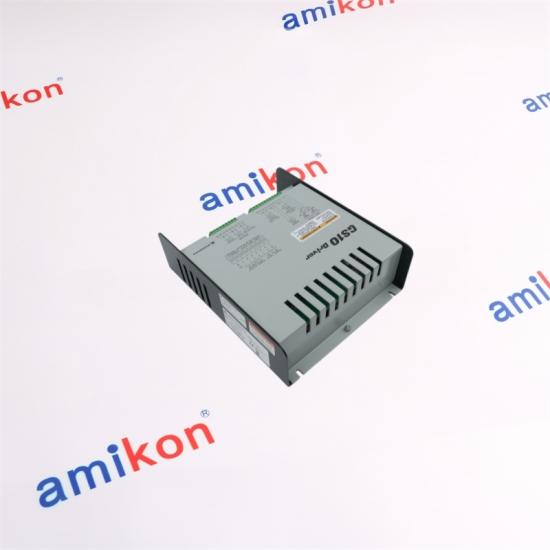

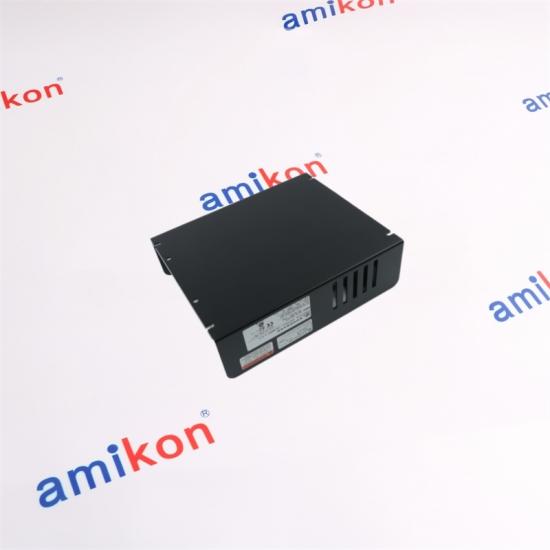

Woodward 9907-186Valve driver control unit for turbine fuel-metering service, combining command processing, matched-valve regulation, position feedback and protection interfaces. |
FEEDBACK
4-20
mA POSITION
FAULT / RESET
|
| Manufacturer | Woodward |
| Part number | 9907-186 |
| Product type | GS10 valve driver control unit |
| Application | Turbine fuel-metering valve control |
| Command signal | 4-20 mA |
| Supply range | 18-32 V DC |
|
SYSTEM
|
The driver converts the control-system demand into regulated valve actuation. A closed signal path uses the command input and valve position feedback, while discrete shutdown/reset and fault contacts integrate the driver with the protective control sequence. |
| Power input | 18-32 V DC |
| Command input | 4-20 mA |
| Position feedback | 4-20 mA |
| Discrete input | Shutdown / reset contact |
| Discrete output | Driver fault contact |
| Maximum valve cable | 60 m |
| Controlled device | Matched GS10 fuel-metering valve |
| Commissioning focus | Grounding, calibration and controlled stroke |
|
Supervisory control
Produces 4-20 mA valve demand
|
Driver stage
9907-186 regulates valve current and position
|
Feedback path
Valve position returns as 4-20 mA
|
Protection path
Shutdown/reset input and driver-fault output
|
| 9907-186 | This page: GS10 valve driver |
| GS10 valve assembly | Must match the installed driver and fuel-metering arrangement |
| 9907-135 variants | Related GS/LQ driver family; not a direct substitute |
| Valve cable assembly | Length, shield, grounding and pinout must match |
