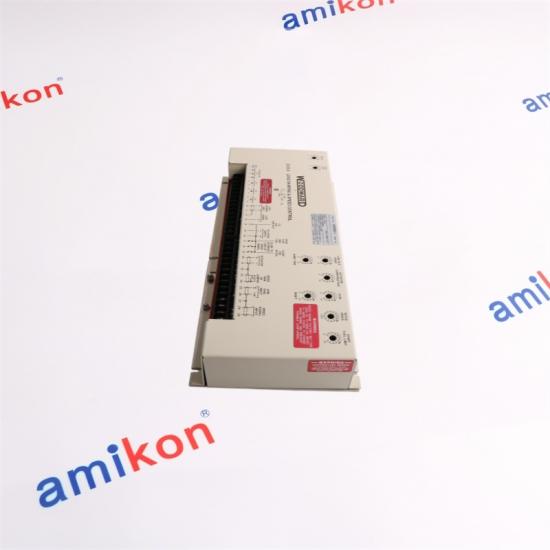

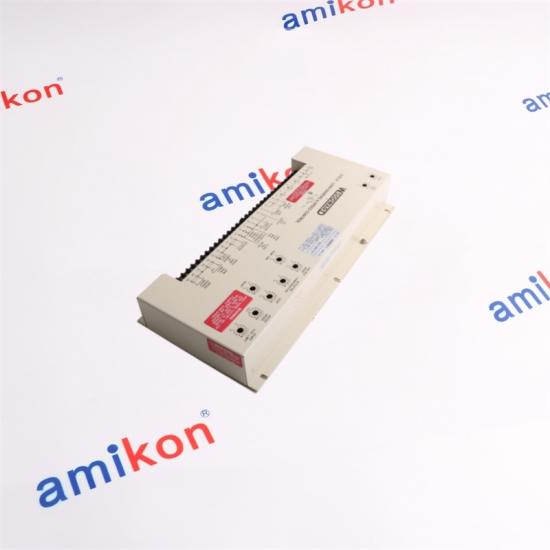

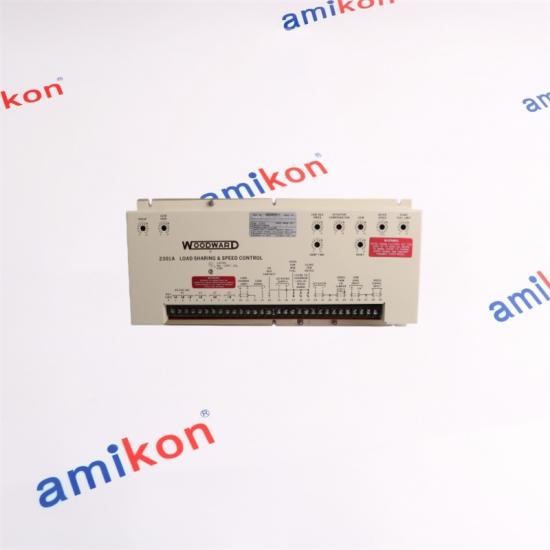

20–40 Vdc
POWER INPUT
|
0–200 mA
ACTUATOR CURRENT
|
REVERSE
ACTING
|
SINGLE
ACTUATOR
|
NO
DECEL RAMP
|
|
01 · CONSTANT SPEED
Isochronous Mode
Used where constant prime-mover speed is required, including single-unit operation and isolated-bus systems using compatible load-sharing controls.
|
02 · LOAD DEPENDENT
Droop Mode
Used when prime-mover speed is controlled as a function of load, including infinite-bus operation and parallel operation of two or more prime movers.
|
| Power Supply | 20–40 Vdc |
| Power Consumption | ≤15 W nominal |
| Actuator Current | 0–200 mA |
| Control Action | Reverse Acting |
| Actuator Configuration | Single |
| Deceleration Ramp | No |
| Load Sensing | 90–240 Vac, 3-phase, 45–66 Hz |
| Speed Sensor | Magnetic pickup, 1.0 Vac minimum to 30 Vac maximum |
| Speed Sensor Input Impedance | 100–300 Ω |
| Load Sharing Signal | 0–6 Vdc |
| Speed Trim | 0–100 Ω for 0–10% speed change |
| Droop Adjustment | 0–10% |
| Acceleration Ramp | 0–10 seconds, Idle to Rated |
| Low Idle Speed | 55% of rated speed |
| Operating Temperature | –40 to +85 °C |
| Vibration | 4 G, 5–500 Hz |
| Shock | 60 G |
| Approximate Weight | 1.8 kg (4 lb) |
|
500–1500 Hz
RANGE 1
|
1000–3000 Hz
RANGE 2
|
2000–6000 Hz
FACTORY STANDARD
|
4000–12000 Hz
RANGE 4
|
|
01
Diesel Engines
|
02
Gasoline Engines
|
03
Steam Turbines
|
04
Gas Turbines
|

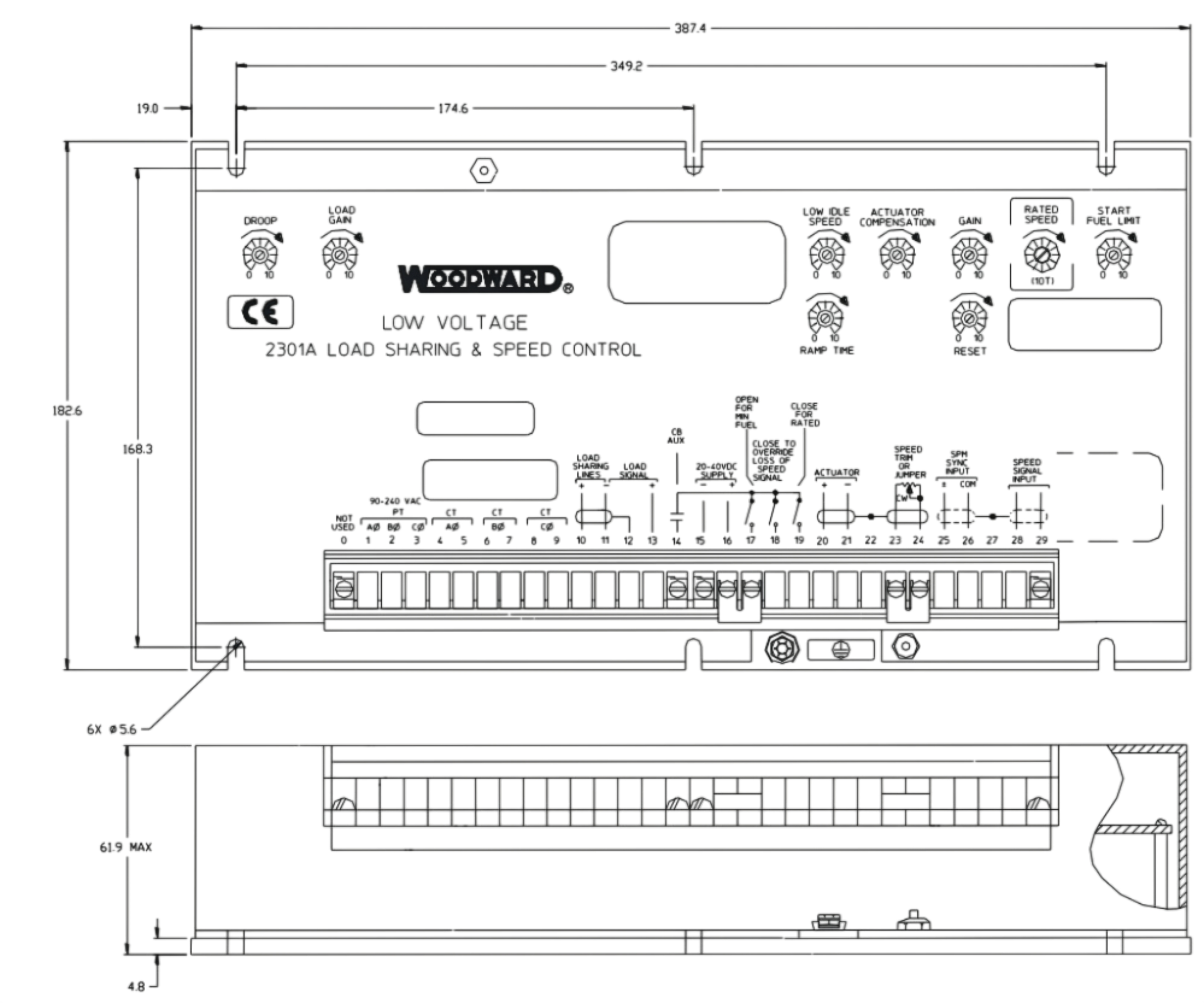

| Install in a closed electrical operating area or industrial control cabinet. | Provide adequate ventilation and service clearance. |
| Protect the control from water and condensation. | Locate away from high-current or high-voltage EMI sources. |
| Avoid locations with excessive vibration. | Do not mount the control directly on the engine. |
|
FAST RESPONSE
Welcome
to Inquire |
Need Woodward 9905-021? Contact our sales team for availability, lead time and quotation.
Millions of Industrial Parts • Fast Delivery • Attentive Customer Service • Meeting All Your Supply Chain Needs
|
| 5463-473 | 5464-414 | 5464-544 | 5463-581 | 5464-013 |
| 5464-211 | 5417-028 | 5501-380 | 5417-175 | 5417-040 |
| 5453-203 | 5437-672 | 5464-210 | 5466-353 | 5466-355 |
| 5461-655 | 5461-648 | 5461-644 | 5462-718 | 5462-757 |
| 5462-948 | 5462-408 | 5500-577 | 5462-916 | 5462-758B |
| 5461-650 | 5462-744 | 9907-164 | 8271-467 | 9905-068 2301A |
|
Need Woodward 9905-021?
Low-Voltage 2301A · 0–200 mA · Reverse Acting · Single Actuator
