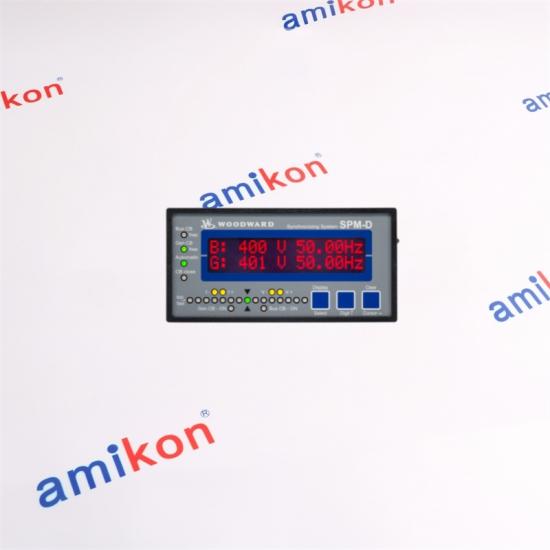

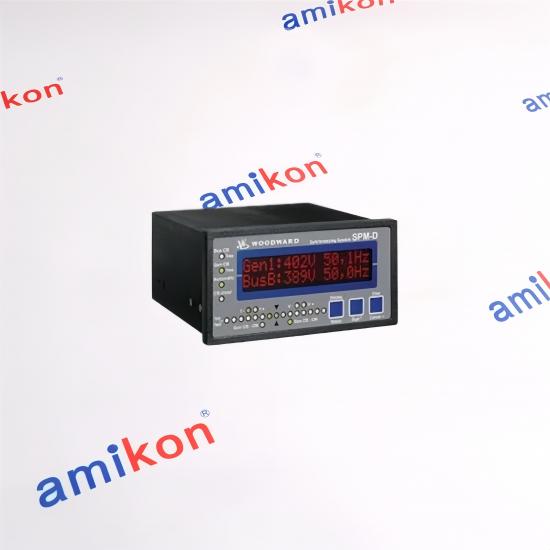

WOODWARD / SPM-D2 SYNCHRONIZING PLATFORM
8440-2167
SPM-D2-1010B/YB Synchronizing Unit
The Woodward 8440-2167 is the SPM-D2-1010B/YB version of the SPM-D2 synchronizing unit. It is a three-phase synchronizing device designed to coordinate two electrical systems and can perform synchronization, synch-check and dead-bus start functions when the applicable control inputs and functions are enabled. The 8440-2167 configuration uses the 100 Vac measuring-input version, flush mounting and the YB package with a nominal 24 Vdc control supply. It is particularly relevant when an existing generator synchronization arrangement needs a like-for-like SPM-D2 configuration rather than a generic synchronizer. |
|
||||||||||
|
Product Overview
SPM-D2 is a microprocessor-based synchronizing platform for generator and mains applications. The 8440-2167 version belongs to the SPM-D2-10 family and combines voltage measurement of the 100 Vac class, a 24 Vdc YB power arrangement and flush-mounted housing. During synchronization, the controller evaluates the relationship between the two monitored electrical systems and can regulate generator frequency and voltage through its control outputs before issuing the circuit-breaker closing command. The unit also incorporates logic for synch-check and configurable dead-bus starting. For maintenance purchasing, the exact suffix is important: 8440-2167 is the YB package and should not be treated as interchangeable with every other SPM-D2 variant. The measuring-voltage configuration and power-supply arrangement need to match the installed system. |
Why the exact variant matters
The SPM-D2 family contains different measuring-voltage, power-supply and package configurations. The 8440-2167 designation specifically corresponds to the YB package and 100 Vac measuring version. Before replacement, verify the installed part number, system voltage arrangement, supply wiring and required functions. |
|
Core Functions
01 / Synchronization
02 / Synch-check
03 / Dead-bus start
|
Frequency & Voltage Control
Adjustable frequency and voltage controller functions can generate raise/lower relay pulses for the associated governor and voltage-control equipment. |
Breaker Logic
Synchronizing parameters include differential frequency, differential voltage, differential angle and breaker pick-up time. These values determine when a breaker close command is permitted. |
Service-Oriented Design
Flush mounting, front display/LED indication, screw-type terminals and a Mini-Type B USB interface support installation, commissioning and configuration work. |
|
Technical Specifications
|
|||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
|
Mechanical Configuration
Housing: APRANORM DIN 43 700 Dimensions: 144 × 72 × 122 mm Panel cutout: 138 [+1.0] × 68 [+0.7] mm 24 V fed weight: approximately 600 g Front protection: IP42; IP54 with gasket; rear: IP20 |
Installation-Relevant Details
|
|
01 — Frequency
The frequency controller can issue raise/lower pulses. The adjustable minimum relay-on time is 10–250 ms. |
02 — Voltage
Voltage control can issue higher/lower pulses, with adjustable minimum relay-on time of 20–250 ms. |
03 — Synchronizing
Permissible differential frequency, voltage and phase-angle limits are evaluated before a close command is issued. |
04 — Dead Bus
Configurable dead-bus conditions include dead bus/dead line, dead bus/live line and live bus/dead line arrangements. |
|
SPM-D2-10 Family
|
The SPM-D2-10 family uses the same core synchronizing platform while different suffixes define measuring-voltage, mounting/package and supply configurations. The 8440-2167 is the SPM-D2-1010B/YB configuration. |
| Model | Part Number | Configuration | Supply Arrangement |
| SPM-D2-1010B/YB | 8440-2167 | 100 Vac class / flush mount / no CT | YB, 12/24 Vdc |
| SPM-D2-1040B/YB | 8440-2176 | 400 Vac class / flush mount / no CT | YB, 12/24 Vdc |
| SPM-D2-1010B/NYB | 8440-2177 | 100 Vac class / flush mount / no CT | NYB, wide-range AC/DC supply |
| SPM-D2-1040B/NYB | 8440-2189 | 400 Vac class / flush mount / no CT | NYB, wide-range AC/DC supply |
|
Applications & System Scenarios
The SPM-D2 family is intended for synchronization of two electrical systems. A typical application is synchronizing a mains-parallel generator to the utility mains. In a generator installation, the unit can compare the generator and busbar electrical conditions, adjust frequency and voltage through the associated control equipment, and release the breaker closing command when the configured synchronization conditions are satisfied. Synch-check and dead-bus functions provide additional operating scenarios where breaker closing must be governed by predefined electrical conditions. |
|
|
DIRECT SALES CONTACT
8440-2167
SPM-D2-1010B/YB
|
|
| Delivery 3–5 days |
Warranty 12 months |
Packaging Brand New |
Delivery Way E-packing / FedEx / EMS / TNT / DHL / UPS |
Payment T/T |
Please include Part Number, Quantity, Destination, Required Date and Machine/System in your inquiry. This helps us match the requested configuration and prepare a quotation efficiently.
Please contact us within 7 days if you have any question after receiving the items.
Returned items must remain in their original condition and include the specific reason for return. After the returned items are received, we will arrange a return or replacement for the order as applicable.
The buyer is responsible for shipping costs incurred for the return.
|
Can 8440-2167 replace an older SPM-D1010B/YB installation?
The Woodward part-number mapping associates 8440-2167 / SPM-D2-1010B/YB with the earlier 5448-906 / SPM-D1010B/YB. For an actual field replacement, the installed wiring, measuring arrangement and required functions should still be checked before the unit is exchanged. |
Is 8440-2167 the correct choice for a 24 Vdc synchronization panel?
8440-2167 is the YB package, whose supply arrangement is 12/24 Vdc with an operating range of 9.5–32 Vdc. The measuring side is the 100 Vac class version, so both the supply and voltage-measurement configuration should match the existing panel. |
|
What should be checked before ordering 8440-2167 as a synchronization replacement?
Confirm the complete part number, system voltage, 24 Vdc supply arrangement, phase configuration, terminal wiring and required synchronization functions. Pay particular attention to the 100 Vac measuring version because the SPM-D2 family also contains 400 Vac variants. |
Can 8440-2167 be used when the application requires dead-bus starting?
Yes. The SPM-D2-10/YB platform includes configurable dead-bus starting functions. The available operating conditions include dead bus/dead line, dead bus/live line and live bus/dead line arrangements. The actual installation must be configured for the required operating condition. |
|
Does 8440-2167 make sense when the generator system has synchronization timing problems?
The SPM-D2 platform provides synchronization-time monitoring and configurable breaker pick-up timing. If synchronization is not completed within the configured time, the unit can generate a synchronization-time warning and interrupt the synchronization sequence. Before replacing the controller, the measuring signals, controller response and breaker operating time should therefore be checked together rather than changing the synchronizer alone. |
|
