Brand |
Woodward |
|
Item number |
8440-1884 EASYGEN-2500-5 |
|
Power supply |
12/24 Vdc (8 to 40 Vdc) |
|
Ambient temperature (operation) |
-20 to 70 °C / -4 to 158 °F |
|
Ambient temperature (storage |
-30 to 80 °C / -22 to 176 °F |
easYgen Series Controls for Asynchronous Genset Applications
Woodward’s easYgen paralleling genset controls for asynchronous genset applications expand upon the versatility of the popular easYgen-2000 series and easYgen-3000 series genset controls and include a speed measurement device EPU-100.

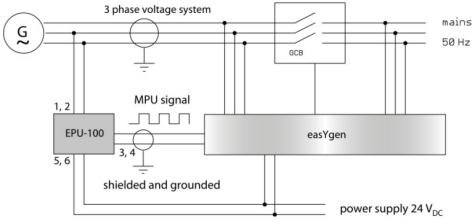

The easYgen controllers provide parameter selection for generator type. When asynchronous generator (induction generator) type is selected, the easYgen controls automatically re-configure to provide special functions for the asynchronous generators. The easYgen asynchronous genset controllers include all the highly-valued features and functions of the standard easYgen models, and an electronic speed measurement device. This device allows the user to easily convert the Remanence voltage into MPU square wave pulses which is then feed into the easYgen controller for speed reference.
The easYgen asynchronous genset application functionality is available in 2 kits:
lAsynchron KIT-2000 – includes a standard easYgen-2500-P1, plus an EPU-100. Applications include parallel operation of a single genset with a utility.
l Asynchron KIT-3000 – includes a standard easYgen-3500-P2, plus an EPU-100. Applications include load sharing of up to 32 gensets in utility parallel operation. This kit is also compatible with Woodward LS-5 series circuit breaker controls, for complex distribution systems with multiple utility feeds and tie breakers.
|
Contact us, and we will dispatch your order as requested |
||
|
|
|
|
|
Miya zheng |
||
|
l Exclusive Multilingual Support Team |
||
|
l Customized Customer Relation Management and Order Tracking System |
||
|
l No additional charges, handling charges or hidden charges are incurred |
||
FEATURES
|
l As long as the GCB is open the relevant MPU input (speed signal) comes from the EPU-100. |
|
|
l The closing of the GCB is executed, if the speed is within the corresponding frequency range of the generator operating window. The voltage and phase angle is ignored in this case. |
|
|
l The generator monitoring (under/over frequency and under/overvoltage/asymmetry) is switched off, until the generator breaker is closed. |
|
|
l After opening the GCB, under/over frequency and under/overvoltage and asymmetry monitoring is switched on again. |
|
|
l The synchronoscope is not displayed in the asynchronous mode. |
|
|
l Operation modes: Auto, Stop, Manual, and Load/No Load test. |
|
|
l Breaker control: Slip frequency synchronization, open-close control, and breaker monitoring. |
|
|
l Load transfer features: Open / closed transition, interchange, soft loading / soft unloading. |
|
|
l Active power and reactive power sharing. |
|
|
l Discrete and analog I/O expansion board connectivity (Woodward IKD 1 or Phoenix Contact IL series). |
|
|
l Event recorder (300 events, FIFO) with real time clock (battery backup for min. 5 years). |
|
|
l Multi-level password protection. |
|
|
l Multi-lingual capability. |
|
|
l Perfectly working together. |
|

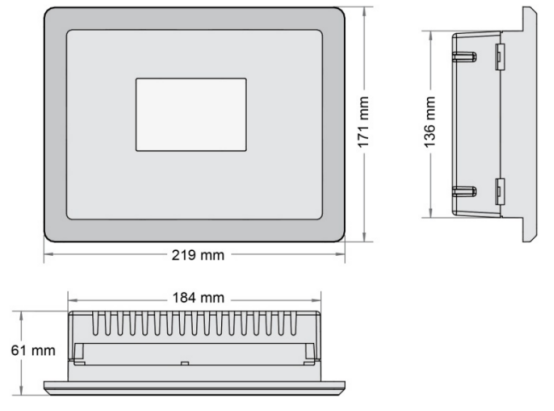

DIMENSIONS
easYgen-2500P1 -- Plastic housing for front panel mounting

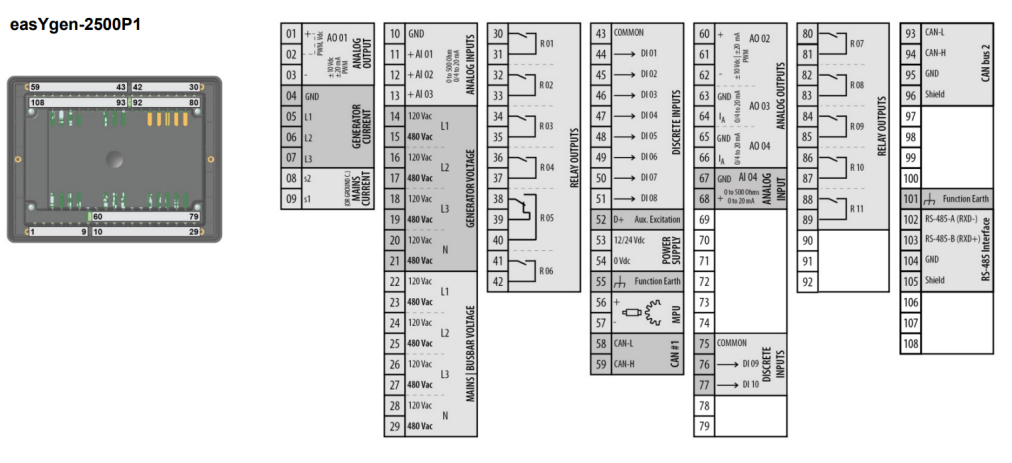

TERMINAL DIAGRAM
WOODWARD 8440-1884 EASYGEN-2500-5 – FAQ
Q1. What advanced control capabilities does the WOODWARD 8440-1884 EASYGEN-2500-5 provide for sophisticated generator-set management and operational supervision?
The WOODWARD 8440-1884 EASYGEN-2500-5 is engineered for comprehensive genset control, integrating monitoring, protection, synchronization, and power-management functions into a unified controller.
Q2. How does the WOODWARD 8440-1884 EASYGEN-2500-5 facilitate precise synchronization and load-sharing coordination in complex power-generation architectures?
The WOODWARD 8440-1884 EASYGEN-2500-5 supports coordinated generator operation by combining electrical measurement, control logic, and synchronization functions for stable and efficient power-system performance.
Q3. Which critical electrical and engine parameters can the WOODWARD 8440-1884 EASYGEN-2500-5 continuously scrutinize to enhance generator reliability?
The WOODWARD 8440-1884 EASYGEN-2500-5 is designed to supervise key operating conditions, allowing abnormal electrical or engine states to be detected and corresponding protective actions to be implemented.
Q4. Why is the WOODWARD 8440-1884 EASYGEN-2500-5 particularly suitable for demanding applications requiring centralized generator automation and resilient power control?
The WOODWARD 8440-1884 EASYGEN-2500-5 consolidates multiple generator-management functions within a dedicated control platform, helping streamline system architecture while maintaining dependable operational oversight.
Q5. What configuration and commissioning considerations should engineers examine when deploying the WOODWARD 8440-1884 EASYGEN-2500-5 within an existing generator-control system?
Engineers should evaluate the WOODWARD 8440-1884 EASYGEN-2500-5 against the genset's electrical characteristics, I/O configuration, communication requirements, synchronization strategy, protection parameters, and environmental conditions before commissioning.
