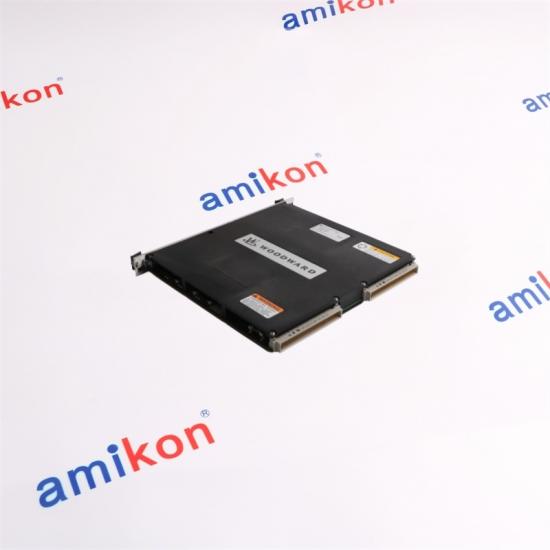

Woodward 5466-258

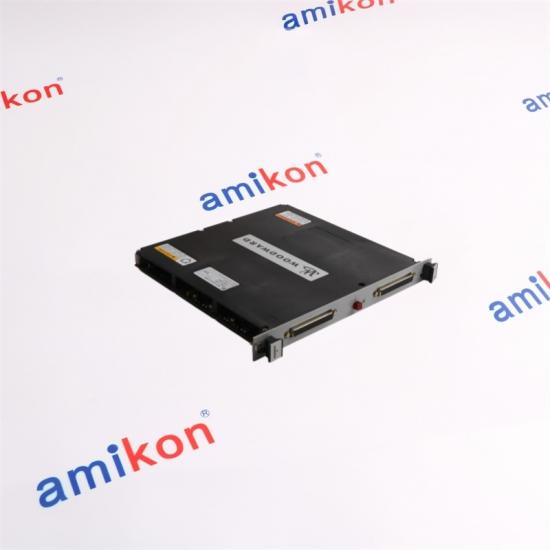

Woodward 5466-258

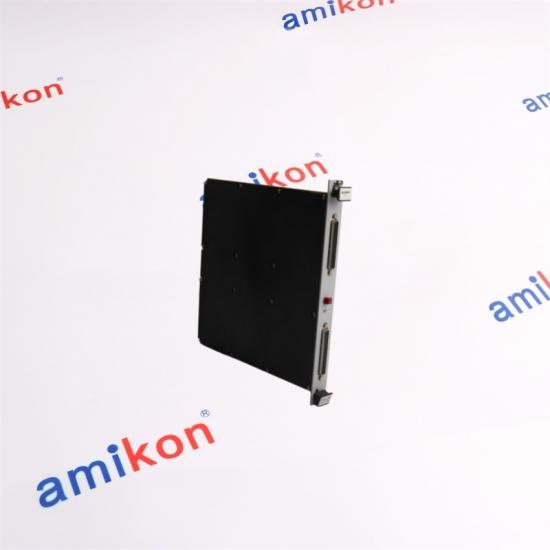

Woodward 5466-258

Woodward 5466-258 Simplex Discrete Input/Output (I/O) Module

Calculate shipping
Quotation Request
✦ AMIKON AUTOMATION
WOODWARD
MICRONET

SYSTEM PART NUMBER
5466-258
❖ GLOBAL DCS / PLC
551,867 parts in stock • 128 brands • Fast dispatch
TECHNICAL SPECIFICATIONS & ARCHITECTURE MODEL PROFILE
MAIN CPU
High-performance main processor module engineered for turbine control logic.
SIMPLEX MODE
Optimized for simplex architecture configurations in MicroNet systems.
REAL-TIME OS
Executes precise real-time deterministic control & system algorithms.
Sales Manager
Miya zheng
✉ EMAIL US ☎ WHATSAPP



WOODWARD · MICRONET CONTROL
5466-258

High Density Discrete I/O · Simplex · 48/24
A legacy MicroNet High Density Discrete I/O module designed for high-density discrete signal handling in Woodward MicroNet control architectures.
MODULE TYPE
48/24 HDD
CONFIGURATION
Simplex
FAMILY
MicroNet
STATUS
Legacy / Replaced
01 · PRODUCT DETAILS
Built for Dense Discrete Signal Handling

Product Positioning

Woodward 5466-258 belongs to the MicroNet High Density Discrete family and is configured as a Simplex 48/24 HDD module. Its architecture combines a high number of discrete channels in one control-system module, making it suitable for installations where multiple binary field signals must be integrated into a MicroNet control platform.

The module is associated with MicroNet Simplex and MicroNet Plus chassis configurations. The MicroNet compatibility matrix places the 48/24 HDD module within both family architectures, with CPU and software-version considerations becoming important when selecting a replacement or upgrading an installed system.

For maintenance purchasing, the key consideration is not only the part number itself but also the installed CPU platform, Coder version, chassis family and existing field termination arrangement.

CORE CONFIGURATION
48 discrete inputs
24 discrete outputs
1 Simplex module architecture

01 / DENSITY
48/24 Discrete I/O
High-density discrete architecture for applications requiring many binary field signals.
02 / PLATFORM
MicroNet Simplex / Plus
Designed within the MicroNet family architecture and associated chassis compatibility matrix.
03 / MAINTENANCE
Legacy Replacement Planning
Replacement selection depends on CPU family and Coder version rather than a part-number-only comparison.
02 · TECHNICAL PROFILE
Specifications & Configuration
Part Number 5466-258
Manufacturer Woodward
Product Family MicroNet
Module Type High Density Discrete I/O (48/24 HDD)
System Configuration Simplex
Discrete Channels 48 inputs / 24 outputs
MicroNet Family Compatibility MicroNet Simplex / MicroNet Plus architecture
CPU Consideration CPU family must be checked before replacement
Coder Consideration Coder version affects the appropriate successor module
Lifecycle Position Legacy HDD module; replaced by newer HDDIO solutions
REPLACEMENT CHECKPOINT
For a 5200 or P1020 based system running Coder 5.04 or later, Woodward specifies 5466-1050 for Simplex HDD functionality. For 5200 systems using Coder 4.06 or later where legacy spare compatibility is required, 5466-1158 is specified for the Simplex application. Older 040 or Pentium NT based systems require a separate compatibility assessment before selecting a replacement.
03 · FAMILY STRUCTURE
MicroNet Series Context
5466-258
High Density Discrete 48/24 HDD, Simplex configuration. The module provides a concentrated discrete I/O architecture for the MicroNet platform.
5466-256 — High Density Discrete I/O associated with TMR architecture.
5466-1050 — Simplex HDDIO successor for 5200/P1020 systems running Coder 5.04 or later.
5466-1158 — Simplex HDDIO successor for 5200 systems requiring legacy Coder 4.06+ compatibility.
Why the Series Relationship Matters
The 5466-258 should not be selected solely by matching the number of I/O points. CPU type, Coder version, system family and the existing field termination arrangement can determine whether the original module or a successor module is appropriate.
04 · APPLICATION & MAINTENANCE
Where 5466-258 Fits
Discrete Signal Concentration

Suitable for control architectures where numerous binary field signals must be concentrated through a MicroNet high-density I/O module.
Maintenance Spares

Appropriate for maintenance planning when an existing installation still relies on the legacy 48/24 HDD architecture and the installed platform has been verified.
Legacy System Recovery

Useful when restoring an installed MicroNet control system where replacement planning must preserve the existing hardware and software environment.
Typical Fault / Replacement Scenarios
01 · Loss of discrete I/O function
Verify the module, field termination arrangement and system diagnostics before replacing hardware. 		02 · Legacy spare unavailable
Check CPU family and Coder version before moving from 5466-258 to an HDDIO successor.
03 · Chassis modernization
A platform upgrade can change the appropriate I/O module even when the required channel count remains similar. 		04 · Existing FTM retained
The replacement decision should confirm whether the existing MicroNet field termination arrangement can be retained.
05 · DIRECT CONTACT
Request a 5466-258 Quote
SALES MANAGER
Miya zheng
EMAIL · sales@amikon.cn PHONE / WHATSAPP · 86-18020776792
Please include these five items with your inquiry:
Part Number Quantity
Destination Required Date
Machine / System
3–5 Days Delivery 12-Month Warranty Brand New Packaging T/T Payment
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
06 · PURCHASING QUESTIONS
5466-258 Buyer FAQ
Q1 · Is Woodward 5466-258 still suitable for an existing MicroNet installation?
It can be appropriate for an existing legacy installation when the installed system is designed around the 48/24 High Density Discrete architecture. Before ordering, the CPU family, MicroNet family and Coder version should be checked because newer HDDIO modules have replaced the legacy HDD architecture in later configurations.
Q2 · Can 5466-258 be replaced directly by 5466-1050?
For 5200 and P1020 based systems using Coder 5.04 or later, Woodward specifies 5466-1050 as the Simplex HDDIO replacement for the functionality of 5466-258. The replacement should still be matched to the installed system before purchase.
Q3 · When should 5466-1158 be considered instead of 5466-258?
For 5200 based systems using Coder 4.06 or later where legacy spare compatibility is required, Woodward specifies 5466-1158 for the Simplex 48/24 HDD function. The correct choice depends on the installed CPU and software environment.
Q4 · Does the 5466-258 replacement decision depend only on the 48/24 channel count?
No. The channel arrangement is only one part of the selection. MicroNet family, CPU platform, Coder version and the existing field termination arrangement can affect which successor module is appropriate.
Q5 · What should I provide when purchasing a replacement for 5466-258?
Provide the exact part number, required quantity, destination, required date and machine/system details. For a legacy MicroNet replacement, adding the CPU type and Coder version is especially useful because successor selection is platform-dependent.
