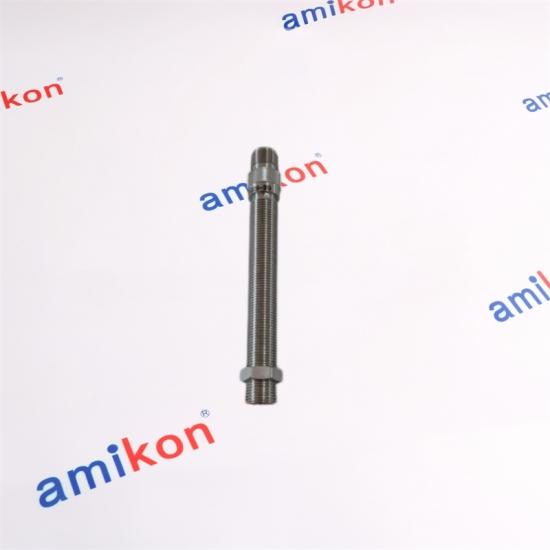

WOODWARD / MAGNETIC SPEED PICKUP KIT
5430-933
5/8-18 Magnetic Pickup Kit for Prime Mover Speed Sensing
Woodward 5430-933 is an MPU kit built around the 1680-631 magnetic pickup configuration. It uses a 5/8-18 mounting thread, a 4.5-inch thread length and a 250-ohm DC resistance, with the mating connector included as part of the kit.
BUILT FOR SPEED SIGNAL CONTINUITY
A passive magnetic pickup generates an electrical signal as magnetic material moves through its magnetic field, allowing the speed-control system to derive rotational speed from the resulting frequency.
|
|
|
01 / CORE
Configuration
|
|
|
02 / APPLICATION PATH
Where 5430-933 Fits in a Speed-Control SystemThe 5430-933 is suited to applications where a Woodward speed-control system needs a passive magnetic pickup to sense rotational speed from moving ferromagnetic material. Woodward describes MPUs as a common way to detect prime mover speed, particularly from engine or turbine gear teeth. During normal operation, the pickup converts the changing magnetic field caused by passing magnetic material into an electrical signal. The speed-control circuit then uses the signal frequency to represent actual prime mover speed.
|
DOWNTIME ANGLE
A small sensor can become a large control problem.
If the prime mover speed signal is absent, weak or inconsistent, the control may not have the feedback required for normal speed regulation. For machinery where speed control is essential to operation, this can extend troubleshooting and increase downtime exposure. Check the pickup-to-gear relationship and signal path before assuming the controller itself has failed.
|
|
INSTALLATION LOGIC
Signal quality starts at the gear.
Woodward's MPU guidance states that output voltage is affected by surface speed and by the distance between the pickup and the gear tooth. Increasing the gap reduces voltage. |
|
| MODEL | COMPATIBLE MPU | THREAD | LENGTH | DC RESISTANCE |
| 5430-915 | 1680-613 | 5/8-18 | 2.0 in | 200 Ω |
| 5430-919 | 202816 | 5/8-18 | 1.4 in | 250 Ω |
| 5430-929 | 1680-622 | 5/8-18 | 2.5 in | 250 Ω |
| 5430-933 | 1680-631 | 5/8-18 | 4.5 in | 250 Ω |
| 5430-951 | 1680-649 | M16 × 1.5 | 3.0 in | 250 Ω |
|
AMIKON / 20 YEARS
Two Decades of Industrial Automation Supply
Since 2005, Amikon has expanded its industrial automation portfolio and international customer reach, supporting maintenance teams with automation components across PLC, HMI, DCS, panel control, industrial computing and variable-frequency drive applications. Our growth over the past two decades has been built around a practical goal: helping industrial customers locate hard-to-source control-system components when equipment availability matters. |
|
||||||
|
FAST QUOTE / REQUIRED DETAILS
Send the five details that move your quotation forward.
For a faster quotation on Woodward 5430-933, please include the exact part number together with the quantity, destination, required date and the machine or system where the component will be installed. |
|
|
ORDER TERMS
|
Delivery
3–5 Days
|
Warranty
12 Months
|
Packing
Brand New
|
Payment
T/T
|
| 01 |
Why can choosing Woodward 5430-933 be more important than simply matching a 5/8-18 thread?
Thread size alone does not establish whether a pickup is the correct replacement. The 5430-933 combines the 5/8-18 thread with a 4.5-inch length, 250-ohm DC resistance and the 1680-631 pickup configuration. These characteristics should be checked against the existing installation and control requirements.
|
| 02 |
When does Woodward 5430-933 become a stronger suspect than the governor itself?
If a speed-control system loses or receives an unreliable MPU signal, the pickup, air gap, gear condition and signal wiring deserve attention before the controller is automatically blamed. Woodward's MPU guidance specifically links output voltage to monitored surface speed and pickup-to-gear clearance.
|
| 03 |
What makes Woodward 5430-933 useful when a long-reach pickup is required in an existing installation?
The 5430-933 uses the 1680-631 configuration with a 4.5-inch thread length. Within the 5430 series, that makes it the longer 5/8-18 option compared with the 2.0-inch 5430-915, 1.4-inch 5430-919 and 2.5-inch 5430-929 configurations.
|
| 04 |
Why should buyers pay attention to the connector when ordering Woodward 5430-933?
The 5430-933 is a kit consisting of the 1680-631 MPU and mating connector. That matters when maintenance teams are trying to restore an existing speed-sensing circuit without overlooking the connection hardware required to complete the assembly.
|
| 05 |
How can Woodward 5430-933 help reduce the risk of replacing the wrong speed-sensing component?
Confirming the complete configuration—part number, pickup length, thread, resistance and connector arrangement—helps distinguish the 5430-933 from other 5430-series kits. This is especially important when a machine has a fixed pickup mounting position and an incorrect length could affect the intended gear relationship.
|
