Brand |
Westinghouse |
|
Part Number |
5X00119G01 |
|
Dimensions |
12cmx5.2cmx16.2cm |
|
Weight |
0.36kg |
|
Country Of Origin |
USA |
|
Condition |
New and Original |
Features of AMIKON
1. Stock: Extensive range of new and obsolete parts.
2. Affordable: Competitive pricing with dealer discounts.
3. Reliability: Tested products with a 12-month warranty.
4. Speed: Fast response and delivery.
5. Professional: Well-established organization with skilled engineers.
6. Global: Worldwide partnerships and preferred suppliers.
Miya Email: sales@amikon.cn Miya Whatsapp/phone: +86 18020776792
Descripution

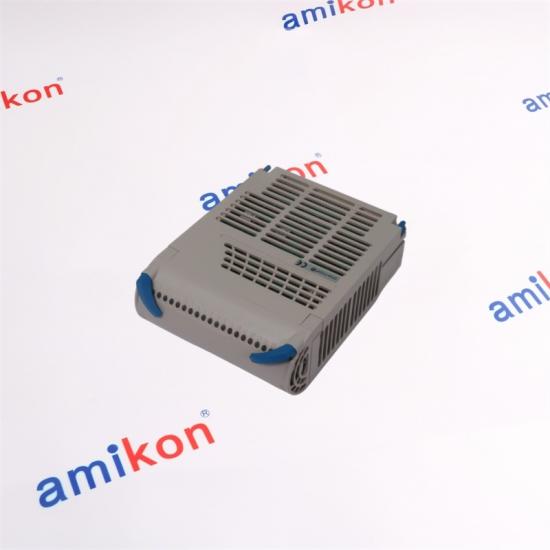

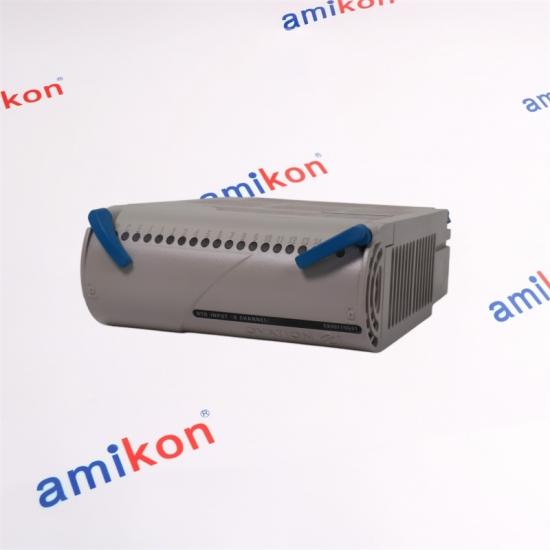

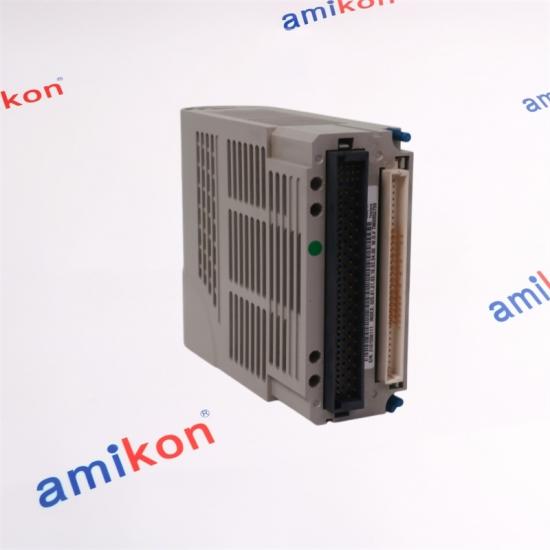

5X00059G01 is one Personality Module group for the HART Analog Input Module.
5X00059G01 contains a single printed circuit board assembly with eight fused two-wire loop-powered or non-fused active-source (four-wire isolated current output) transmitter inputs. Eight user servicable fuses (one fuse for each analog input channel) are located on the personality module. Each fuse is used to protect the auxiliary power supply only if the associated analog input channel is connected to a two-wire loop powered current transmitter.
Specifications
|
Manufacturer |
Emerson |
|
Brand |
WESTINGHOUSE |
|
Product Name |
Analog Input Module |
|
Condition |
100% New Original |
|
Temperature Range |
-40 to 85oC |
|
Input Impedance |
100 M OHM |
|
Module Current |
4 - 20 mA |
|
Humidity |
0 to 95% |
|
Product Package |
Original Package |
Some relevant information

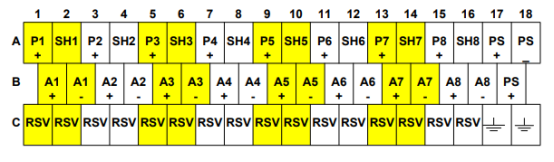

Personality module (5X00059G01) has a simplified wiring diagram label on its side which appears above the terminal block. This diagram indicates how the wiring from the field is to be connected to the terminal block in the base unit.The following table lists and defines the abbreviations used in those diagrams.
|
Abbreviation |
Definition |
|
A1 – A8 (+) |
Analog input terminal connection (connected to the negative terminal of a loop-powered two-wire current transmitter or the positive terminal of an active-source current transmitter). |
|
A1 – A8 (-) |
Analog input negative terminal connection (active-source only). |
|
P1 – P8 (+) |
Loop power output terminals (for loop-powered two-wire current transmitters – connect to their positive terminal). |
|
SH1 – SH8 |
Shield terminal connection. |
|
⏚ |
Earth ground terminals. |
|
PS+ , PS- |
External auxiliary power supply terminals. |
|
|
|
Frequently asked questions
|
Q1. How does the 5X00059G01 optimize analog signal acquisition accuracy in sophisticated process automation and control environments? |
|
The 5X00059G01 is engineered to provide high-fidelity analog signal processing, enabling precise data acquisition and enhancing the overall performance of industrial monitoring and control systems. |
|
Q2. Why is the 5X00059G01 considered a reliable interface solution for mission-critical distributed control system applications? |
|
The 5X00059G01 features a robust industrial-grade design that supports stable operation, minimizes signal degradation, and contributes to uninterrupted system functionality in demanding operational environments. |
|
Q3. What distinguishing characteristics of the 5X00059G01 support superior noise immunity and signal integrity? |
|
The 5X00059G01 incorporates advanced input circuitry and optimized signal conditioning capabilities that help mitigate electrical interference, ensuring accurate and consistent transmission of process data. |
|
Q4. Which integration factors should engineers evaluate when deploying the 5X00059G01 within an existing Emerson or WESTINGHOUSE control architecture? |
|
When implementing the 5X00059G01, engineers should assess channel allocation, wiring configuration, power requirements, environmental conditions, and system compatibility to achieve seamless integration and optimal operational efficiency. |
|
Q5. How can the 5X00059G01 contribute to predictive maintenance strategies and long-term asset reliability? |
|
The 5X00059G01 supports dependable signal monitoring and process visibility, allowing maintenance personnel to identify abnormal operating trends, reduce unexpected downtime, and improve the lifecycle performance of critical automation assets. |
