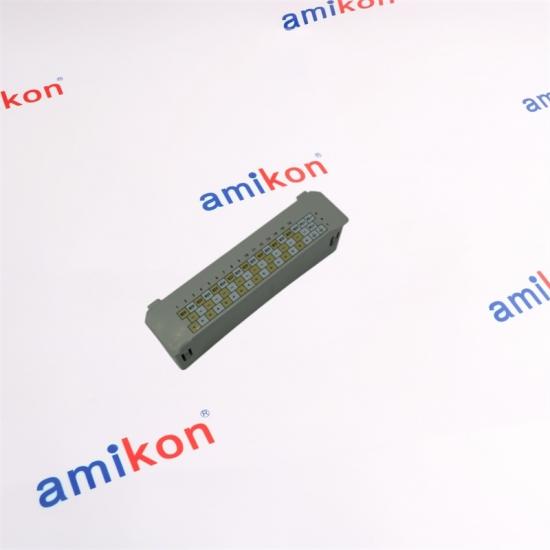

WESTINGHOUSE 1C31238H01 Compact Contact Input Module Foam Insert

Why choose Amikon

20+ Years of Delivering Control System Parts Worldwide

Shop the Largest Inventory of the Rarest Parts

Find what you need. Search our store for parts for ABB™, Alstom™, Bently Nevada™, Emerson™, GE™, Honeywell™, Rolls Entronic™, Siemens™, Triconex™, Westinghouse™, and Woodward™ control systems.

Maneger

Email

Telephone

Miya zheng

sales@amikon.cn

86-18020776792

Description

Value

Number of channels

16

On board auxiliary power supply

42 V minimum

55 V maximum

Propagation delay

7 mSec maximum

Contact bounce rejection

- Always rejects contact change of state

- Always accepts contact change of state

< 3 mSec

> 7 mSec

Closed contact output current

4 mA minimum

8 mA maximum

Diagnostics

Internal module operating faults

Ground Fault Detection

Dielectric isolation: - Channel to logic

1000 V AC/DC

Module power

4.56 W typical

4.75 W maximum

Operating temperature range

0 to 60°C (32°F to 140°F)

Storage temperature range

-40°C to 85°C (-40°F to 185°F)

Humidity (non-condensing)

0 to 95%

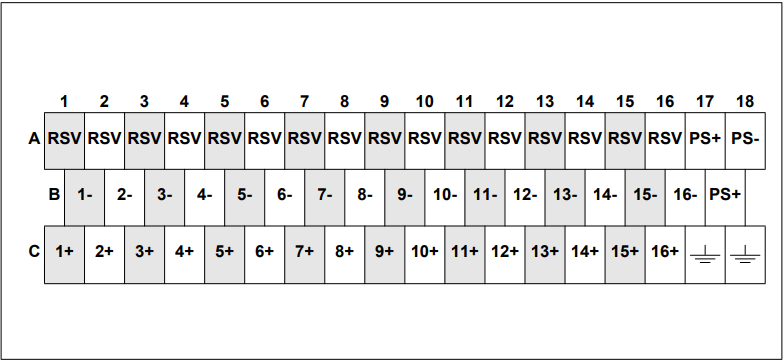

Abbreviation

Definition

1+ through 16+

Contact input positive terminal connection

1- through 16-

Contact input negative terminal connection

⏚

Earth ground terminals

PS+, PS-

Auxiliary Power Supply terminals

RSV

Reserved terminal. No internal connection

Q: How many discrete input channels does the 1C31238H01 module accommodate, and what are the specific terminal designations allocated for its physical contact interfaces?

A: The 1C31238H01 module features a high-density configuration supporting 16 distinct channels. Its physical contact interfaces are explicitly mapped from terminal connections 1+ through 16+ for positive contact inputs and 1- through 16- for negative contact inputs. Additionally, it incorporates dedicated Earth ground ($\mp$) terminals, auxiliary power supply points (PS+, PS-), and reserved (RSV) un-connected terminals.

Q: What are the exact voltage thresholds governing the onboard auxiliary power supply of the 1C31238H01, and what level of dielectric isolation is instituted to protect the internal logic circuitry?

A: The integrated onboard auxiliary power supply of the 1C31238H01 operates within a strict window, demanding a minimum of 42 V and sustaining a maximum of 55 V. To ensure robust galvanic isolation and safeguard sensitive processing components, the module provides a dielectric isolation rating of 1000 V AC/DC between the channel inputs and the logic side.

Q: Through what temporal parameters does the 1C31238H01 regulate its propagation delay and execute its contact bounce rejection algorithm to prevent transient state misinterpretation?

A: The 1C31238H01 exhibits a maximum propagation delay of 7 mSec. To mitigate transient signal noise and contact bounce, its hardware rejection mechanism is deterministically programmed: it always rejects unintended contact state modifications lasting less than 3 mSec ($< 3\text{ mSec}$), whereas it always accepts valid contact state transitions persisting for longer than 7 mSec ($> 7\text{ mSec}$).

Q: Under what specific ambient thermal envelopes can the 1C31238H01 safely operate and be stored, and what are the corresponding closed-contact output current constraints?

A: The operational thermal envelope for the 1C31238H01 spans from 0°C to 60°C (32°F to 140°F), with a non-condensing humidity tolerance of 0 to 95%. For non-operational storage, it withstands a range from -40°C to 85°C (-40°F to 185°F). When a contact loop is closed, the module regulates the output current to a minimum of 4 mA and a maximum of 8 mA.

Q: Which diagnostic subroutines are actively executed by the 1C31238H01 for fault detection, and what is the typical versus maximum power dissipation of the module during operation?

A: The 1C31238H01 features continuous system integrity monitoring, specifically executing Internal module operating fault diagnostics and Ground Fault Detection. In terms of thermal and electrical loading, the module draws a typical power consumption of 4.56 W, which peaks at a maximum rating of 4.75 W.
