Brand |
WESTINGHOUSE |
|
Product No. |
1C31223G01 |
|
Product Type |
Relay Output Base Assembly |
|
Product Origin |
USA |
|
Payment |
T/T |
|
Weight |
1.1k g |
n Our goods
|
Our parts are more diverse. |
|
We continue to innovate and strive to improve the world's automation parts supply level. |
|
No matter where the customer is or how difficult it is to find parts, we hope to connect customers all over the world through parts. |
|
Our business scope is wide, and we can provide all kinds of parts for customers around the world. |
|
n 551,867 spare parts in stock have been supplied |
|
n Choose 128 manufacturers |
|
n Adequate spare parts inventory |
Sales manager: Miya
Email: sales@amikon.cn
Whatsapp/phone: +86 18020776792
n Descripution

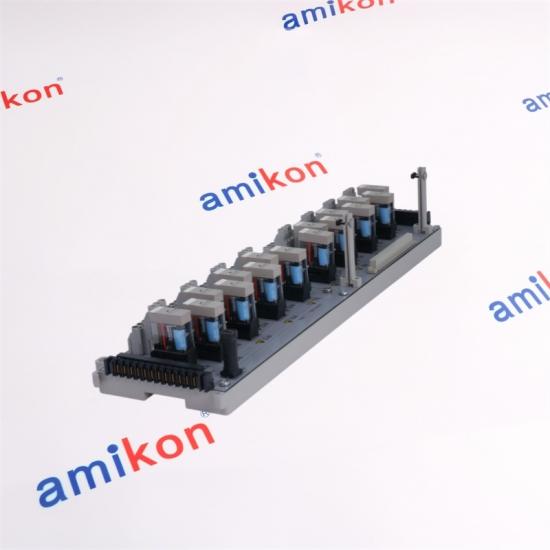

The 1C31223G01 module is engineered with 16 Form C electromechanical relays, utilizing a G2R-style relay architecture designed for reliable switching of both high AC and DC electrical loads under demanding industrial conditions. Each relay provides a single Form C (SPDT) contact configuration, offering flexible switching between normally open (NO), normally closed (NC), and common (COM) terminals.
All relay outputs are fully routed to dedicated terminal blocks, allowing straightforward and secure field wiring for end-user integration. This design ensures easy accessibility while maintaining robust electrical isolation and signal integrity.
With its capability to handle high current switching at elevated voltage levels, the 1C31223G01 is well-suited for industrial control systems requiring dependable output actuation, such as process automation, safety interlocks, and machinery control applications. The modular relay structure also enhances maintainability and simplifies system diagnostics in complex control environments.
n Specifications
|
Number of Relays |
16 |
|
Relay Type |
G2R electromechanical style with 1 Form C contact style |
|
Relay Contact Ratings |
10 A @ 250 VAC (PF=1); 10 A @ 30 VDC |
|
Maximum Propagation Time |
Operate time: 15 ms, bounce approx. 3 ms; Release time: 10 ms, bounce approx. 8 ms |
|
Dielectric Isolation |
Relay contacts to logic: 2300 V AC/DC |
|
Relay Base Power |
Auxiliary power: 9.1 W typical, 11.68 W maximum |
|
Auxiliary Power Supply |
25 V typical (before output auctioneering diode drop within Ovation auxiliary power supply), 25.5 V maximum @ 60°C |
|
Operating Temperature Range |
0 to 60°C (32°F to 140°F) |
|
Storage Temperature Range |
-40 to 70°C (-40°F to 158°F) |
|
Humidity (Non-condensing) |
35–85% |
n FAQ
Question 1: How does the 1C31223G01 Relay Output Base Assembly ensure high-reliability switching performance when operating 16 Form C (G2R-style) electromechanical relays in industrial control environments?
Answer: The 1C31223G01 integrates 16 Form C relay channels designed for robust AC/DC load switching, providing stable actuation performance and dependable signal routing in demanding automation and process control systems.
Question 2: What electrical load-handling capabilities define the operational robustness of the 1C31223G01 Relay Output Base Assembly under high-current switching conditions?
Answer: The 1C31223G01 supports high-current switching for both AC and DC circuits, enabling reliable operation of field devices while maintaining electrical isolation and long-term contact durability.
Question 3: How does the contact architecture of the 1C31223G01 Relay Output Base Assembly enhance system flexibility in distributed control applications?
Answer: The 1C31223G01 employs Form C (SPDT) relay configurations, allowing configurable NO/NC switching pathways that enhance wiring flexibility and adaptability across diverse control logic architectures.
Question 4: In what ways does the terminal block design of the 1C31223G01 Relay Output Base Assembly improve field integration and maintenance efficiency?
Answer: The 1C31223G01 routes all relay outputs directly to accessible terminal blocks, simplifying installation, reducing wiring complexity, and enabling efficient troubleshooting and maintenance operations.
Question 5: Why is the 1C31223G01 Relay Output Base Assembly considered suitable for mission-critical industrial automation and safety-related control systems?
Answer: The 1C31223G01 provides reliable relay-based output switching with strong electrical isolation and consistent performance, making it well-suited for safety interlocks, process automation, and high-reliability control system applications.
