WESTINGHOUSE 1C31222G01 5A26458G05 Relay Output Module

Sales Department

24/7 service available. Our sales team responds to your inquiries regarding any PLC, DCS, or automation products promptly, professionally, and patiently. We aim to build long-term, trusted relationships with every customer.

Engineering Department

Responsible for product quality assurance. All products are fully tested before shipment to ensure optimal condition and compatibility.

Financial Department

Handles payment verification and refund processes efficiently and accurately. Ensures smooth and secure financial transactions for all orders.

Warehouse Department

Responsible for inventory management, careful order inspection, and packaging. Ensures goods are shipped on time, in perfect condition, and packed with attention to safety.

CONTACT US

Maneger

Email

Telephone

Miya zheng

sales@amikon.cn

86-18020776792

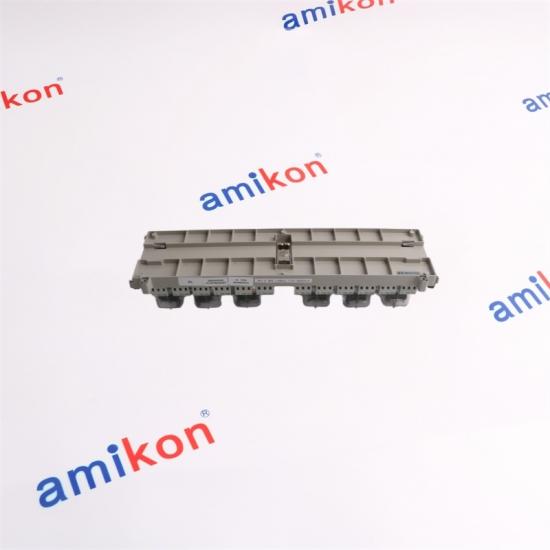

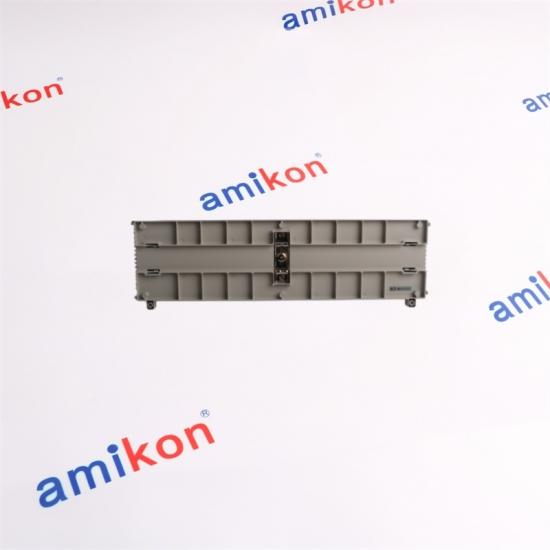

An Ovation Relay Output module consists of an Electronics module, a base assembly, and relays. The Relay Output module provides a means to switch high AC and DC voltages at high currents to field devices. There are two versions of the Relay Output base assembly which contain either 12 or 16 relays within each base. The 12 Relay Output base assembly provides the additional advantage of being able to switch larger DC voltages at high currents.

Each Relay Output base assembly incorporates an integral Relay Output Electronics module to interface between the relays and the Ovation I/O Controller.

The Relay Output Electronics module provides configurable communication timeout periods and LEDs to indicate the status of each output. The Relay Output module is applicable for CE Mark certified systems.

There are two different styles of Relay Output base assemblies:

l 1C31223G01 is configured with 16 Form C (G2R style) relays which switch high AC and DC voltages at high currents. Each relay contains one Form C contact arrangement which is brought to terminal blocks for user connections.

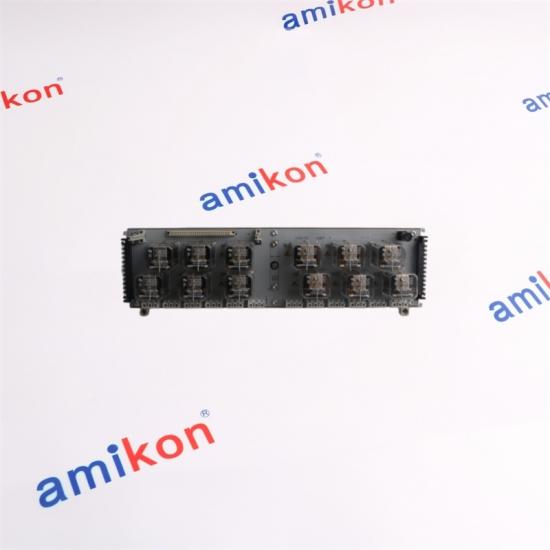

l 1C31222G01 is configured at the project level with either 12 Form C (KUEP style) or 12 Form X (KUEP style) relays which switch high AC and DC voltages at high currents.

In the case of the Form C relay, only one of the contact pairs within the relay is available at the terminal blocks for user connection. The KUEP style relay bases (1C31222G01) have the advantage of being able to switch larger DC voltages at higher currents than the G2R style relay bases (1C31223G01).

Description

Value

Number of Channels

12

Operating temperature range

2 0 to 60°C (32°F to 140°F)

Operate Time

5 ms (excluding bounce)

1Release Time

10 ms (excluding bounce)

Dielectric Isolation

Relay Contacts to Logic: 2200 V AC/DC

Storage temperature range

 -40 to 70°C (-40°F to 158°F)

Humidity (non-condensing)

35 - 85%

Number of relays

16

Relay Type

G2R electromechanical style with 1 Form C contact style

Q1: How does the 1C31222G01 5A26458G05 leverage its electromechanical relay architecture to ensure dependable output switching in high-demand industrial control environments?

A1: The 1C31222G01 5A26458G05 utilizes industrial-grade KUEP relay technology, providing robust switching performance, high electrical endurance, and reliable operation for critical process automation applications.

Q2: Why is the 1C31222G01 5A26458G05 considered a suitable choice for applications requiring substantial load-handling capabilities across both AC and DC circuits?

A2: The 1C31222G01 5A26458G05 supports relay contact ratings of up to 10 A at 240 VAC and up to 10 A at 150 VDC (depending on relay configuration), making it well-suited for demanding field-device control tasks.

Q3: What diagnostic and operational advantages does the 1C31222G01 5A26458G05 offer when deployed within an Emerson Ovation distributed control system?

A3: The 1C31222G01 5A26458G05 provides deterministic relay actuation, rapid response characteristics, and seamless integration with Ovation control architectures, helping improve system availability and maintenance efficiency.

Q4: How does the 1C31222G01 5A26458G05 maintain electrical integrity and equipment protection in environments exposed to elevated voltage differentials?

A4: The 1C31222G01 5A26458G05 features 2200 V AC/DC dielectric isolation between relay contacts and logic circuits, minimizing the risk of electrical interference and enhancing overall system protection.

Q5: Which environmental and power-supply considerations should engineers evaluate before commissioning the 1C31222G01 5A26458G05 in mission-critical automation installations?

A5: Engineers should verify relay type selection, auxiliary power availability, ambient operating temperature limits, and load characteristics to ensure the 1C31222G01 5A26458G05 delivers optimal performance and long-term operational reliability.
