VIBRO-METER IQS900 IQS450 Signal Conditioner

VIBRO-METER IQS900 IQS450
VIBRO-METER IQS900 IQS450
VIBRO-METER IQS900 IQS450

VIBRO-METER IQS900 IQS450 Signal Conditioner

Calculate shipping
Quotation Request
VIBRO-METER / SIGNAL CONDITIONING

IQS900 + IQS450

Proximity Signal Conditioners
DC-20 kHz
IQS900 RESPONSE
2 / 4 mm
CHAIN RANGE OPTIONS
V / mA
OUTPUT OPTIONS
International Delivery on the Day Quick Response Support Intercontinental Cooperation Network
IQS900
Current-generation conditioner

IQS450
Legacy conditioner family
EMAIL WHATSAPP


VIBRO-METER PROXIMITY SIGNAL CONDITIONERS

IQS900 204-900-000-011 & IQS450 204-450-000-002


PRODUCT 01
IQS900
High-frequency proximity signal conditioner for a matched TQ902 or TQ912 measurement chain.
PRODUCT 02
IQS450
Proximity signal conditioner configured for the compatible TQ442 and EA402 measurement chain.
PRODUCT 01 / IQS900

Fast Signal Conditioning for TQ9xx Proximity Chains

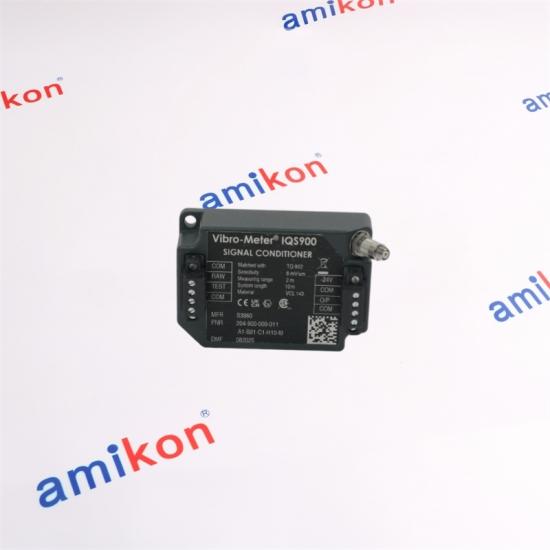

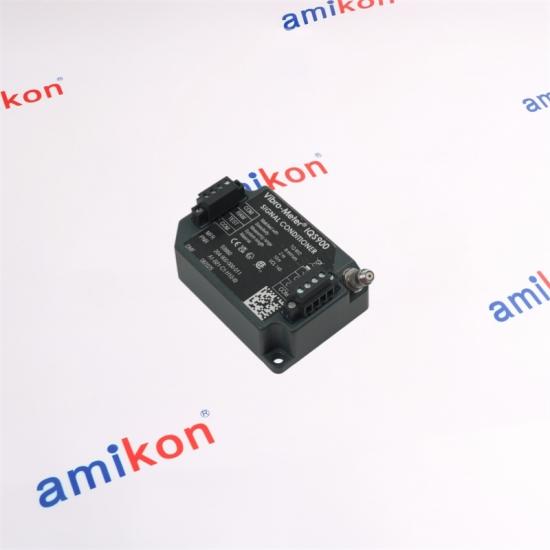

IQS900 204-900-000-011

The IQS900 supplies and conditions the signal from a compatible eddy-current proximity sensor. In a correctly matched chain, it converts probe response into an electrical output used for shaft-relative vibration, axial position and static gap measurement.

Product type: Proximity signal conditioner
Compatible chain: TQ902 or TQ912 with EA902 when required
Primary use: Rotating machinery measurement

Frequency response DC to 20 kHz (-3 dB)
Nominal supply -24 VDC
Maximum current 25 mA
Measurement range 2 mm or 4 mm according to configuration
Output selection Voltage or current according to complete order code
Mounting Direct mounting or MA130 DIN-rail adaptor option
PRODUCT 02 / IQS450

Dedicated Conditioning for the TQ442 / EA402 Chain

Product role Sensor excitation, response conditioning and signal transmission
Sensor family Compatible TQ442 proximity sensor
Extension element EA402 extension cable where required by the installed chain
Typical tasks Relative vibration, axial position and gap monitoring
Configuration rule Match sensor, cable, conditioner calibration, output and monitor input
Replacement check Use the complete installed product code, not appearance alone

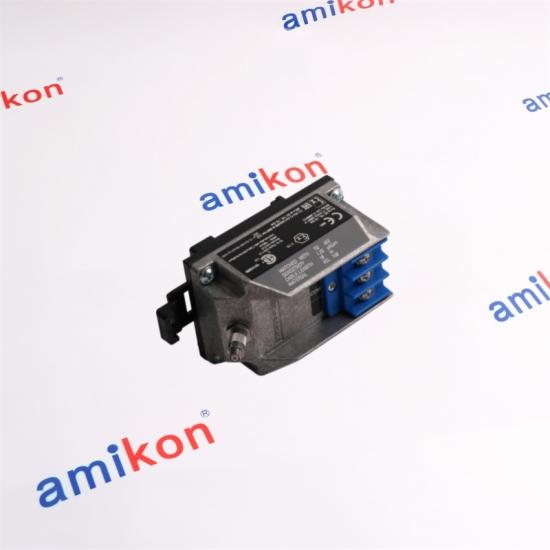

IQS450 204-450-000-002

The IQS450 is the conditioning element of its compatible proximity chain. It energizes the sensor and transforms the distance-dependent response into a usable monitoring signal. Correct performance depends on the exact sensor, extension cable, total electrical length and conditioner version.

Ordering focus
Confirm the complete IQS450 code and every installed chain component before replacement.
Request verification for IQS900 or IQS450
Send the conditioner label, sensor model, extension cable, total length, range, output and monitoring-channel details.		 REQUEST A QUOTE >
FAMILY AND SYSTEM RELATIONSHIP

Choose the Complete Measurement Chain, Not the Housing

IQS900 and IQS450 perform the signal-conditioning role in proximity measurement systems, but they belong with different sensor and cable families. A replacement decision must preserve the complete electrical and mechanical chain.

SELECTION POINT IQS900
204-900-000-011		 IQS450
204-450-000-002
System position Signal conditioner in a TQ9xx proximity chain Signal conditioner in a TQ442 proximity chain
Matched sensor TQ902 or TQ912, according to the installed configuration Compatible TQ442 sensor
Extension cable family EA902 where the chain requires an extension EA402 where the chain requires an extension
Typical measurement Relative vibration, axial position and static gap Relative vibration, axial position and gap monitoring
Known performance detail DC to 20 kHz (-3 dB); 2 mm or 4 mm range by configuration Performance is determined by the complete TQ442 / EA402 / IQS450 configuration
Interchange rule Do not cross-substitute IQS900 and IQS450 by appearance. Confirm every chain component and the full order code.
APPLICATION ADVANTAGES

Why Correctly Matched Conditioning Matters

01 / SIGNAL INTEGRITY

A matched sensor, cable and conditioner maintains the intended sensitivity, linear range and frequency behavior of the measurement chain.


02 / NON-CONTACT MEASUREMENT

Eddy-current sensing measures distance to a conductive target without mechanical contact, supporting continuous shaft observation.


03 / MONITOR COMPATIBILITY

Correct output type, polarity and sensitivity allow the protection or monitoring channel to interpret gap and vibration correctly.
HOW TO SELECT
1. Read the label

Capture the full conditioner code and revision.		 > 2. Identify the probe

Confirm TQ902, TQ912 or TQ442.		 > 3. Check the cable

Verify family and total electrical length.		 > 4. Match the signal

Confirm range, sensitivity, polarity and output.		 > 5. Verify installation

Check mounting, approvals and monitor input.
Quick decision: choose IQS900 only for the matching TQ9xx / EA902 chain; choose IQS450 only for the matching TQ442 / EA402 chain. If any chain detail is unknown, verify it before ordering.

AMIKON INDUSTRIAL AUTOMATION SUPPLY

Experience Behind Every Urgent Requirement

01 / EXPERIENCE
20 Years in Automation Supply

Long-term sourcing experience supports customers looking for current, scarce and discontinued industrial automation parts.


02 / Order-Code Attention
Clear configuration checks help reduce selection errors before dispatch.

03 / Urgent Dispatch Support
Responsive communication and shipping options help maintenance teams reduce avoidable delay.
QUALITY RELIABILITY FAST RESPONSE GLOBAL COOPERATION
DIRECT CONTACT

Keep the Requirement Moving

MIYA ZHENG - SALES MANAGER SALES@AMIKON.CN WHATSAPP +86 180 2077 6792
Seven-day contact window
Raise concerns promptly after receipt for order review.		   Original condition
Keep returned items unchanged and state the reason clearly.		   Inspection then resolution
Return or replacement follows receipt and inspection; shipping cost remains with the buyer.
PURCHASING FAQ

Five Questions to Resolve Before Ordering

01
What chain details are needed for IQS900 204-900-000-011 and IQS450 204-450-000-002?
Provide the installed sensor, extension cable, total system length, output type, range, sensitivity, mounting option and monitoring input. These details define the measurement chain more completely than the conditioner housing.

02
What must be matched when ordering IQS900 204-900-000-011?
Match environment code, 2 or 4 mm range, voltage or current sensitivity, diagnostic option, total system length and mounting option. The base number alone does not define a calibrated chain.

03
What must be matched when ordering IQS450 204-450-000-002?
Confirm the associated TQ442 and EA402 chain, system length, sensitivity, installation option and hazardous-area requirement. Retain the complete suffix from the installed unit.

04
Can IQS900 204-900-000-011 detect a measurement-chain fault?
Configurations with diagnostic circuitry can drive the output outside its normal range when a sensor, cable, conditioner or supply problem is detected. The monitoring channel must be configured to interpret that behavior.

05
How are IQS900 204-900-000-011 and IQS450 204-450-000-002 commissioned in a measurement system?
Verify the correct matched sensor and cable chain, target material, mechanical gap, supply, output polarity and monitoring-channel scaling before placing the machinery channel in service.
