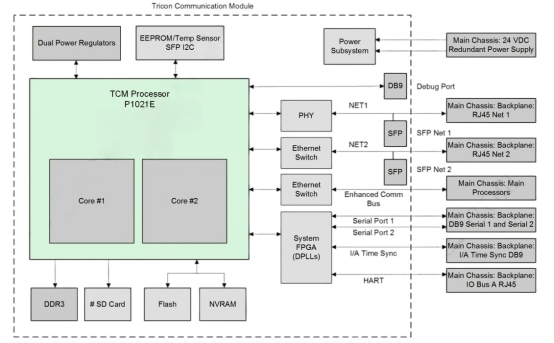

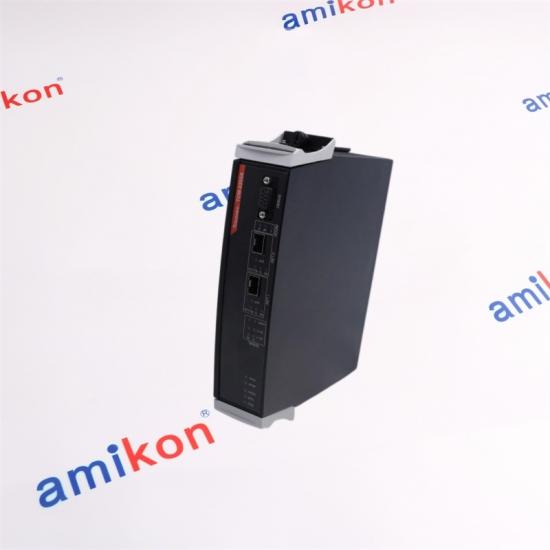

TRICONEX TCM 4355X Communication Module

About us

Our Business Scope

l Control Systems(DCS，PLC)

l Drives(Frequency Inverter and Servo)

l HMI and Display Panels

l Panel Controllers

l Power Supplies

l Motors

Company Services

l Professional Sales Team

l 24/7 Online service

l Full 12-month warranty

l Over millions spares inventory

l Parts delivered worldwide

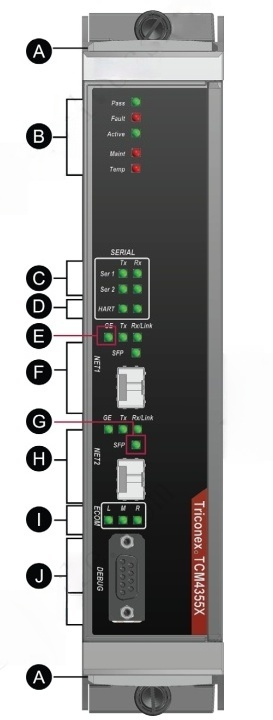

A

Module Ejectors

F

NET 1 Status and SFP Port

B

Module Status

G

Small Form-Factor Pluggable (SFP) Installed Indicator

C

Serial Ports Status

H

NET 2 Status and SFP Port

D

HART LEDs

I

Enhanced Communication Bus Status

E

Gigabit Ethernet Link

J

Debug port for Schneider Electric use

Feature

Specification

Serial ports

2, galvanically isolated RS-232/RS-485 interfaces, DB-9 connectors

For diagrad diagnostic analysis

1, galvanically isolated RS-232 interface, 9-pin connector

Speed

Up to 115.2 Kbps per port, aggregate data rate of 230.4 Kbps

Port isolation

500 VDC

Communication module network interfaces (a): Protocol

2, 100Base-TX/1000Base-T Ethernet (Copper Networks)

2, 100Base-X/100Base-FX (SFP interface)

Communication protocols

TriStation, Modbus Client, Modbus Server, Modbus TCP/IP, TSAA (with support for IP Multicast), Peer-to-Peer, Triconex Time Synchronization, External HART DTM, HART-IP, SNTP, and Jet Direct (network printing)

Modbus functions supported

01—Read Coil Status

06—Modify Register Content

02—Read Input Status

07—Read Exception Status

03—Read Holding Registers

08—Loopback Diagnostic Test

04—Read Input Registers

15—Force Multiple Coils

05—Modify Coil Status

16—Preset Multiple Registers

Logic power

<19watts

Q1: How does the TCM 4355X optimize high-availability industrial communication while maintaining the fault-tolerant integrity of a Tricon safety system?
A1: The TCM 4355X integrates redundant Ethernet communication, isolated serial interfaces, and comprehensive diagnostic capabilities to provide reliable, deterministic data exchange for mission-critical Tricon safety applications.

Q2: Why is the TCM 4355X an ideal communication module for integrating multiple industrial protocols within a Safety Instrumented System (SIS)?
A2: The TCM 4355X supports a broad range of protocols, including TriStation, Modbus TCP/IP, Modbus Client/Server, Peer-to-Peer communication, SNTP, HART-IP, and Triconex Time Synchronization, enabling seamless interoperability across diverse industrial networks.

Q3: What advanced networking capabilities distinguish the TCM 4355X for deployment in demanding process automation environments?
A3: The TCM 4355X features dual 100Base-TX/1000Base-T Ethernet ports, dual 100Base-X/100Base-FX SFP interfaces, galvanically isolated RS-232/RS-485 serial ports, and 500 VDC port isolation, ensuring secure, high-speed, and resilient communications.

Q4: How does the TCM 4355X facilitate predictive maintenance and rapid fault diagnosis within critical control infrastructures?
A4: The TCM 4355X incorporates comprehensive status indicators for module health, serial communication, network activity, ECOM bus status, and HART operation, allowing maintenance personnel to quickly identify communication faults and optimize system availability.

Q5: Which integrated communication and HART functionalities make the TCM 4355X particularly valuable for modern industrial automation systems?
A5: The TCM 4355X supports HART Version 7 compatibility, HART pass-through functionality, Modbus diagnostic services, high-speed Ethernet networking, and isolated serial communications, making it a versatile communication platform for connecting intelligent field devices with Tricon safety controllers.
