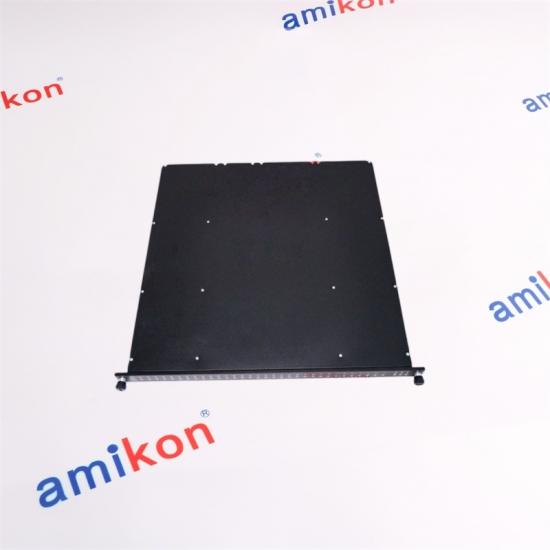

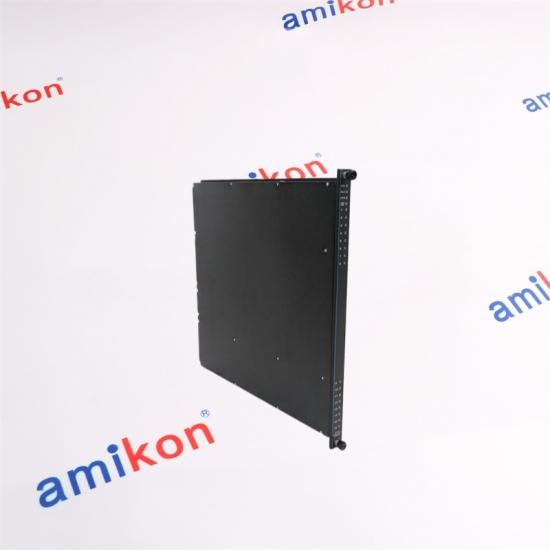

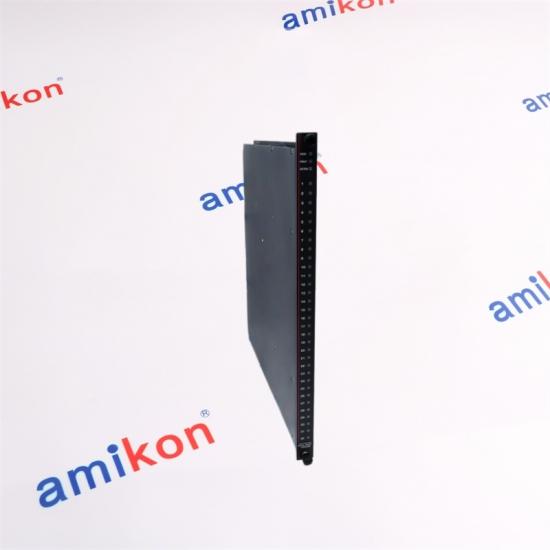

TRICONEX 3502E TMR Digital Input Module

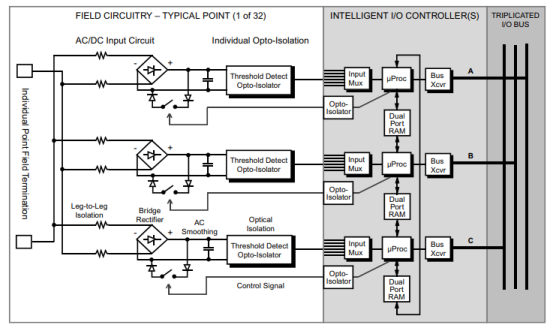

Each TMR digital input (DI) module has three isolated input channels which independently process all data input to the module. A microprocessor on each channel scans each input point, compiles data, and transmits it to the main processors upon demand. Then input data is voted at the main processors just prior to processing to ensure the highest integrity. All critical signal paths are 100 percent triplicated for guaranteed safety and maximum availability. Each channel conditions signals independently and provides optical isolation between the field and the Tricon

All TMR digital input modules sustain complete, ongoing diagnostics for each channel. Failure of any diagnostic on any channel activates the module Fault indicator which in turn activates the chassis alarm signal. The module Fault indicator points to a channel fault, not a module failure. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with certain kinds of multiple faults.

Models 3502E, 3503E, and 3505E can self-test to detect stuck-ON conditions where the circuitry cannot tell whether a point has gone to the OFF state. Since most safety systems are set up with a de-energize-to-trip capability, the ability to detect OFF points is an important feature. To test for stuck-ON inputs, a switch within the input circuitry is closed to allow a zero input (OFF) to be read by the optical isolation circuitry. The last data reading is frozen in the I/O communication processor while the test is running.

All TMR digital input modules support hot-spare capability, and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.

Feature

Specification

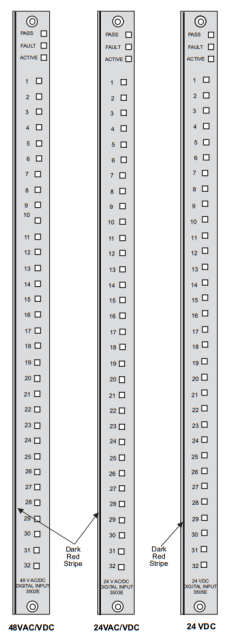

Color code

Dark red

Number of input points

32, commoned in groups of 8

Input frequency range

DC or 47–63 Hz

Recommended input range

35–95 VAC/VDC

Maximum voltage

95 VAC/VDC

Switching level (Off to On)

27 VAC/VDC typical, 32 VAC/VDC worst-case

Switching level (On to Off)

14 VAC/VDC typical, 11 VAC/VDC worst-case

Typical hysteresis

7 VAC/VDC

Nominal turn-on

6 mA to 9 mA

Input impedance

> 2.9 kΩ nominal

Input delay (Off to On)

< 8 ms

Input delay (On to Off)

< 15 ms

Point isolation (opto-isolated)

1000 VAC minimum, 1500 VDC minimum

Status indicator (On/Off state)

1 per point

Status indicator (Module status)

Pass, Fault, Active

Logic power

< 10 W

Nominal field power load

1.0 W per On point, 3.2 W @ maximum field voltage

Leakage current to chassis @ 60 Hz

0.5 mA maximum per On point

Input diagnostic fault coverage¹: Maximum input toggle rate

Every 100 ms

Input diagnostic fault coverage¹:

Minimum input toggle rate, On state

Not required

Minimum input toggle rate, Off state

Every 3 months (manually toggled by the user)

Diagnostic glitch duration²

20 ms typical

Output voltage

< 1/2V_IN

Output impedance

< 4.22 kΩ

Q

How does the Triconex 3502E ensure deterministic signal acquisition when processing 32 digital input channels under demanding industrial operating conditions?

A

The Triconex 3502E features 32 digital input points arranged in four isolated groups of eight, supporting 35–95 VAC/VDC input signals with fast response times of <8 ms (Off-to-On) and <15 ms (On-to-Off). Its optically isolated architecture enhances signal integrity while minimizing electrical interference.

Q

Why is the Triconex 3502E engineered with opto-isolated input channels, and how does this architecture improve system resilience?

A

The Triconex 3502E provides 1000 VAC minimum and 1500 VDC minimum point isolation, preventing field-side electrical disturbances from propagating into the controller. This isolation significantly improves noise immunity, fault containment, and long-term operational reliability in safety-critical applications.

Q

What switching thresholds distinguish the Triconex 3502E from conventional digital input modules in high-noise industrial environments?

A

The Triconex 3502E incorporates carefully calibrated switching characteristics, including a typical Off-to-On threshold of 27 VAC/VDC (32 VAC/VDC worst case), a typical On-to-Off threshold of 14 VAC/VDC, and approximately 7 VAC/VDC hysteresis, ensuring stable state recognition while minimizing false triggering caused by electrical noise.

Q

How does the Triconex 3502E optimize diagnostic visibility and operational monitoring for maintenance personnel?

A

The Triconex 3502E provides individual status LEDs for each input channel, along with dedicated Pass, Fault, and Active module indicators. This comprehensive diagnostic system enables rapid fault localization, simplified commissioning, and efficient preventive maintenance without interrupting system operation.

Q

What electrical characteristics make the Triconex 3502E suitable for continuous operation in safety-instrumented systems (SIS)?

A

The Triconex 3502E is designed with low logic power consumption (<10 W), nominal input impedance greater than 2.9 kΩ, 6–9 mA nominal turn-on current, and maximum chassis leakage current of only 0.5 mA per active input point at 60 Hz. These specifications contribute to dependable long-term performance, reduced power demand, and compatibility with high-integrity industrial control systems.
