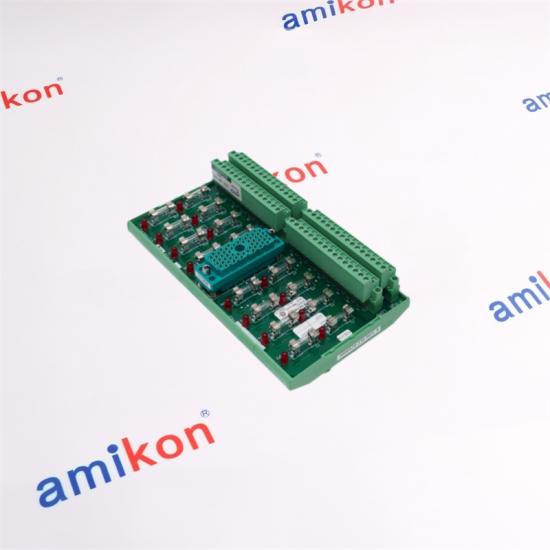

TRICONEX 7400166-380 Terminal Board

Calculate shipping

Quotation Request

TRICONEX / TRICON

7400166-380

FIELD TERMINATION PANEL

INTERFACE ROLE

External I/O termination and field wiring interface

Built around the Tricon fault-tolerant safety-system field termination concept.

TMR I/O

IMPORTANT PARAMETERS

TYPE	External termination panel
FUNCTION	Field wiring / I/O signal termination
SYSTEM	Tricon fault-tolerant safety platform

FIELD INTERFACE

Provides a structured termination point between Tricon I/O circuitry and field wiring, supporting organized installation and maintenance.

AMIKON GLOBAL SUPPORT

We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.

✉ SALES EMAIL
sales@amikon.cn ☎ PHONE / WHATSAPP
86-18020776792

Sales Manager · Miya zheng

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

TRICONEX

FIELD TERMINATION

DIGITAL OUTPUT INTERFACE

TRICON V9 / V10 · 24 VDC DIGITAL OUTPUT

7400166-380

Triconex 7400166-380 is a field-side termination/interface assembly associated with the 9662-8XX termination family and the 3000520-380 assembly designation. In the 9662-810 configuration, the termination arrangement is intended for 24 VDC commoned digital-output service with 16 field points. The termination layer provides the physical connection between the Tricon digital-output circuitry and field loads, while the Tricon controller retains the safety logic, redundancy and voting functions.

24 VDC

Digital output field supply

Commoned load points

16 A

Maximum total current

2.5 A

Fast primary fuse on compatible 3604E configuration

FIELD INTERFACE LAYER

A Dedicated Connection Point Between Tricon I/O and the Field

01 / TERMINATION

Field Wiring Interface

The 7400166-380 belongs on the field-termination side of the Tricon architecture. Its role is to provide an organized electrical interface for digital-output circuits rather than execute the Tricon control program.

02 / COMMONED OUTPUT

16-Point 24 VDC Arrangement

The 9662-810 configuration provides 16 load terminals with commoned power terminals. The specified maximum total current for the panel is 16 A, while individual output-point protection is provided through fusing with blown-fuse indication.

03 / SYSTEM SIDE

Tricon TMR Environment

The field termination layer operates within the wider Tricon fault-tolerant architecture, where three independent control channels work in parallel and output decisions are handled through the system's voting architecture.

TECHNICAL PROFILE

7400166-380 Technical Configuration

The 7400166-380 designation is associated with the 9662-8XX termination arrangement and 3000520-380 assembly family. For the 9662-810 configuration, the panel is a commoned digital-output termination solution intended for 24 VDC output circuits.

KEY PROCUREMENT POINT

The terminal-panel designation should be matched with the installed digital-output module and cable arrangement before replacement.

Primary Part Number	7400166-380
Associated Panel Family	9662-8XX / 9662-810 configuration
Assembly Designation	3000520-380
Panel Type	Commoned digital-output termination panel
Field Voltage Class	24 VDC
Load Points	16
Maximum Total Current	16 A
Power Terminals	Commoned PWR+ and PWR−
Compatible 16-Point Module	3604E, 24 VDC non-commoned, opto-isolated TMR digital output

FIELD OUTPUT PATH

From Tricon Output Logic to the Field Load

STEP 01

Tricon Output Module

Digital output circuitry generates the channel-level output state.

→

STEP 02

Connection Cable

The termination arrangement is linked to the I/O module through the appropriate cable assembly.

→

STEP 03

7400166-380 / 9662-810

The field termination layer provides 16 commoned load points for the 24 VDC digital-output arrangement. Each output point is protected by a fuse with blown-fuse indication in the applicable configuration.

For a replacement installation, the module type, terminal-panel variant, connection cable and field-load arrangement should be matched as one complete interface path. This is particularly important where existing cabinets use commoned 24 VDC output wiring.

TRICONEX SERIES RELATIONSHIP

7400166-380 Within the Tricon Digital-Output Architecture

TERMINATION FAMILY

9662-810

The 9662-810 configuration is a 24 VDC commoned digital-output termination panel with 16 load points and a 16 A maximum total current rating.

MODULE RELATIONSHIP

3604E

The 3604E is a 16-point, 24 VDC, non-commoned, opto-isolated TMR digital-output module listed with the 9662-810 termination panel. The panel and module therefore form a field-output interface pair rather than two independent control functions.

ASSEMBLY RELATIONSHIP

3000520-380

The 3000520-380 designation is associated with the 9662-810 field-termination arrangement. When replacing a 7400166-380 assembly, matching the assembly number on the installed hardware helps prevent selection of an incorrect termination variant.

TRICON TMR SYSTEM

The Tricon controller uses three independent control channels operating in parallel. The architecture applies hardware and software voting to maintain control integrity, while extensive diagnostics detect faults at the channel, module and functional-circuit levels. The termination panel sits at the field interface and does not replace the functions performed by the main processors or I/O modules.

7400166-380	Field termination / interface assembly	9662-810	24 VDC commoned 16-point termination panel
3604E	16-point 24 VDC digital-output module	3000520-380	Associated termination assembly designation

REPLACEMENT CHECK

What to Match Before Ordering 7400166-380

Because the 7400166-380 is part of the field termination layer, the safest replacement check is to compare the complete interface path rather than relying only on a similar-looking Tricon part number.

01	Exact assembly: confirm 7400166-380 and the installed revision/designation.
02	Termination family: verify the 9662-8XX / 9662-810 arrangement.
03	I/O module: confirm that the connected output module matches the termination configuration.
04	Field voltage: verify the existing circuit is the required 24 VDC output arrangement.
05	Cable path: confirm the connection cable and cabinet termination arrangement before replacement.

PURCHASE SUPPORT

Need Triconex 7400166-380?

Send the exact part number, required quantity, destination and required date. For replacement requests, adding the associated Tricon I/O module, termination-panel designation and cable number can make configuration checking more precise.

DELIVERY

3–5 Days

WARRANTY

12 Months

PACKAGING

Brand New

AMIKON SALES

Miya Zheng

Industrial Automation Spare Parts

EMAIL · sales@amikon.cn WHATSAPP · +86 18020776792

Fast response for urgent automation requirements

BUYER-FOCUSED FAQ

7400166-380 Replacement Questions

Q1 · Does 7400166-380 replace the Tricon 9662-810 digital-output function itself?

No. The 7400166-380 is associated with the field-termination/interface side of the 9662-8XX arrangement. The 9662-810 configuration is the 24 VDC commoned termination panel, while the digital-output module performs the output-generation function. For a replacement, the field termination assembly and the installed I/O module should be treated as separate but related components.

Q2 · Is 7400166-380 suitable for a 24 VDC Tricon digital-output cabinet using 16 field loads?

The associated 9662-810 configuration is specified for 24 VDC service with 16 load terminals and commoned power terminals. Its maximum total current is 16 A. The actual replacement should still be matched against the installed module, wiring arrangement and exact termination-panel variant.

Q3 · Which Tricon output module should be checked when ordering 7400166-380?

For the 9662-810 termination configuration, the 3604E is specified as the compatible 16-point 24 VDC non-commoned, opto-isolated TMR digital-output module. This relationship is important because a termination panel variant designed for a different voltage or output architecture may not provide the same field connection arrangement.

Q4 · What should be checked if a 7400166-380 replacement has the same part number but a different revision?

The complete assembly designation and installed revision should be compared before replacement. The 7400166-380 hardware is associated with the 9662-8XX / 3000520-380 termination arrangement, so the panel designation, connected I/O module and cable interface should all correspond to the existing cabinet configuration.

Q5 · Can 7400166-380 be evaluated independently from the Tricon TMR architecture when replacing a field interface?

It should be evaluated as part of the complete I/O path. The Tricon architecture uses three independent control channels and voting, while the field termination layer provides the physical connection to the output circuits and field loads. For a replacement, matching the termination panel, output module and connection cable together is therefore important.
