Siemens 6GK5005-0BA00-1AB2

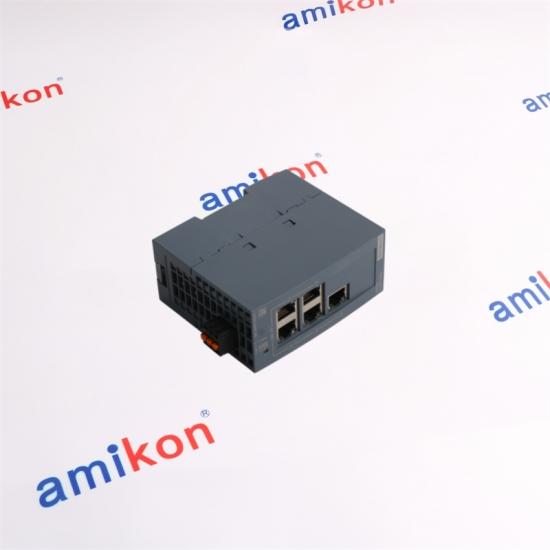

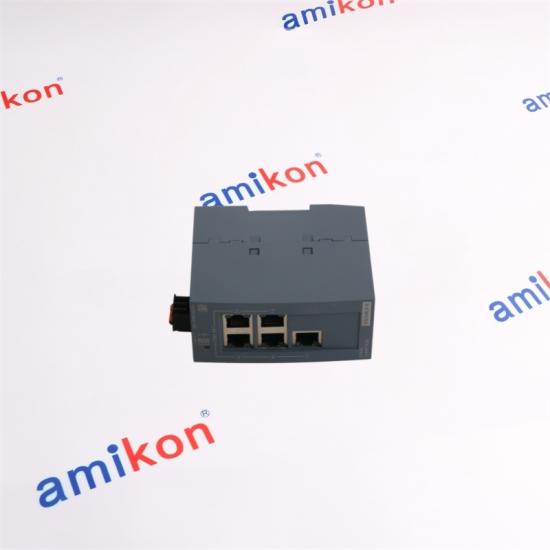

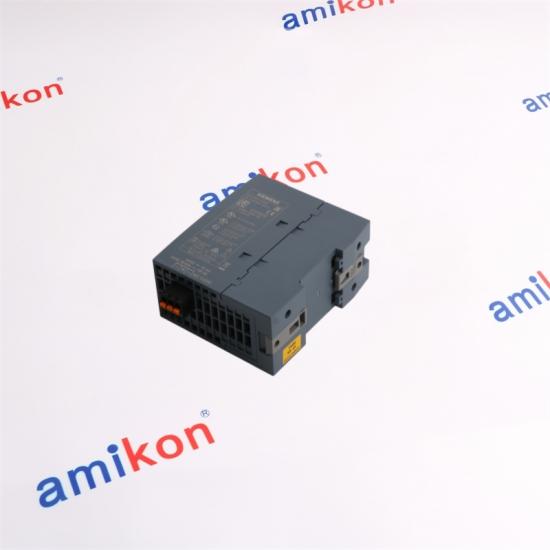

The SCALANCE XB005 is an unmanaged Industrial Ethernet Switch for 10/100 Mbit/s Ethernet communication. It provides five electrical Ethernet connections with RJ45 sockets and is designed for setting up small star and line topologies.

Five RJ45 Ports

Five electrical Ethernet connections are provided through RJ45 sockets for connecting network components or terminal equipment.

10/100 Mbit/s

The Ethernet connections support 10 Mbit/s and 100 Mbit/s transmission rates for the intended network environment.

Unmanaged Switching

The XB005 is an unmanaged Industrial Ethernet Switch designed for straightforward network connection in compact industrial structures.

Star & Line Topologies

The product is designed for establishing small star and line topologies.

LED Diagnostics

LED diagnostics provide a visual way to check the operating and connection status of the switch.

IP20 Housing

The XB005 has an IP20 protection rating and a compact housing suited to its intended industrial Ethernet application.

Small Star and Line Networks

The XB005 is intended for setting up small star and line topologies. Five RJ45 connections provide the physical Ethernet interfaces for the connected network components.

Industrial Ethernet Segments

In a machine or plant network, an unmanaged Ethernet switch can provide the connection point between multiple Ethernet devices within a compact network segment.

When Customers Search This Part

The exact article number may be searched when an installed XB005 requires replacement, when an Ethernet connection point is no longer operating normally, or when an existing network installation requires the same five-port configuration.

Communication Interruption

If the switch is part of an active Ethernet communication path, a switch failure or loss of power can interrupt communication between connected devices and may affect machine or network operation.

Is 6GK5005-0BA00-1AB2 the same product as SCALANCE XB005?

Yes. Siemens 6GK5005-0BA00-1AB2 corresponds to the SCALANCE XB005. The product is an unmanaged Industrial Ethernet Switch with five electrical Ethernet connections using RJ45 sockets.

What type of Ethernet ports does the 6GK5005-0BA00-1AB2 have?

The SCALANCE XB005 provides five electrical Ethernet ports with RJ45 sockets. The ports support Ethernet transmission at 10 Mbit/s or 100 Mbit/s.

What power supply is required for Siemens 6GK5005-0BA00-1AB2?

The XB005 is designed for a 24 V supply and accepts both AC and DC. The specified supply range is 19.2 to 28.8 V AC/DC. The power connection is made through a 3-pole terminal block.

What network topology is suitable for the SCALANCE XB005?

The SCALANCE XB005 is intended for small star and line topologies. Its five RJ45 Ethernet connections allow several Ethernet devices to be connected within a compact industrial network structure.

What should I verify when replacing a 6GK5005-0BA00-1AB2 in an existing machine network?

Before replacement, check that the required switch configuration matches the SCALANCE XB005: five electrical RJ45 Ethernet connections, 10/100 Mbit/s transmission, 24 V AC/DC power and the intended small star or line network arrangement. The available installation space should also accommodate the 45 × 87 × 100 mm dimensions of the unit.
