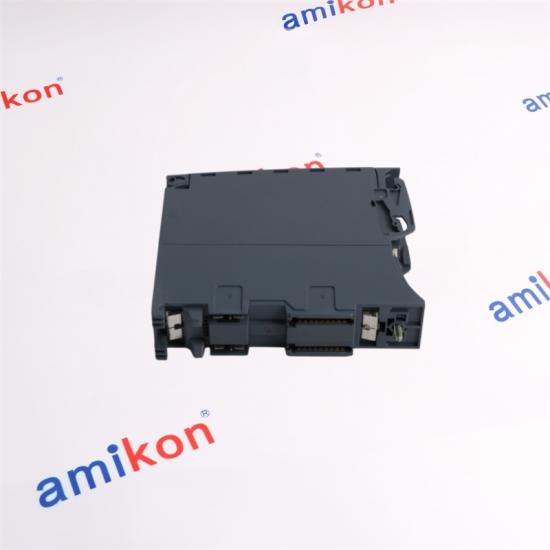

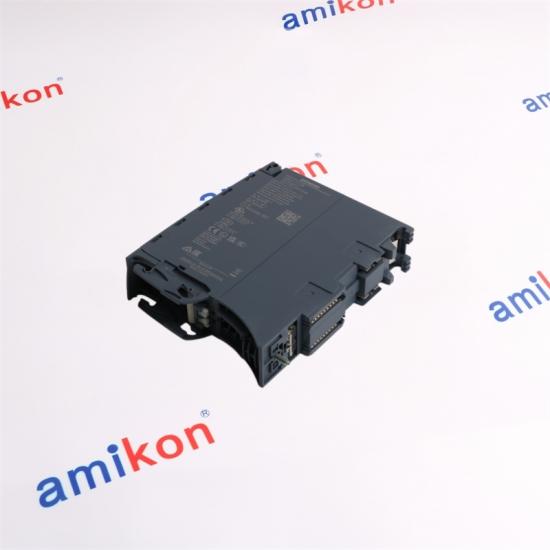

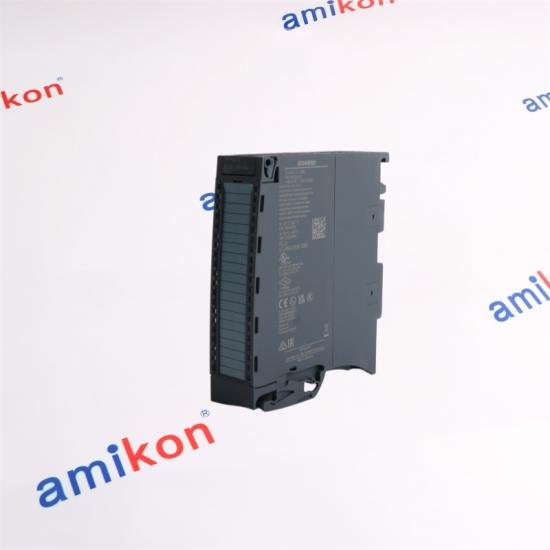

SIEMENS 6ES7551-1AB00-0AB0 counter and position detection technology module

Calculate shipping

Quotation Request

SIEMENS / S7-1500 / ET 200MP

TM POSINPUT 2

Purpose-built SIMATIC hardware for a clearly defined automation task.

6ES7551-1AB00-0AB0

○

CHANNELS

2 independent position and counter channels

↔

ENCODER INPUT

SSI absolute or RS422/TTL incremental signals

■

CHANNEL I/O

2 DI and 2 DQ per channel

● International Delivery on the Day

● Quick Response Support

● Intercontinental Cooperation Network

✉ EMAIL US

◉ WHATSAPP +86-18020776792

○ MIYA ZHENG

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

PRODUCT SYSTEM FIT SUPPLY FAQ MODELS

CORE

DUAL-CHANNEL POSITION ACQUISITION

SIEMENS 6ES7551-1AB00-0AB0

SIMATIC S7-1500 TM PosInput 2

SIGNAL
2 independent position-input channels

SIGNAL
RS-422 incremental or SSI absolute encoders

SIGNAL
2 DI + 2 DQ per channel 24 V DC

PRODUCT ARCHITECTURE

A precise role inside the SIMATIC ecosystem

TM PosInput 2 is a two-channel S7-1500 technology module for high-speed counting, position detection and measured-value acquisition. Each channel can be matched to an RS-422 incremental encoder or an SSI absolute encoder and performs preprocessing close to the controller.

The two channels can run independently. Typical tasks include position acquisition, continuous counting, frequency measurement, speed measurement and period measurement, reducing the processing burden on the central controller.

Each channel has two 24 V digital inputs and two 24 V transistor digital outputs. Inputs can control application functions such as gate, synchronization or capture; outputs can react to configured comparison events.

Encoder power is available for 5 V and 24 V devices per channel. The module uses a rated 24 V DC load supply with a permissible range of 19.2 to 28.8 V and includes reverse-polarity protection.

The module mounts on an S7-1500 rail and supports isochronous operation. For a replacement, verify encoder electrical format, SSI frame settings or incremental signal format, channel wiring, front connector and project firmware support.

REQUEST A CONFIGURATION CHECK

MAIL EMAIL MIYA

CHAT WHATSAPP +86 180 2077 6792

Sales Manager
Miya Zheng

CONFIGURATION PROFILE

Electrical and functional essentials

Technology function	Counting and position detection
Channels	2 independent channels
Encoder interfaces	RS-422 incremental or SSI absolute
Channel I/O	2 digital inputs and 2 transistor outputs per channel
Load supply	24 V DC; 19.2 to 28.8 V permissible
Encoder supply	5 V and 24 V available per channel
Synchronization	Isochronous operation supported
Mounting	SIMATIC S7-1500 mounting rail

ORDERING CHECKPOINT

Confirm the complete article number, installed system generation, field wiring, accessories, firmware and project compatibility before purchase or replacement.

SYSTEM RELATIONSHIP

Choose by architecture, not appearance

ARTICLE / FAMILY	HARDWARE ROLE	DISTINCTION	SELECTION NOTE
6ES7551-1AB00-0AB0	TM PosInput 2	Firmware generation V1.x	Original article
6ES7551-1AB01-0AB0	TM PosInput 2	Firmware generation V2.x	Compatible successor
TM Count modules	Pulse/count focus	Model dependent	Choose by signal type

A correct replacement preserves the electrical interface, project support and system role. Similar housings do not guarantee interchangeable behavior.

AMIKON INDUSTRIAL SUPPLY

Reliable industrial supply

Fast, dependable delivery for current and discontinued automation parts.

QUALITY

Careful part matching, responsive support and order tracking for cross-border procurement.

Stock built around uptime

A broad international network helps shorten the route from inquiry to dispatch.

CHECK STOCK & LEAD TIME

MAIL EMAIL MIYA

CHAT WHATSAPP +86 180 2077 6792

Sales Manager
Miya Zheng

OUR COMMITMENT

Quality, reliability and accountable support

Q Quality
Careful matching supports dependable operation.

R Reliability
Fast handling helps reduce avoidable downtime.

T Trust
Clear communication follows each order stage.

Returns and replacement: Contact us within seven days if an issue appears after receipt. Returned goods must remain in their original condition and include a clear reason. After inspection, an eligible return or replacement will be arranged. Return shipping costs are borne by the buyer.

BUYER FAQ

Checks that protect the project

Which encoders can 6ES7551-1AB00-0AB0 accept?

Each of its two channels supports an RS-422 incremental encoder or an SSI absolute encoder. Confirm signal level, SSI format and wiring before connection.

Can both channels of 6ES7551-1AB00-0AB0 be configured differently?

Yes. The channels operate independently, allowing channel-specific encoder and measurement settings within the supported functions.

What field I/O is available on 6ES7551-1AB00-0AB0?

Each channel provides two 24 V digital inputs and two 24 V transistor digital outputs for application control and comparison-event functions.

What must be checked before replacing 6ES7551-1AB00-0AB0 with its successor?

Compare firmware support, the controller project, encoder parameters, front-connector wiring, process behavior and acceptance tests before changeover.

Does 6ES7551-1AB00-0AB0 support synchronized acquisition?

Yes. Isochronous operation is supported when the complete S7-1500 or ET 200MP configuration is engineered for synchronized operation.
