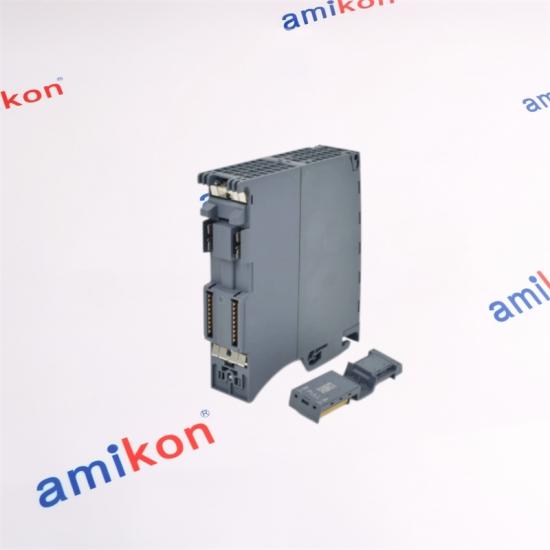

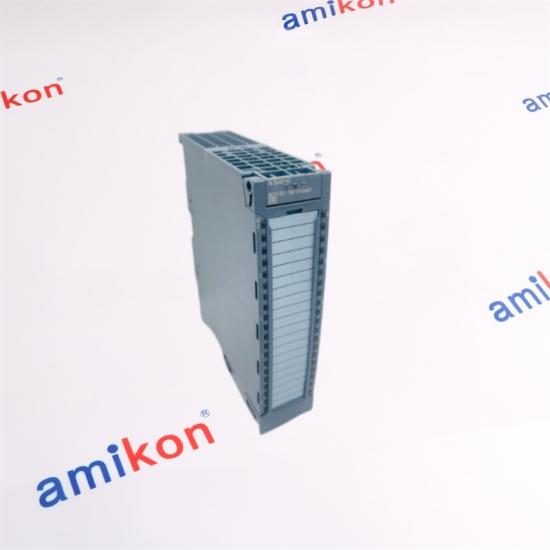

SIEMENS 6ES7531-7NF10-0AB0 AI 8xU/I HS Analog Input Module

The Siemens 6ES7531-7NF10-0AB0 is a high-speed SIMATIC S7-1500 analog input module with eight analog channels. Each channel can be configured for voltage or current measurement, while 16-bit resolution, configurable diagnostics, limit monitoring and fast measured-value updates support demanding automation and process-acquisition tasks.

All eight inputs support voltage or current measurement, with the measurement type configured individually by channel.

The module provides 16-bit resolution including sign, supporting precise digital representation of measured analog values.

With firmware V2.1.0 or higher and isochronous operation, oversampling can divide a PROFINET cycle into sub-cycles for higher time-resolution acquisition.

The module belongs to the SIMATIC S7-1500 / ET 200MP analog I/O environment and is intended for acquiring process signals such as voltage and current values. Its high-speed architecture is particularly useful when the control system needs fast and repeatable analog-value acquisition.

6ES7531-7NF10-0AB0 sits within the SIMATIC S7-1500 / ET 200MP SM 531 analog input family. Its defining focus is high-speed acquisition through eight configurable voltage/current inputs.

It depends on the existing channel configuration. This module accepts 1–5 V, ±5 V, ±10 V, 4–20 mA, 0–20 mA and ±20 mA within its specified transmitter arrangements. The replacement should therefore be checked against the installed signal type, wiring arrangement and configured channel parameters before commissioning.

The AI 8xU/I HS is designed for fast measured-value updates and supports oversampling. With suitable firmware and isochronous operation, sampling can be divided into PROFINET sub-cycles, making the module appropriate where ordinary cyclic acquisition does not provide the required time resolution.

Yes. Wire-break diagnostics are supported for the 4–20 mA range, and the module can also report missing supply voltage, overflow and underflow conditions. This makes it possible for the PLC application to distinguish certain field-signal problems from normal process values.

Each channel can use two low limits and two high limits for hardware-interrupt functions. This allows the control application to react directly to configured threshold violations instead of relying only on slower application-level polling.

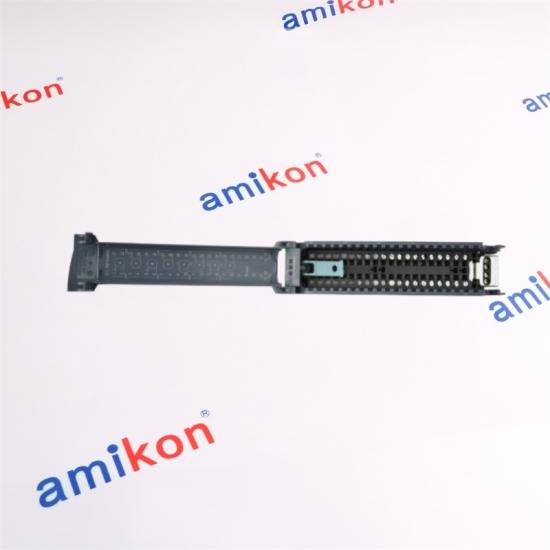

Confirm the complete part number, required quantity, installed S7-1500 or ET 200MP architecture, field signal types, channel configuration and required replacement date. The front connector is ordered separately, while the module is supplied with its infeed element, shield bracket, shield terminal and other specified accessories.
