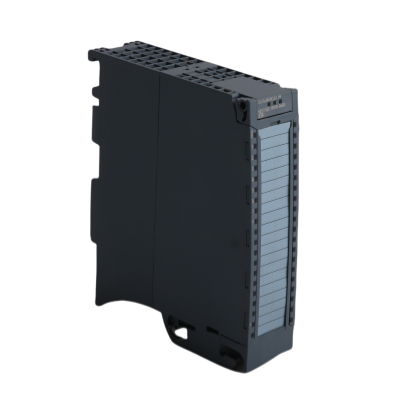

SIEMENS 6ES7522-5HH00-0AB0 Digital Output Module

Calculate shipping

Quotation Request

SIEMENS / SIMATIC

6ES7522-
5HH00-0AB0

DIGITAL OUTPUT

S7-1500 · SM 522 Relay Module

◆ CONTROL / SWITCH / MONITOR

Designed for switching AC loads in compatible SIMATIC S7-1500 automation systems.

KEY SPECIFICATIONS

S7 / 1500 SERIES

01 / CHANNELS

Relay outputs

02 / OUTPUT

230 V AC

2 A per output

03 / GROUP

4 A

Per group of 2 channels

FEATURES Integrated relay switching-cycle counter · Diagnostics · Substitute-value support
