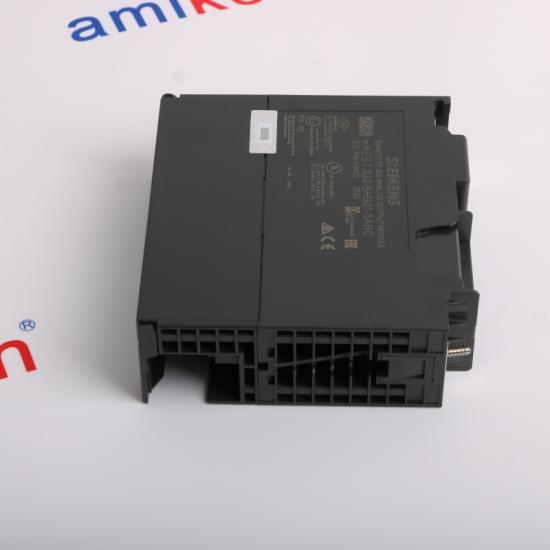

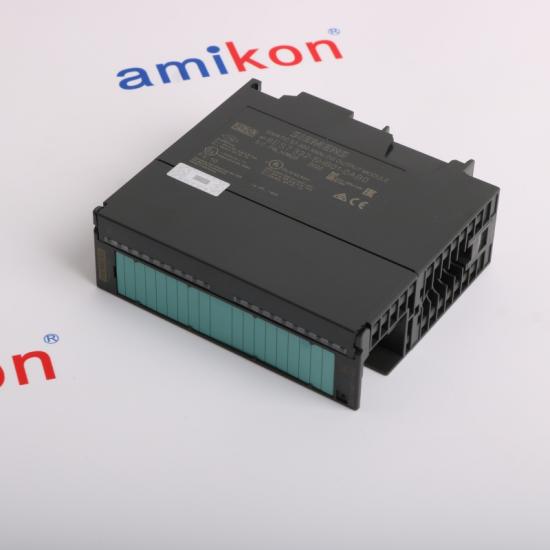

Siemens 6ES7332-5HB01-0AB0 Analog output SM 332

Product Specifications

Rated value (DC)：24 V

from load voltage L+ (without load), max.：135 mA

from backplane bus 5 V DC, max.：60 mA

Power loss, typ：3w

Number of analog outputs:：2

Voltage output, short-circuit current, max：25 mA

Current output, no-load voltage, max：18 V

with voltage outputs, min：1 kΩ

  with voltage outputs, capacitive load, max.：1 µF

with current outputs, max.：500 Ω

with current outputs, inductive load, max：10 mH

 shielded, max.：200m

Product Feature

Flexible Signal Types: It supports a variety of common analog signal ranges, including $\pm$10V, $\pm$5V, 0-10V, 1-5V, 0-20mA, and 4-20mA. This flexibility lets you use a single module for different applications.

High Resolution: With 12-bit resolution, the module provides a high level of precision for controlling your analog devices.

Diagnostic Capabilities: It includes integrated diagnostics to monitor for errors, such as wire breaks or short circuits, on the analog outputs. This helps in quickly identifying and resolving issues in your system.

Compact Design: The module has a slim profile, measuring just 40 mm wide, which helps save valuable space in a control cabinet.
