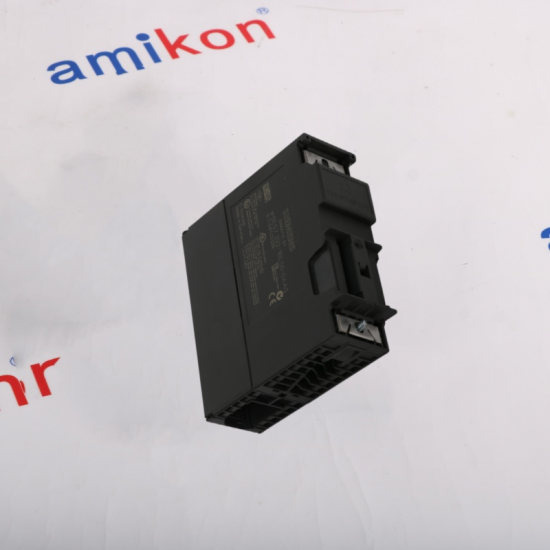

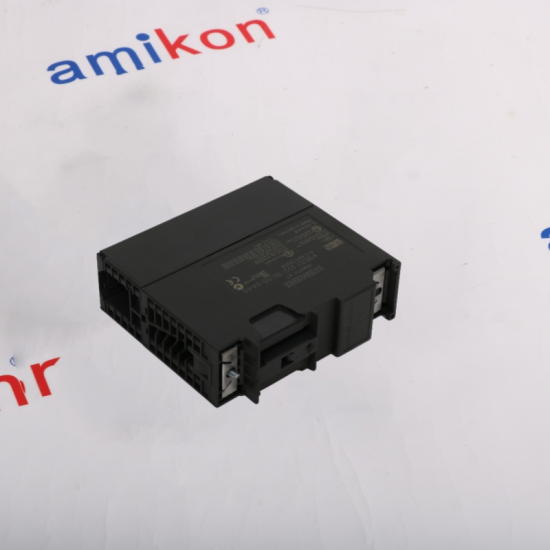

Siemens 6ES7322-1BL00-0AA0 Digital output SM 322

Product Specifications

Rated value (DC)：24 V

from load voltage L+ (without load), max.：135 mA

from backplane bus 5 V DC, max.：60 mA

Power loss, typ：3w

Number of analog outputs:：32

Isolation tested with：500vdc

required front connector：40-pin

Weight, approx.：260g

Product Feature

32 Digital Outputs: This module provides 32 digital output channels, making it a good choice for applications that need to control a large number of components

Optically Isolated: The outputs are optically isolated from the internal backplane bus. This provides electrical separation, which protects the module's sensitive electronics from voltage surges and other electrical noise on the output side.

0.5A Output Current: Each output can handle a maximum current of 0.5A. The module organizes outputs into four groups of eight, with each group having a total current limit of 4A.

Integrated Diagnostics: The module has built-in diagnostics that can detect short circuits or broken wires on the outputs, helping you quickly identify and troubleshoot problems in your system.
