SIMATIC S7-200 SMART
6ES7288-2DT32-0AA0

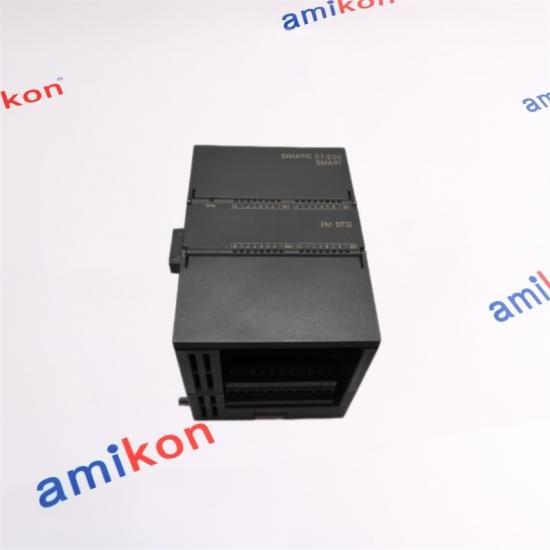

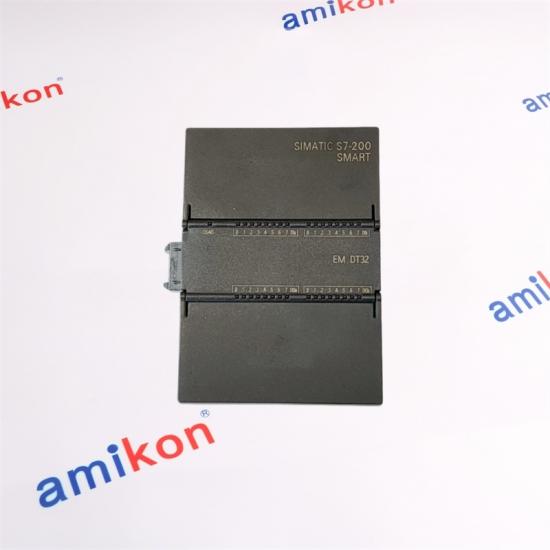

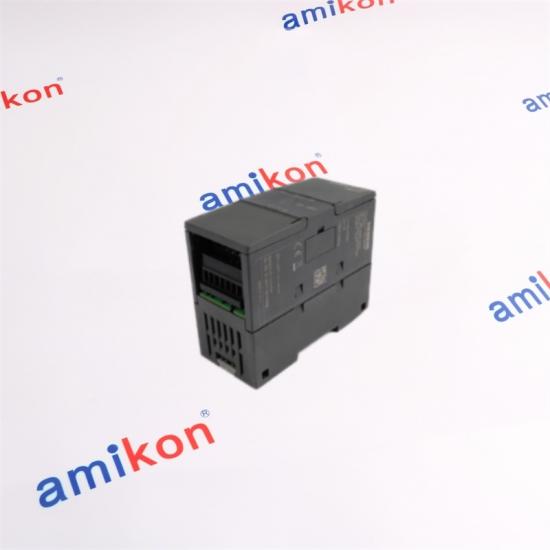

SM DT32 Digital I/O Module
A compact SIMATIC S7-200 SMART expansion module combining 16 digital inputs and 16 transistor digital outputs for 24 V DC industrial control applications.
|
|
|||||||||||||||
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
STATUS
Industrial Automation
|
|
The Siemens 6ES7288-2DT32-0AA0 is a SIMATIC S7-200 SMART digital I/O expansion module designated SM DT32. It provides a balanced combination of digital signal acquisition and transistor-based output control. The module provides 16 digital inputs and 16 digital outputs. The digital inputs are designed for 24 V DC signals and support sink/source input configurations. The transistor outputs are rated for 24 V DC operation with a maximum rated output current of 0.75 A. This makes the module suitable for extending discrete control capacity where fast electronic switching is required. |
|
||||||||||||
| Parameter | Specification |
| Product Designation | SM DT32 |
| Supply Voltage | 24 V DC |
| Permissible Supply Range | 20.4–28.8 V DC |
| Digital Inputs | 16 × 24 V DC |
| Input Signal "0" | < 5 V DC |
| Input Signal "1" | +15 to +30 V DC |
| Digital Outputs | 16 × 24 V DC transistor outputs |
| Rated Output Current | 0.75 A |
| Dimensions | 70 × 100 × 81 mm |
| Protection Rating | IP20 |
| Approx. Weight | 257.3 g |
|
01
32-Point I/O
16 digital inputs and 16 digital outputs in one expansion module.
|
02
24 V DC Signals
Designed around 24 V DC digital signal levels for industrial control.
|
03
Transistor Outputs
16 electronic outputs with a rated current of up to 0.75 A.
|
04
Industrial Design
Compact 70 mm module width with IP20 protection.
|
|
Machine & Process Control
The module can be used where a SIMATIC S7-200 SMART controller requires additional discrete I/O capacity for machine signals, actuators, switching devices and other 24 V DC control points.
|
Replacement & Downtime Situations
A failed expansion module can interrupt field signal acquisition or output control. During maintenance, the correct replacement part number is important when restoring an existing S7-200 SMART installation without unnecessary changes to the control architecture.
|
|
SIGNAL LOSS
Digital Inputs Not Detected
When field devices no longer appear correctly at the PLC input channels, the SM DT32 may become part of the troubleshooting and replacement process.
|
OUTPUT CONTROL
Outputs Fail to Switch
Unexpected output behavior can affect connected actuators, valves, contactors or other discrete control devices and may require module-level inspection.
|
DOWNTIME
Production Interruption
Because discrete I/O is part of the machine control chain, an unavailable module can extend troubleshooting time and increase production downtime.
|
Tell us the exact part number and application. Our team will help you check the suitable replacement route.
|
01
Multilingual Support
Exclusive multilingual support helps customers communicate technical requirements clearly across international projects.
|
02
Global Supply Capability
Our automation parts range covers PLC, DCS, I/O, control, drive and other industrial automation components.
|
03
Order Tracking
Customized customer relation management and order tracking support helps keep international orders organized.
|
| Q1 |
What I/O configuration does Siemens 6ES7288-2DT32-0AA0 provide?
It provides 16 digital inputs and 16 digital transistor outputs.
|
| Q2 |
What voltage is specified for the 6ES7288-2DT32-0AA0?
The rated DC supply and digital signal voltage is 24 V DC, with a permissible supply range of 20.4 to 28.8 V DC.
|
| Q3 |
What type of outputs are used on the SM DT32?
The module uses 16 transistor digital outputs rated at 24 V DC with a maximum rated output current of 0.75 A.
|
| Q4 |
What are the physical dimensions of 6ES7288-2DT32-0AA0?
The module measures approximately 70 mm wide, 100 mm high and 81 mm deep.
|
| Q5 |
Which automation platform is the SM DT32 designed for?
It is part of the SIMATIC S7-200 SMART product family and functions as a digital I/O expansion module.
|
