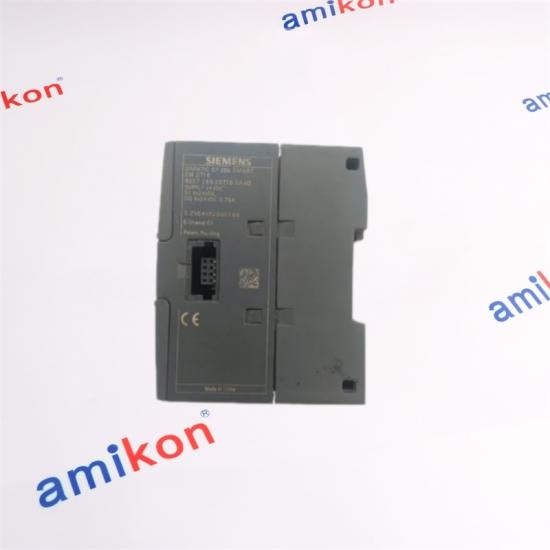

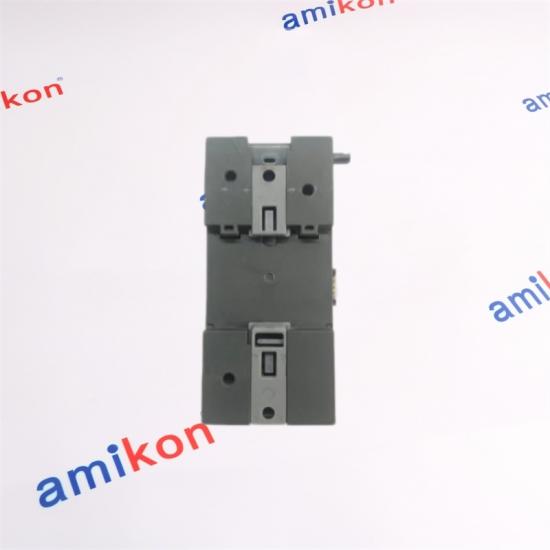

SIEMENS 6ES7288-2DT16-0AA0 EM DT16 Digital I/O Expansion Module

Calculate shipping

Quotation Request

SIEMENS • SIMATIC S7-200 SMART

6ES7288-2DT16-0AA0

SM DT16 Digital Input / Output Expansion Module

Digital I/O

8 DI + 8 DO

Input Configuration

8 × 24 V DC

Sink / Source digital inputs

Output Configuration

8 × 24 V DC

Transistor outputs

Output Rating

0.75 A

Maximum resistive load per output

✓

DELIVERY

3–5 Days

WARRANTY

12 Months

SALES MANAGER: MIYA ZHENG

sales@amikon.cn | +86-18020776792

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

AMIKON

Overview Specifications Application Service FAQ Models Request Price

SIEMENS · SIMATIC S7-200 SMART

6ES7288-2DT16-0AA0

EM DT16 Digital I/O Expansion Module

The Siemens 6ES7288-2DT16-0AA0 is an EM DT16 digital input/output expansion module for the SIMATIC S7-200 SMART automation platform. It combines 8 digital inputs rated at 24 V DC with 8 transistor digital outputs rated at 24 V DC and 0.75 A.

DIGITAL INPUTS

8 DI

24 V DC · Sink/Source

DIGITAL OUTPUTS

8 DO

24 V DC · Transistor

OUTPUT CURRENT

0.75 A

Maximum resistive load

SUPPLY VOLTAGE

24 V DC

20.4–28.8 V permitted

PART NUMBER

6ES7288-2DT16-0AA0

SYSTEM

S7-200 SMART

PACKAGING

Brand New

DELIVERY

3–5 Days

WARRANTY

12 Months

TECHNICAL PROFILE

Electrical & I/O Characteristics

Key operating characteristics for the EM DT16 digital input/output module.

Digital Inputs

Number of inputs8

Input groups2-point groups

Rated voltage24 V DC

Signal “0”< 5 V DC

Signal “1”15–30 V DC

Digital Outputs

Number of outputs8

Output typeTransistor

Current sourcingYes

Current sinkingNo

Short-circuit protectionNo

Switching Performance

Resistive load0.75 A max.

Lamp load5 W max.

0 → 1 delay200 µs max.

Output 0 → 150 µs max.

Output 1 → 0200 µs max.

Power & Consumption

Rated supply24 V DC

Permitted range20.4–28.8 V

Backplane current115 mA typ.

Power consumption2.5 W

Input current4 mA/input

Input & Wiring

IEC input characteristicType 1

Shielded cable500 m max.

Unshielded cable300 m max.

Parallel input switchingYes

All inputs active8 max.

Physical Design

Width45 mm

Height100 mm

Depth81 mm

Approx. weight179.7 g

Protection ratingIP20

SYSTEM INTEGRATION

Built for Digital I/O Expansion

The EM DT16 expands a SIMATIC S7-200 SMART installation with both digital sensing channels and transistor output channels in one compact module.

01 · INPUT SIDE

Discrete Signal Monitoring

The eight 24 V DC digital inputs can be used within an S7-200 SMART configuration to receive discrete field signals and status information.

02 · OUTPUT SIDE

24 V DC Control Tasks

The eight transistor outputs provide current-sourcing digital control for compatible 24 V DC loads, with a specified maximum resistive load of 0.75 A per output.

03 · MAINTENANCE

When Replacement Becomes Relevant

If field inputs stop being detected or expected output channels no longer switch during machine operation, the I/O module, supply wiring and connected circuits may be checked during troubleshooting.

Keeping the I/O Chain Available

In a control sequence that depends on discrete feedback and transistor switching, loss of a required input or output path can interrupt machine logic and delay normal operation. For replacement planning, the exact part number and the installed S7-200 SMART configuration should be checked before ordering.

AMIKON SERVICE

Support Beyond the Part Number

Clear communication, order tracking and a broad range of industrial automation components.

EXCLUSIVE SUPPORT

Multilingual Team for Faster Communication

From product identification to quotation and order follow-up, our team focuses on keeping communication clear and the purchasing process efficient.

PARTS AVAILABILITY

More Options for Industrial Automation

With access to a broad inventory covering multiple manufacturers, we help customers locate automation components for maintenance, replacement and system support.

SUPPORT

Multilingual

ORDER SYSTEM

Tracking

DELIVERY

3–5 Days

WARRANTY

12 Months

TECHNICAL FAQ

6ES7288-2DT16-0AA0 FAQ

Practical questions based on the module's specified digital input and output characteristics.

01 / I/O CONFIGURATION

How does Siemens 6ES7288-2DT16-0AA0 combine input and output capability?

Siemens 6ES7288-2DT16-0AA0 integrates eight 24 V DC digital inputs and eight 24 V DC transistor digital outputs in one EM DT16 expansion module.

02 / INPUT SIGNALS

What voltage levels define the digital input states of Siemens 6ES7288-2DT16-0AA0?

For Siemens 6ES7288-2DT16-0AA0, a signal below 5 V DC is specified as “0”, while the specified “1” input range is 15 to 30 V DC.

03 / OUTPUT DESIGN

Does Siemens 6ES7288-2DT16-0AA0 use sinking or sourcing transistor outputs?

Siemens 6ES7288-2DT16-0AA0 uses current-sourcing transistor outputs. Current-sinking operation is not specified for this module.

04 / LOAD CAPACITY

What switching load can Siemens 6ES7288-2DT16-0AA0 handle on each transistor output?

Siemens 6ES7288-2DT16-0AA0 specifies a maximum resistive load switching capacity of 0.75 A and a maximum lamp load of 5 W.

05 / INSTALLATION

What physical dimensions should be considered when replacing Siemens 6ES7288-2DT16-0AA0?

Siemens 6ES7288-2DT16-0AA0 has dimensions of 45 mm × 100 mm × 81 mm and an approximate weight of 179.7 g.

IMPORTANT DETAIL

Is short-circuit protection integrated into the output channels?

No. The specified transistor outputs do not include short-circuit protection, so connected circuits and loads should be evaluated carefully during installation and fault investigation.
