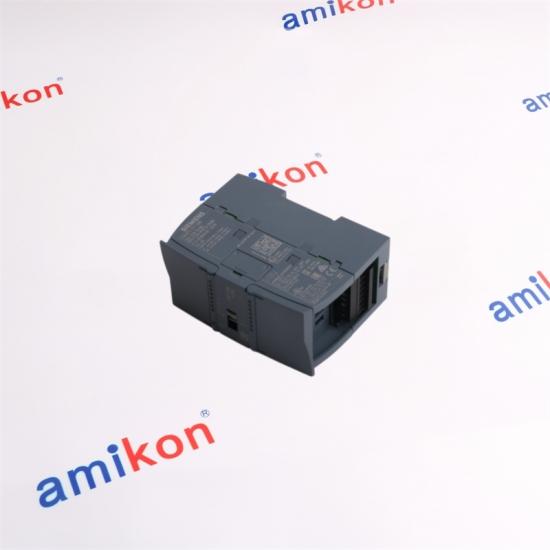

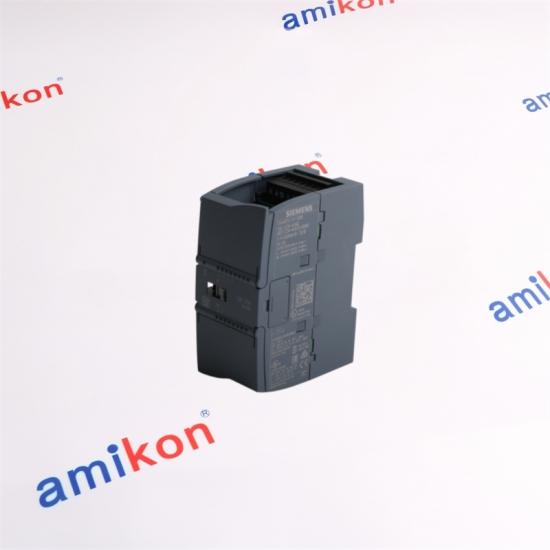

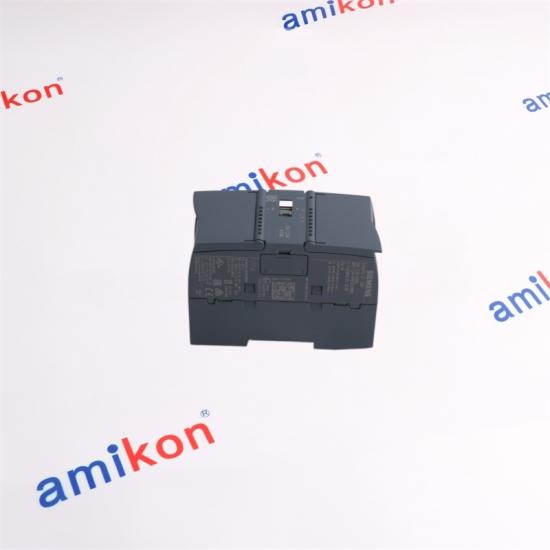

SIEMENS 6ES7234-4HE32-0XB0 SIMATIC S7-1200 analog I/O signal module

Calculate shipping

Quotation Request

SIEMENS / SIMATIC S7-1200

SM 1234 ANALOG I/O

Purpose-built SIMATIC hardware for a clearly defined automation task.

6ES7234-4HE32-0XB0

○

CHANNEL MIX

4 analog inputs and 2 analog outputs

↔

VOLTAGE MODE

+/-10 V with 14-bit resolution

■

CURRENT MODE

0(4)-20 mA with 13-bit resolution

● International Delivery on the Day

● Quick Response Support

● Intercontinental Cooperation Network

✉ EMAIL US

◉ PHOE +86-18020776792

○ MIYA ZHENG

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

SIEMENS · 6ES7234-4HE32-0XB0

4 AI
Differential inputs

2 AO
Voltage or current

ANALOG SIGNAL INTERFACE

SIEMENS
6ES7234-4HE32-0XB0

SIMATIC S7-1200 SM 1234

+/-10 V
Voltage range

0/4-20 mA
Current range

A combined S7-1200 analog module for acquiring four process values and issuing two analog command signals in one local expansion position.

MEASURE
Four differential voltage or current inputs.

CONVERT
Configurable smoothing, integration and diagnostics.

CONTROL
Two voltage or current outputs for process commands.

Confirm the complete configuration before ordering.
Send article number, installed system, quantity and destination for a focused quotation.

CONTACT MIYA

TECHNICAL PROFILE

Electrical and Application Details

ITEM	VALUE	SELECTION CHECK
Module type	SM 1234, 4 AI / 2 AO	Local S7-1200 signal module
Supply	24 V DC; 60 mA typical	Plus 80 mA typical from 5 V backplane
Input ranges	+/-10 V, +/-5 V, +/-2.5 V, 0/4-20 mA	Four differential channels
Output ranges	+/-10 V, 0/4-20 mA	Two voltage or current outputs
Resolution	Inputs up to 12 bit plus sign; outputs 14 bit voltage / 13 bit current	Match the configured signal range
Cycle time	625 microseconds max. for all input channels	Consider smoothing and integration time
Load limits	Voltage output min. 1000 ohm; current output max. 600 ohm	Check the connected device impedance
Diagnostics	Supply monitoring, wire break and short circuit functions	Enable according to the selected mode

SYSTEM RELATIONSHIP

Where 6ES7234-4HE32-0XB0 Fits

Functional position
A combined S7-1200 analog signal module with four differential inputs and two outputs. It supports voltage and current ranges for process sensing and command signals in a compact local expansion position.

Family comparison
Within S7-1200 analog expansion, SM 1234 combines acquisition and command channels in one module. Compare it with input-only and output-only modules by channel count, required resolution, isolation, signal type and diagnostic coverage.

SIGNALS OF RELIABLE SUPPLY

From Inquiry to Delivery

Fast Response
Clear sales support for urgent automation needs.

Careful Checks
Product identity and condition reviewed before dispatch.

Global Reach
Broad cooperation for current and legacy parts.

Request Availability and Pricing

Sales Manager
Miya Zheng

sales@amikon.cn
Email product and quantity details

86-18020776792
WhatsApp for quick support

PURCHASING FAQ

Checks Before Ordering

01	Can 6ES7234-4HE32-0XB0 mix voltage and current channels? The module supports configurable voltage and current ranges. Confirm the permissible channel configuration and wire each terminal for the selected mode.
02	Does 6ES7234-4HE32-0XB0 accept thermocouples or RTDs directly? No. This model is intended for voltage and current signals; temperature sensors require a suitable temperature-input module or transmitter.
03	What load should be connected to 6ES7234-4HE32-0XB0 outputs? Voltage outputs require at least 1000 ohms, while current outputs permit up to 600 ohms in the rated range.
04	How should shielded wiring be planned for 6ES7234-4HE32-0XB0? Use shielded twisted-pair analog wiring, separate it from interference sources and observe the permitted 100 m maximum cable length.
05	What should be matched when replacing 6ES7234-4HE32-0XB0? Verify the exact article number, CPU and project compatibility, channel ranges, wiring, scaling, diagnostics, output load and calibration expectations.
