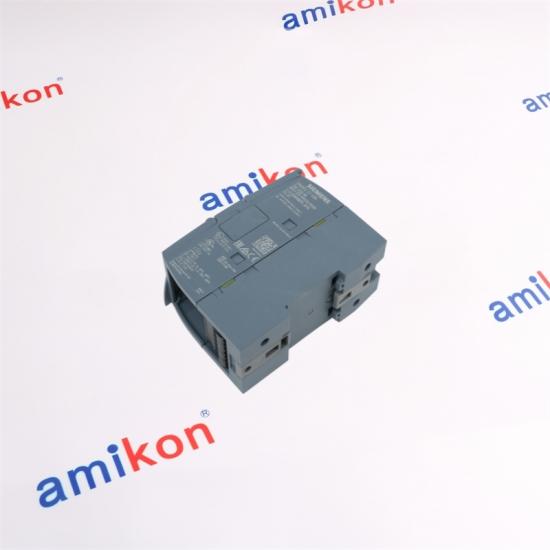

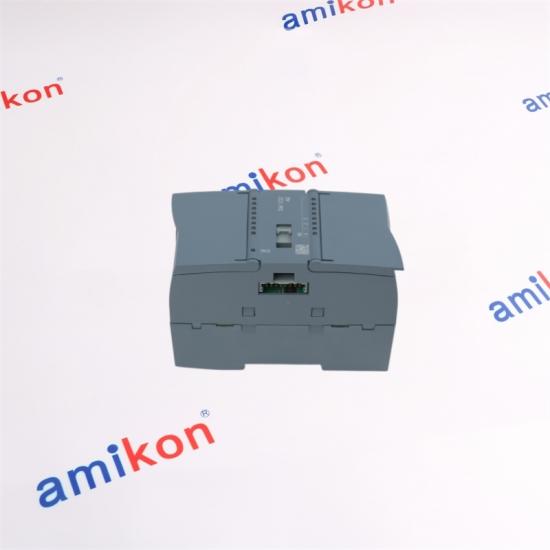

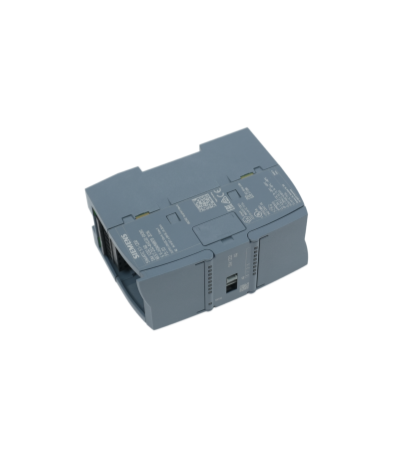

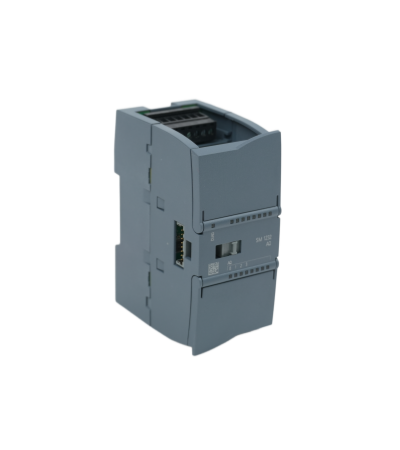

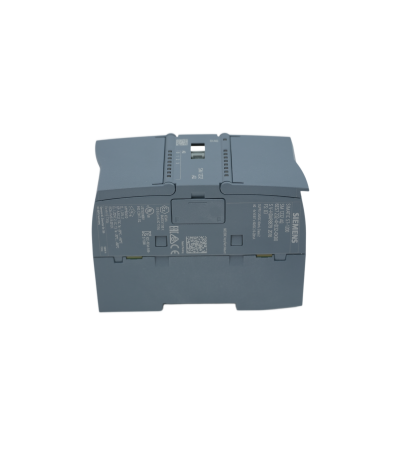

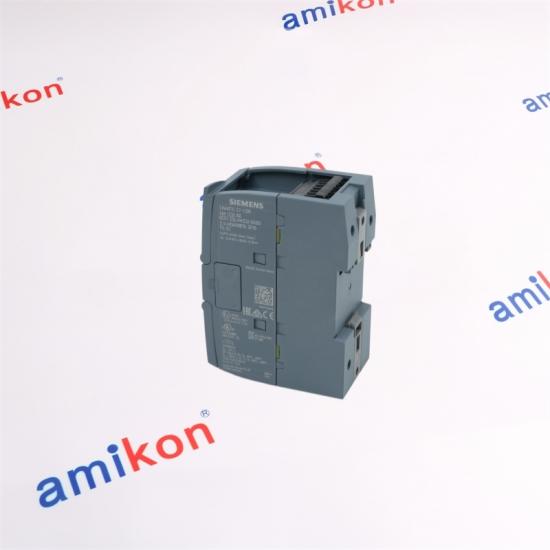

6ES7232-4HD32-0XB0

The 6ES7232-4HD32-0XB0 is a SIMATIC S7-1200 SM 1232 analog output module with four configurable analog output channels. It is designed for applications requiring voltage or current analog signals to actuators and other field devices, with voltage resolution up to 14 bit and current resolution of 13 bit.

Analog Output Built for S7-1200 Control Architectures

The SM 1232 4-channel analog output module expands a SIMATIC S7-1200 controller with four analog outputs. Each output can operate as a voltage or current output, supporting ±10 V voltage operation and 0–20 mA / 4–20 mA current operation.

Its compact 45 mm signal-module format makes it suitable for control cabinets where additional analog actuator channels are required without introducing a separate external signal-conversion stage. Siemens specifies the module for analog actuator connections and complex automation tasks within the S7-1200 environment.

For a precise quotation, please send the Part Number, Quantity, Destination, Required Date, and Machine/System. These details help us confirm the suitable supply arrangement and delivery schedule.

Four analog outputs are available as voltage or current channels for actuator-oriented control applications.

The output stage supports both voltage and current signal ranges, allowing different analog actuator interfaces to be handled by the same module.

Voltage outputs provide 14-bit resolution; current outputs provide 13-bit resolution.

Specifications

Key electrical and mechanical characteristics of the SM 1232 four-output configuration.

SM 1232 Analog Output Family

The SM 1232 analog output family is part of the SIMATIC S7-1200 signal-module architecture. Within the family, the 6ES7232-4HD32-0XB0 provides four analog output channels, while the 6ES7232-4HB32-0XB0 provides two.

For an installation requiring more analog actuator channels, the four-output configuration can reduce the need for multiple smaller analog output modules while maintaining the same S7-1200 signal-module concept.

Where the 4 AO Configuration Adds Value

The module is suited to S7-1200 control applications in which a controller must generate analog commands for field actuators. Typical engineering scenarios include analog speed references, valve or damper positioning, process-control setpoints and other proportional actuator commands where ±10 V or 0/4–20 mA interfaces are required.
