Product Details

SIMATIC S7-1200 / THERMOCOUPLE INPUT

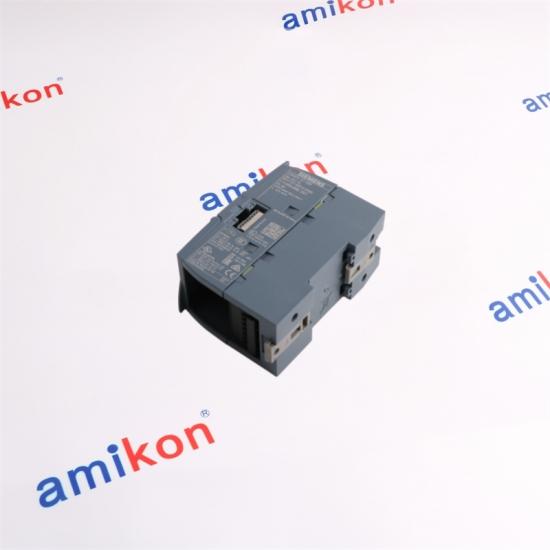

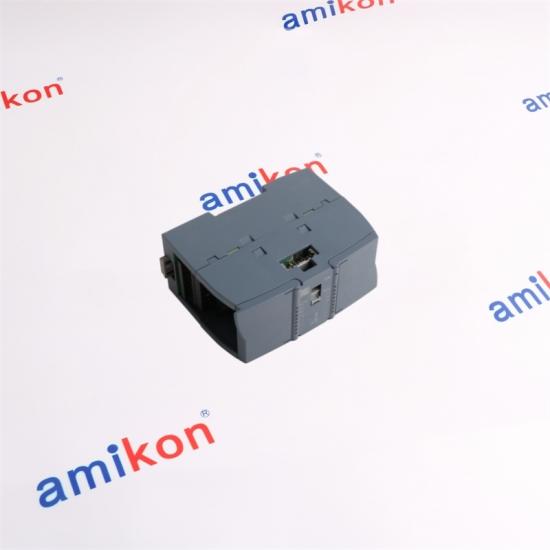

SIEMENS 6ES7231-5QF32-0XB0

The 6ES7231-5QF32-0XB0 is a SIMATIC S7-1200 SM 1231 thermocouple input module with eight analog input channels. It expands an S7-1200 station for multichannel temperature acquisition from supported thermocouple sensor types.

PRIMARY ROLE

SM 1231 TC / 8 AI

The module is intended for thermocouple measurement, not general voltage or current acquisition. Correct sensor type, compensation method, cable, grounding, channel setup and diagnostic evaluation are essential for stable temperature values.

Module type	SM 1231 TC analog input module
Input capacity	8 thermocouple analog inputs
Controller family	SIMATIC S7-1200
Measurement task	Thermocouple temperature acquisition
Configuration	Channel parameters set in the S7-1200 project
Package size	Approximately 9.0 x 10.7 x 5.8 cm
Net weight	Approximately 0.191 kg
Origin	China

Need an exact configuration match?SEND THE FULL ARTICLE NUMBER

SYSTEM RELATIONSHIP

Eight Temperature Channels Beside the S7-1200 CPU

The SM 1231 TC mounts in the S7-1200 signal-module chain and transfers converted temperature values and diagnostics through the internal bus. Thermocouple extension cable, polarity, junction placement, grounding and configured sensor type influence the complete measurement chain.

Member	Role	Selection Difference
6ES7231-5QF32-0XB0	SM 1231 TC, 8 thermocouple inputs	Higher channel density for temperature-only measurement
6ES7231-5QD32-0XB0	SM 1231 TC, 4 thermocouple inputs	Lower channel count for smaller temperature tasks
6ES7231-5PF32-0XB0	SM 1231 RTD, 8 inputs	For resistance temperature sensors rather than thermocouples
SM 1231 universal analog variants	Voltage/current acquisition	Different signal conditioning; not a thermocouple substitute
