SIMATIC DP
ET 200S
|
ANALOG INPUT MODULE
6ES7134-4GD00-0AB0
4AI I 2WIRE ST · 4–20 mA · 13 bit
Four-channel analog current input module for 2-wire transducers within the SIMATIC ET 200S distributed I/O platform.
|
CORE CONFIGURATION
INPUTS
4 analog current inputs SIGNAL
4–20 mA RESOLUTION
13 bit WIDTH
15 mm |
|
ENGINEERED FOR FOUR-CHANNEL CURRENT ACQUISITION

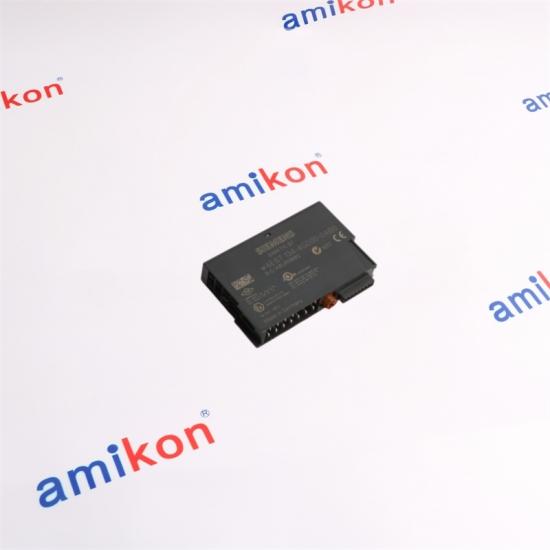

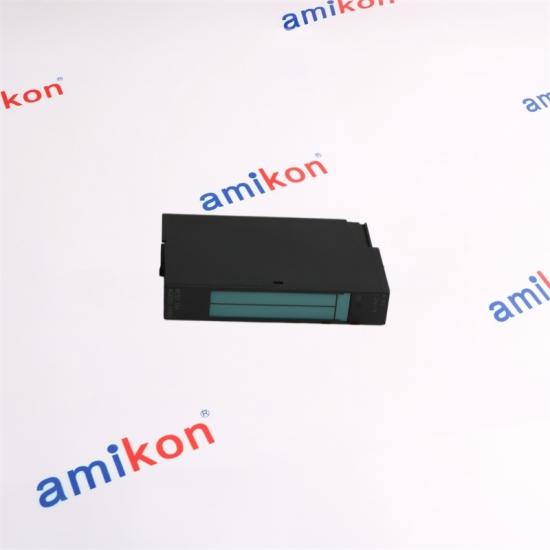

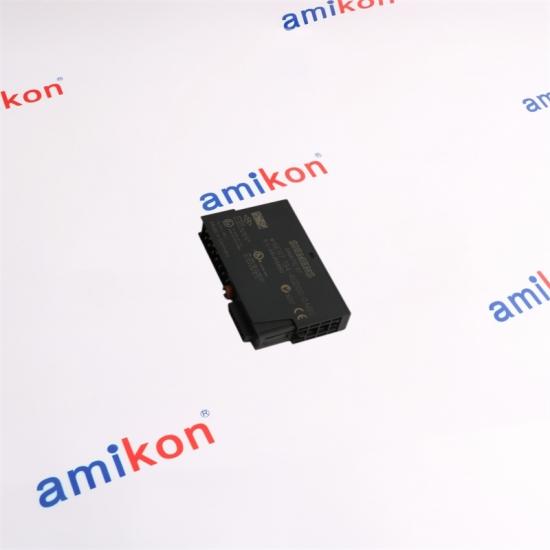

The Siemens 6ES7134-4GD00-0AB0 is an ET 200S electronic module with four analog current inputs. It is designed for 2-wire transducers and accepts a rated 4–20 mA input range with 13-bit resolution. The module occupies 15 mm of installation width and communicates its measured values through the ET 200S distributed I/O architecture.
Signal concept
A two-wire transmitter is supplied through the load-voltage arrangement of the ET 200S station, while the module measures the resulting 4–20 mA process current. The four channels use separate signal-positive and signal-negative terminals. The module uses an integrating measuring principle. Parameterized integration can be combined with 50 Hz or 60 Hz interference-frequency suppression. The maximum cycle time for all channels is approximately 40 ms under the corresponding parameter setting.
|
WHY THIS MODULE MATTERS
Four current channels in a compact 15 mm module
Dedicated design for 2-wire transmitters
4–20 mA process signal acquisition
13-bit analog resolution
Integrated diagnostic indication through SF LED
|
| Parameter | 6ES7134-4GD00-0AB0 |
| Product type | SIMATIC DP ET 200S 4AI I 2WIRE ST analog electronic module |
| Number of analog inputs | 4 |
| Input signal | 4–20 mA |
| Resolution | 13 bit |
| Input resistance | 25 Ω |
| Two-wire transmitter load | Maximum 750 Ω |
| Load voltage L+ | 24 VDC from power module |
| Reverse polarity protection | Yes |
| Transducer supply | Yes |
| Transducer supply short-circuit protection | Yes; approximately 200 mA for the module |
| Cycle time, all channels | Approximately 40 ms; 33–40 ms depending on setting |
| Integration time | 16.7 ms / 20 ms |
| Interference suppression | 50 Hz / 60 Hz |
| Measured-value smoothing | Parameterizable; 4 levels |
| Address space | 8 bytes |
| Parameter length | 7 bytes |
| Module width | 15 mm |
| Approximate weight | 40 g |
| Shielded cable length | Maximum 200 m |
| Electrical isolation | Between channels and backplane bus: yes; between channels: no |
| Diagnostic indication | Red SF LED for group fault |
|
CHANNEL ARCHITECTURE
M0+ / M0− M1+ / M1−
M2+ / M2− M3+ / M3−
Each channel provides a positive and negative input terminal for the corresponding current signal.
|
FIELD CONNECTION LOGIC
The module is intended for 2-wire current transducers. When replacing an installed unit, the existing terminal-module arrangement and transmitter wiring should be checked before ordering.
|
|
INTEGRATING MEASUREMENT
The module uses an integrating measuring principle. The integration time can be parameterized according to the selected interference-frequency suppression.
|
SIGNAL SMOOTHING
Measured-value smoothing can be parameterized in four levels. The available time constants are related to the module cycle time.
|
DIAGNOSTIC VISIBILITY
A red SF LED indicates a group fault, while diagnostic functions can be read by the control system through the ET 200S station.
|
|
ET 200S
SAME PLATFORM
|
The 6ES7134-4GD00-0AB0 belongs to the SIMATIC ET 200S distributed I/O platform. ET 200S uses modular electronic modules installed in station assemblies, allowing different I/O functions to be combined within the same distributed station architecture.
For current-input applications, the selection should focus on the transmitter connection concept, signal range, number of channels, required resolution, station architecture and the terminal arrangement already present in the machine.
Replacement focus: When this exact order number is being used as a replacement part, matching the existing ET 200S station configuration is particularly important because the electrical interface, channel arrangement and terminal assignment determine whether the replacement fits the installed setup.
|
| DELIVERY 3–5 days |
WARRANTY 12 months |
PACKAGING Brand new |
PAYMENT T/T |
| Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS | |||
| Part Number | Quantity | Destination | Required Date | Machine/System |
| 01 |
Can 6ES7134-4GD00-0AB0 be used as a direct replacement in an existing ET 200S station?
It can be considered when the existing station is configured for the same ET 200S electronic-module architecture, four 2-wire current inputs and the same terminal arrangement. Before ordering, compare the installed module order number, terminal module arrangement and channel wiring rather than matching only the physical width.
|
| 02 |
Is 6ES7134-4GD00-0AB0 the right choice when the installed transmitter is a 2-wire 4–20 mA device?
The module is specifically designed for 2-wire transducers and its rated current input range is 4–20 mA. It also provides transducer supply through the load-voltage arrangement. If the field device is powered independently or uses a different signal type, the complete electrical arrangement should be checked before selecting this module.
|
| 03 |
What should be checked before buying 6ES7134-4GD00-0AB0 for an older machine?
Confirm the exact order number, ET 200S station architecture, terminal-module configuration, number and type of field transmitters, 4–20 mA loop arrangement and available installation space. Siemens currently classifies this exact order number as a spare part, so matching the installed configuration is especially important for maintenance purchasing.
|
| 04 |
How does the 13-bit resolution of 6ES7134-4GD00-0AB0 affect an existing 4–20 mA loop application?
The module converts the 4–20 mA signal into the SIMATIC S7 analog-value representation with 13-bit resolution. For a replacement application, the important point is to retain the same signal range and understand how the existing PLC program interprets the resulting analog value.
|
| 05 |
Why is the exact 6ES7134-4GD00-0AB0 order number important when replacing a failed ET 200S analog module?
Different ET 200S analog modules can vary in channel function, transmitter connection and signal handling. The 6ES7134-4GD00-0AB0 is specifically a four-channel 2-wire 4–20 mA module. Matching the exact order number helps preserve the existing electrical and software configuration instead of selecting a visually similar module with a different function.
|
