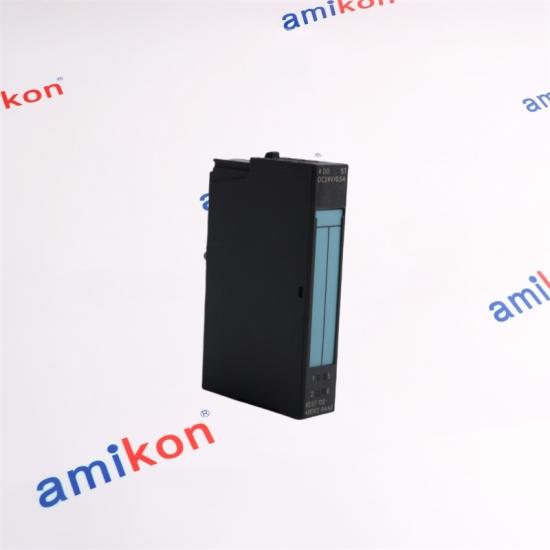

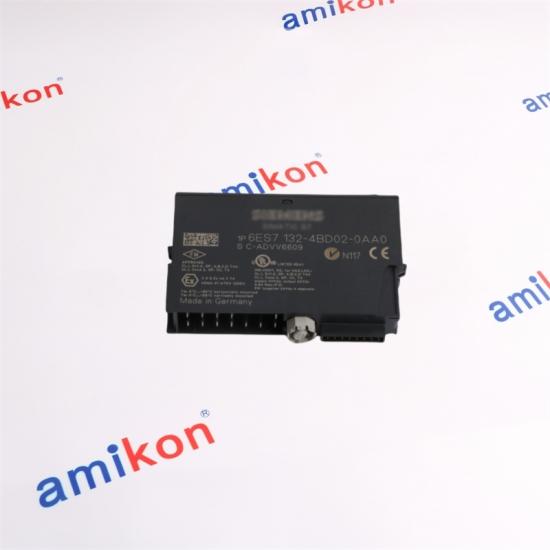

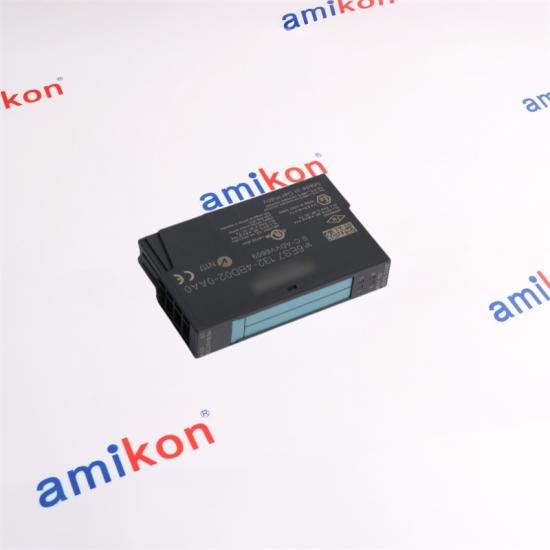

SIEMENS 6ES7132-4BD02-0AA0 ET 200S Digital Output Module

Calculate shipping

Quotation Request

SIMATIC DP · ET 200S

6ES7132-
4BD02-0AA0

4 DO Standard
24 V DC / 0.5 A

DIGITAL OUTPUT MODULE

Four-Channel Standard Output

I/O	OUTPUT CHANNELS 4 digital outputs
24V	LOAD VOLTAGE 24 V DC
A	RATED OUTPUT CURRENT 0.5 A per output

Source output (PNP) · Short-circuit protection

AMIKON LIMITED

We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.

✉ Miya zheng · SALES EMAIL sales@amikon.cn ☎ 86-18020776792

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

SIEMENS · ET 200S

OVERVIEW TECHNICAL INTEGRATION CONTACT FAQ RELATED

SIMATIC DP · DISTRIBUTED DIGITAL OUTPUT

6ES7132-4BD02-0AA0

ET 200S · 4DO STANDARD · DC 24 V / 0.5 A

A compact ET 200S digital output module with four standard DC outputs. The module is designed for 24 V DC load circuits and provides 0.5 A rated output current per channel, with short-circuit protection at the digital outputs.

OUTPUTS

4 DO

LOAD VOLTAGE

24 V DC

CURRENT / CH.

0.5 A

MODULE PROFILE

ET 200S DIGITAL OUTPUT

01	Standard digital output architecture
02	15 mm module width
03	Backplane bus potential separation

Part status: Siemens lists this article as a spare part and discontinued product.

TECHNICAL ARCHITECTURE

Four Output Channels. Compact ET 200S Footprint.

Output Architecture

The 6ES7132-4BD02-0AA0 provides four digital outputs. Each output has a rated current of 0.5 A at the signal “1”. The permissible signal-current range is specified from 7 mA to 600 mA.

OUTPUT COUNT 4 channels	RATED CURRENT 0.5 A / channel
SHORT-CIRCUIT Protected	LOAD VOLTAGE 24 V DC

◆

Switching & Load Behaviour

Resistive load	800 Hz max.
Inductive load	2 Hz max.
Lamp load	10 Hz max.
Total output current / module	2 A max.

The module supports applications involving solenoid valves, DC contactors and indicator lights.

WIDTH

15 mm

HEIGHT

81 mm

DEPTH

52 mm

WEIGHT

approx. 40 g

ET 200S SYSTEM CONTEXT

Designed around the distributed-I/O concept

The module belongs to the SIMATIC ET 200S distributed I/O family. In an existing ET 200S station, the electronic module works within the station architecture rather than functioning as a standalone controller.

01 Load-side supply Rated load voltage is 24 V DC and is supplied from the power module. Reverse-voltage protection is specified when the same load voltage is used at the power module.	02 Electrical separation The digital outputs are not individually potential-separated from one another, while the digital outputs are potential-separated from the backplane bus.
03 Fast output response With a resistive load, the maximum output delay is specified as 50 µs from “0” to “1” and 120 µs from “1” to “0”.	04 Isochronous operation Isochronous operation is supported, providing a defined operating mode for applications that require synchronized process timing.

Application orientation: the output stage is suitable for switching loads such as solenoid valves, DC contactors and indicator lights when the connected load remains within the specified electrical limits.

PART REQUEST DESK

Need 6ES7132-4BD02-0AA0?

Send the exact part number together with your quantity and application details. This helps us check the correct configuration for your existing ET 200S installation.

✉ EMAIL SALES sales@amikon.cn	◉ PHONE / WHATSAPP 86-18020776792
Sales manager: Miya zheng

DELIVERY
3–5 days

WARRANTY
12 months

PACKAGING
Brand new

DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS

Payment term: T/T

For quotation: Part Number · Quantity · Destination · Required Date · Machine/System

PURCHASING & CONFIGURATION QUESTIONS

6ES7132-4BD02-0AA0 FAQ

01	Can 6ES7132-4BD02-0AA0 be used as a direct replacement in an existing ET 200S station? It is an ET 200S electronic module and is specifically associated with the existing ET 200S architecture. Replacement should still be checked against the installed station configuration, terminal arrangement, load voltage and project requirements rather than relying on the family name alone.
02	Is the 0.5 A rating of 6ES7132-4BD02-0AA0 specified for each output? Yes. The rated output current is 0.5 A for each digital output at signal “1”. The module has four outputs, while the maximum total current of the outputs is specified as 2 A per module.
03	What should be checked when 6ES7132-4BD02-0AA0 is driving an inductive load? The switching-frequency limit for inductive loads is 2 Hz maximum. The module also specifies limitation of the inductive shutdown voltage to L+ minus 55 to 60 V. The actual load current and electrical characteristics should remain within the specified limits.
04	Does 6ES7132-4BD02-0AA0 provide channel-to-channel potential separation? No. The digital output channels are not potential-separated from one another. The digital outputs are, however, potential-separated from the backplane bus. This distinction matters when checking the electrical arrangement of an existing station.
05	What should buyers verify before ordering 6ES7132-4BD02-0AA0 for an older machine? Verify the complete part number, the existing ET 200S station, terminal arrangement, 24 V DC load circuit, connected load type, required output current and project configuration. Siemens currently classifies this article as a spare part / discontinued product, making exact part-number verification particularly important for maintenance purchasing.
