SIMATIC HMI · TP177B · PN/DP
6AV6642-0BA01-1AX0

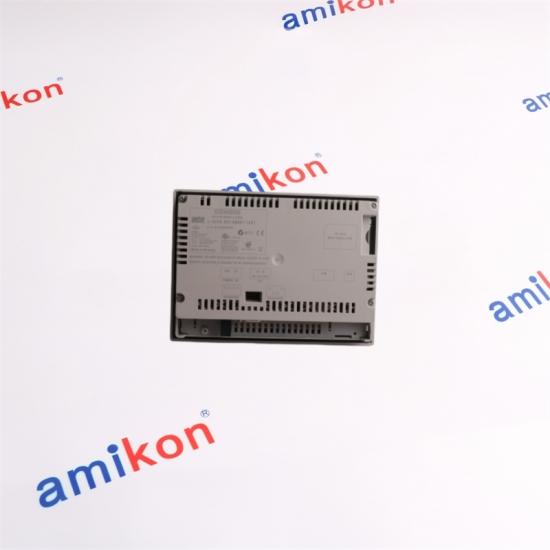

TP177B PN/DP Color Touch Panel
COMPACT OPERATOR INTERFACE

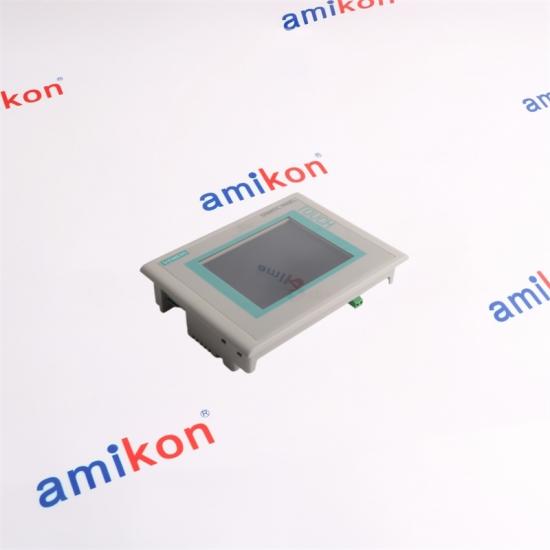

The Siemens 6AV6642-0BA01-1AX0 is a TP177B PN/DP operator panel designed for machine and plant operation through a compact 5.7-inch STN color display, analog resistive touch operation and industrial communication interfaces.
|
ORDER IDENTITY
6AV6642
Industrial HMI replacement focus
|
|
DISPLAY & OPERATION
The panel uses a 5.7-inch STN color display with 320 × 240 pixel resolution and 256 colors. Operator input is provided through an analog resistive touch screen. System, numeric, alphanumeric and hexadecimal input functions are supported.
|
PROCESSING & MEMORY
A 32-bit RISC processor operating at 200 MHz provides the processing platform for the TP177B. Flash/RAM memory architecture provides 2,048 KB of usable user memory.
PROCESSOR
32-bit RISC / 200 MHz
USER MEMORY
2,048 KB
Hardware clock is synchronizable and does not use battery backup.
|

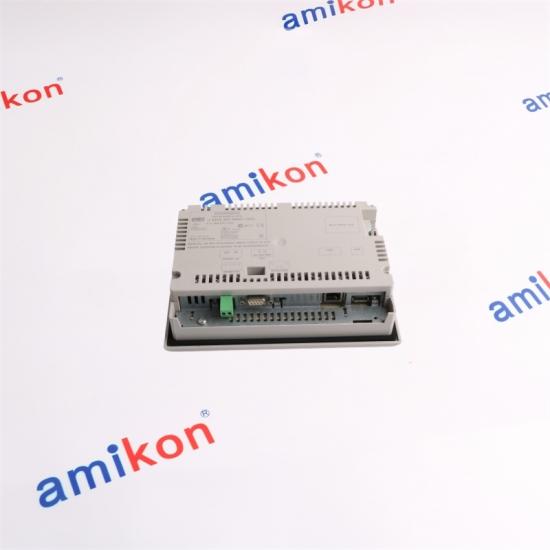

COMMUNICATION LAYER
MPI / PROFIBUS-DP communication architecture
|
|
SUPPLY
24 V DC
|
FRONT
IP65
|
REAR
IP20
|
MMC
Up to 128 MB
|
BACKLIGHT MTBF
50,000 h
|
|
MECHANICAL & ENVIRONMENTAL PROFILE
|
FUNCTIONAL SCOPE
The TP177B platform is intended for operator control and monitoring tasks. Its compact display and touch interface can be used for process-value visualization, process-value entry, message handling, alarm acknowledgement and recipe administration within the configured HMI application.
|
|
TP 177B PN/DP
6AV6642-0BA01-1AX0
5.7-inch STN color display MPI / PROFIBUS-DP RS422 + RS485 + USB Ethernet interface Analog resistive touch |
TP 177B PN / DP Variants
Related TP177B executions use the same compact 170-series concept while changing the communication configuration. The PN/DP execution should not be substituted solely by appearance; the communication interface and installed control architecture must match the existing application.
|
TP / OP 177B Family
The TP177B and OP177B sit within the SIMATIC 170-series panel family. Touch-oriented TP versions and operator-panel variants should be differentiated by their operator interface and exact order number before replacement.
|
|
DISPLAY
5.7" / 320×240
|
NETWORK
MPI / PROFIBUS-DP
|
ENGINEERING
WinCC flexible 2005+
|
MOUNTING
198×142 mm Cutout
|
| 01 · 7-Day Contact Please contact us within 7 days if you have any question after you receiving the items. |
02 · Item Condition The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns. |
03 · Shipping Cost The buyer is responsible for all the shipping cost incurred. |
|
Can 6AV6642-0BA01-1AX0 be treated as a direct replacement when an existing TP177B stops working?
A direct replacement decision should not be based only on the TP177B name. The complete order number, PN/DP communication arrangement, connector configuration, installed HMI project and panel cutout should be checked first. The 6AV6642-0BA01-1AX0 uses a 212 × 156 mm front format with a 198 × 142 mm installation cutout.
|
Does 6AV6642-0BA01-1AX0 fit an application that still communicates through MPI or PROFIBUS-DP?
Yes, the PN/DP execution is built around the MPI / PROFIBUS-DP communication architecture. The exact controller connection and configured communication parameters should still be matched against the installed application before replacement.
|
|
Is 6AV6642-0BA01-1AX0 suitable when the machine requires an HMI with a resistive touch interface?
The panel uses an analog resistive touch screen. This is an important compatibility point when replacing an older HMI because the operator-interface technology, screen layout and existing panel project should be considered together rather than selecting a replacement only by screen size.
|
What should be checked before ordering 6AV6642-0BA01-1AX0 for an HMI cabinet with limited panel space?
Check the 212 × 156 mm front dimensions and 198 × 142 mm installation cutout, then verify the available rear clearance and connector access. The panel is designed for vertical mounting, with a maximum permissible inclination of 35° without external ventilation.
|
|
If a 6AV6642-0BA01-1AX0 replacement must retain the existing project, what is the key engineering consideration?
The TP177B is configured with WinCC flexible, with the product data specifying WinCC flexible Compact Version 2005 or higher for the configuration environment. Before transferring an existing project, the target panel execution and compatible runtime/configuration version should be checked so that the installed project matches the replacement panel.
|
|
