SIMATIC HMI · TP 270 SERIES

6AV6545-0CA10-0AX0

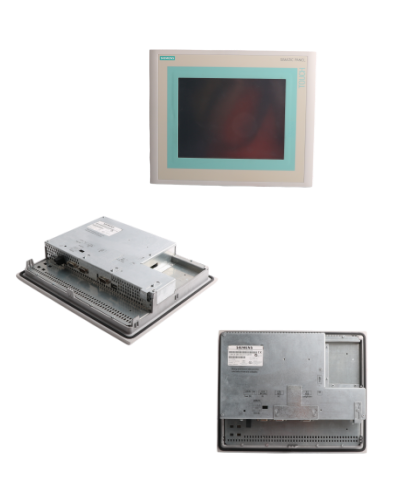

SIMATIC TP270 6" Touch Panel

5.7" STN Color Operator Interface

A compact touch operator panel designed for configured machine visualization and operator interaction within the TP270 family.

5.7"

Active display diagonal

320×240

Pixel resolution

2 MB

Configuration memory

TP270 / COLOR TOUCH

Legacy HMI architecture with a compact operator footprint

Display	STN / 256 colors
Input	Touch screen
Supply	24 V DC
Operating system	Windows CE

```

Hardware Profile

The 6AV6545-0CA10-0AX0 belongs to the SIMATIC TP270 touch panel family. Its compact 5.7-inch color display and touch operation are suited to machine-level visualization where a dedicated operator station is required.

The panel uses 2 MB configuration memory and a Windows CE operating environment. Its TP270 architecture supports established industrial communication and peripheral connection concepts.

Product family	SIMATIC HMI TP270
Panel type	TP270 6" touch panel
Display	5.7" STN color LCD
Resolution	320 × 240 pixels
Display colors	256 colors
Control	Touch screen
Configuration memory	2048 KB
Processor	RISC CPU
Operating system	Windows CE
Supply voltage	24 V DC; permitted range +18 to +30 V DC
Serial interfaces	2 × RS232, 1 × RS422, 1 × RS485
USB	1 × USB interface
External storage	CompactFlash card slot
Dimensions	Approx. 212 × 156 × 59 mm
Weight	Approx. 1 kg

```

01 / OPERATOR

Touch Interaction

Configured screens can present operating values, controls, alarms and machine states through direct touch interaction.

02 / DISPLAY

Compact Visualization

The native 320 × 240 pixel format defines the working canvas for legacy TP270 projects and operator screen layouts.

03 / COMMUNICATION

Industrial Interfaces

The TP270 architecture provides serial communication options together with MPI/PROFIBUS-oriented controller integration within its supported configuration.

04 / STORAGE

Project Data Handling

The 2 MB configuration memory and CompactFlash capability support the legacy panel's project and external storage architecture.

```

TP270 FAMILY / SYSTEM POSITION

A compact point in the classic SIMATIC HMI architecture

The 6AV6545-0CA10-0AX0 is the 6-inch TP270 touch variant. Within the same 270-generation family, screen size and operator-input concept distinguish the panel variants, while the broader architecture is built around Windows CE, configured visualization and industrial controller communication.

6AV6545-0CA10-0AX0	TP270 6"	5.7" STN color / 320×240 / touch / 2 MB
TP270 10" family variant	Larger operator area	10.4" class display with the same TP270-generation touch concept
OP270 6"	Operator panel	Same 270-generation platform, but with operator-control hardware rather than the TP270 touch format
MP270B	Multi Panel	Broader 270-generation HMI platform for multi-purpose visualization and operator applications
Successor article	6AV6545-0CA10-0AX1	When replacing an installed panel, verify project compatibility, mounting, wiring, communication settings and required accessories before ordering.

REPLACEMENT CHECK

For a 6AV6545-0CA10-0AX0 replacement, compare the complete article number, panel dimensions, 24 V DC wiring, controller connection, communication parameters, configured project and storage requirements. A visually similar TP270-family panel is not automatically a drop-in substitute.

```
