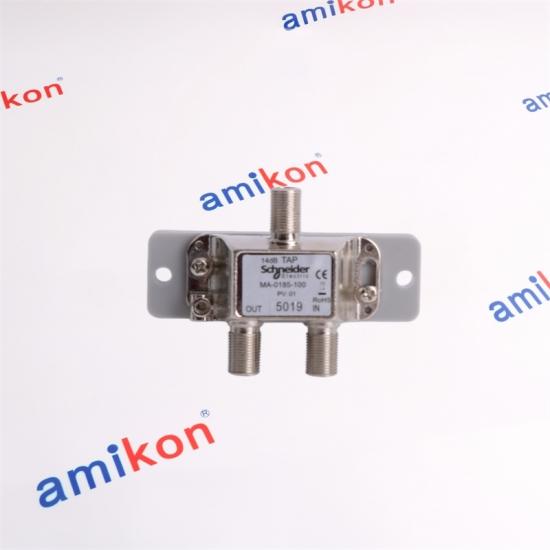

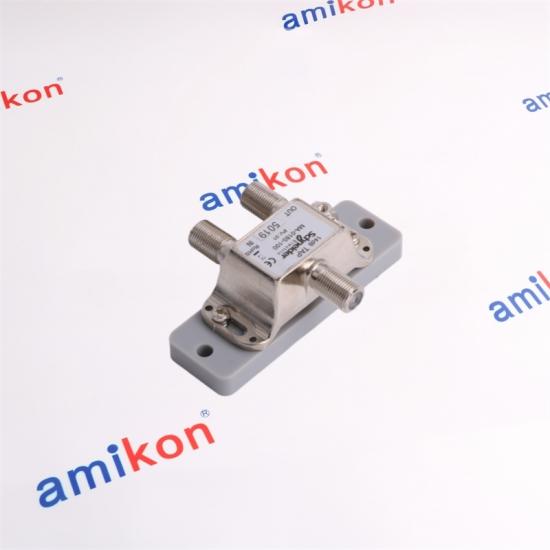

Schneider MA-0185-100 Modicon series Tap

Choose Amikon

We're faster.

No matter where parts are in the world, we will strive to find all kinds of spare parts for your equipment quickly and efficiently.

l International Delivery on the Day

l Quick Response Support

l Intercontinental Cooperation Network

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

Descripution

The MA-0185-100 part from Schneider Electric functions as a tap within the Modicon series. This component is essential for facilitating connections within networking setups. It is compatible with both trunk and drop cables, providing a versatile solution for various configurations. The design supports electrical isolation between the drop and trunk lines, which enhances safety and connectivity reliability.

This tap has CE and RoHS certifications, confirming its compliance with important safety and environmental regulations. It is available as a single unit per set and contains a threaded male connector, which simplifies integration with existing systems. To prevent accidental cable disconnections, the MA-0185-100 incorporates protective features, ensuring consistent and stable connections. This product is particularly effective for use in Modicon Quantum Automation Systems, making it a suitable choice for industrial applications where connectivity is crucial.

Specifications

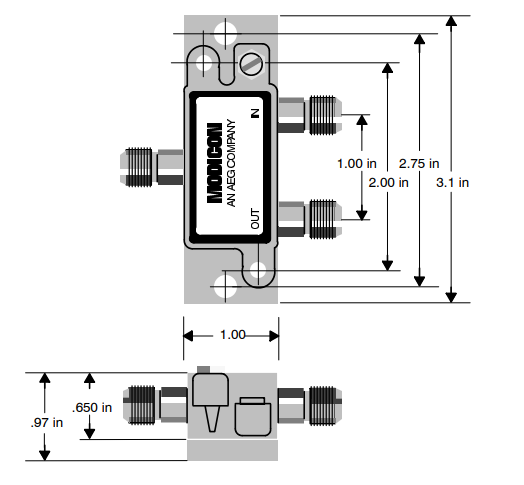

Modicon MA-0185-100 Taps connect the drop cables to the main trunk cable and isolate the RIO drop adapter from the rest of the network. This tap is nondirectional —it allows signals to be propagated in both directions along the trunk cable. An MA-0185-100 tap has one drop port and two trunk ports.

Note: Although the trunk ports are labeled IN and OUT, these labels can be ignored—i.e., the tap is not directional.

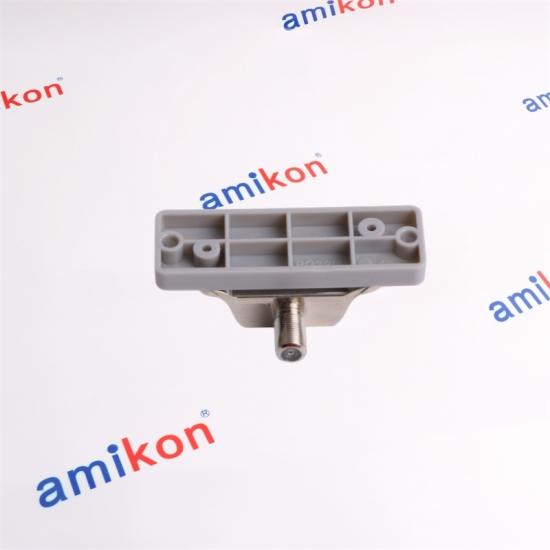

An MA-0185-100 tap is supplied with a plastic isolator on its back. The tap isolates the drop adapter from the trunk cable by 14 dB.

Unused ports on the taps must be terminated—open ports along the network must be terminated with a Modicon 52-0402-000 Tap Port Terminator, and the last (trunk-out) port of the last tap on the network must be terminated with a Modicon 52-0422-000 Trunk Terminator

Please contact us for more related Information！！！

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

FAQ

Q1: What primary communication role does the Schneider MA-0185-100 fulfill within a Modicon Quantum automation network?
A: The Schneider MA-0185-100 serves as a coaxial network repeater, extending communication distance while preserving signal integrity and ensuring stable data transmission between Modicon Quantum devices.

Q2: How does the Schneider MA-0185-100 optimize coaxial network performance in demanding industrial automation environments?
A: The Schneider MA-0185-100 regenerates communication signals to minimize attenuation and transmission errors, improving network reliability across long-distance coaxial installations.

Q3: Why is the Schneider MA-0185-100 an effective solution for expanding Modicon Quantum communication infrastructures?
A: The Schneider MA-0185-100 enables seamless network expansion without compromising communication quality, making it ideal for distributed control systems that require dependable coaxial connectivity.

Q4: Which automation applications can leverage the Schneider MA-0185-100 to achieve enhanced communication stability?
A: The Schneider MA-0185-100 is suitable for manufacturing plants, process control systems, utilities, and other industrial applications where reliable Modicon Quantum network communication is essential.

Q5: What technical advantages make the Schneider MA-0185-100 a dependable choice for long-term industrial operation?
A: The Schneider MA-0185-100 features industrial-grade construction, reliable signal regeneration, straightforward installation, and compatibility with Modicon Quantum coaxial communication networks, helping maximize system uptime and simplify maintenance.
