ALTIVAR PROCESS ATV900 • HIGH POWER DRIVE

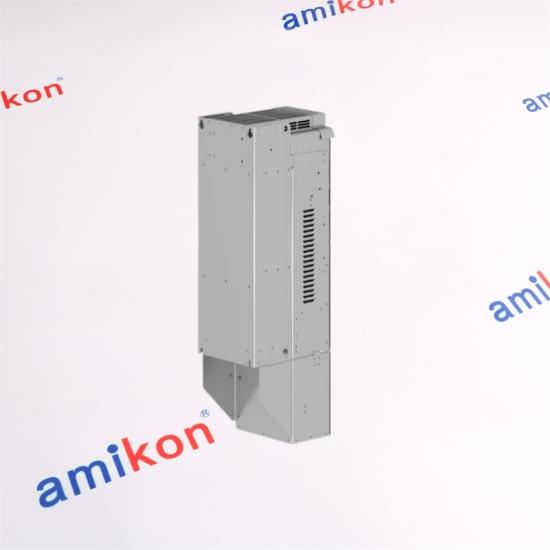

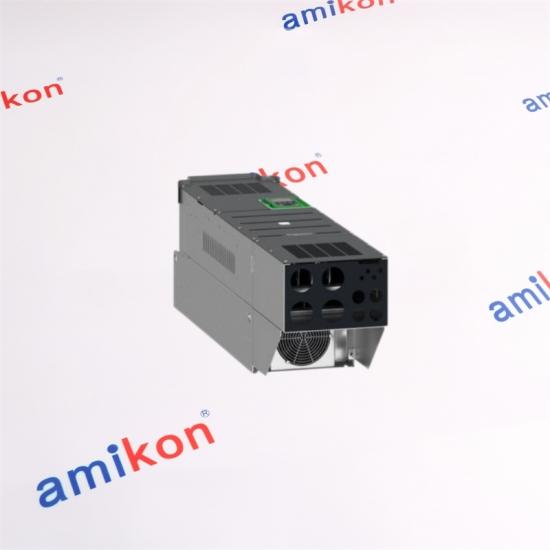

ATV930C11N4
Altivar Process ATV930 Variable Speed Drive
110 kW • 380–480 V • Three-Phase • Braking Unit • IP20
Process-oriented variable speed control
The Schneider Electric ATV930C11N4 is an Altivar Process ATV930 variable speed drive for three-phase motors in the 380–480 V range. It is rated for 110 kW in Normal Duty and 90 kW in Heavy Duty, with a nominal output current of 211 A in Normal Duty and 173 A in Heavy Duty. The execution includes an integrated braking unit and provides IP20 protection.
The ATV930 platform combines motor control, process monitoring, embedded power measurement and energy-oriented functions in an industrial drive architecture.
|
| Motor duty | Normal Duty: 110 kW, 211 A. Heavy Duty: 90 kW, 173 A. The drive can deliver up to 150% of nominal current for 60 seconds in the specified Heavy Duty operating condition. |
| Power supply | Three-phase 380–480 V AC, 50/60 Hz. The drive is designed around a 10% symmetrical mains voltage tolerance and 5% symmetrical mains frequency tolerance. |
| Motor control | Supports asynchronous and synchronous motor applications within the ATV900 platform. Output frequency can reach up to 500 Hz. |
| Safety functions | The ATV930 platform provides Safe Torque Off and supports safety-oriented functions such as Safe Stop 1 and Safely Limited Speed when the applicable configuration and options are used. |
| Process functions | Embedded power measurement and energy dashboard functions, process monitoring and control, asset monitoring and protection, drift monitoring and Stop & Go functionality are part of the ATV930 platform. |
|
|
|
CURRENT WINDOW
ND / HD
The duty classification changes the usable motor power and current capability.
|
|
|
MECHANICAL SCALE
320 × 852 × 393
Width × Height × Depth, mm
|
|
|
FAMILY
ATV930
Altivar Process drives for industrial process applications, with common control architecture, process functions and a broad range of power ratings.
|
Why the complete reference matters
ATV930C11N4 and ATV930C11N4C share the same basic C11N4 power designation, but the suffix changes the hardware execution. ATV930C11N4 is supplied with a braking unit and IP20 protection, while ATV930C11N4C is the version without the braking unit and is supplied for enclosure integration. They should therefore not be treated as interchangeable simply because the power rating is the same.
|
| SELECTION CHECK | For replacement work, compare motor duty, current, voltage, braking arrangement, enclosure/protection, dimensions and control architecture together. A nearby ATV930 rating is not automatically an equivalent replacement. |
|
AMIKON LIMITED
Source the exact drive you need
For ATV930C11N4 inquiries, send the complete part number together with quantity, destination and required date. If the drive is replacing an installed unit, the motor rating, mains voltage and existing configuration are useful for matching.
|
| DELIVERY | 3–5 Days | WARRANTY | 12 Months |
| PACKAGING | Brand New | PAYMENT | T/T |
| SHIPPING | E-packing / FedEx / EMS / TNT / DHL / UPS | ||
| 01 | Please contact us within 7 days if you have any question after you receiving the items. |
| 02 | The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns. |
| 03 | The buyer is responsible for all the shipping cost incurred. |
| 01 |
Can Schneider ATV930C11N4 be selected as a 110 kW drive for every 110 kW motor application?
Not automatically. The 110 kW rating applies to Normal Duty. In Heavy Duty, the corresponding motor power is 90 kW. The actual motor current, load profile, overload requirement, supply voltage and operating conditions should therefore be checked before selection.
|
| 02 |
What is the practical difference between Schneider ATV930C11N4 and ATV930C11N4C when replacing an installed drive?
The hardware execution is different. ATV930C11N4 is supplied with a braking unit and IP20 protection, while ATV930C11N4C is the version without the braking unit intended for enclosure integration. A replacement should therefore match the existing braking arrangement and enclosure design rather than only the 110 kW rating.
|
| 03 |
Why does Schneider ATV930C11N4 have both Normal Duty and Heavy Duty ratings for the same drive?
The two duty classifications represent different load requirements. ATV930C11N4 is rated at 211 A in Normal Duty and 173 A in Heavy Duty. Heavy Duty is associated with the lower 90 kW motor rating and allows a specified 150% overload for 60 seconds. The duty mode should be selected according to the actual load profile rather than simply the motor nameplate power.
|
| 04 |
What should be checked if a Schneider ATV930C11N4 is being installed into an existing control cabinet?
Check the 320 × 852 × 393 mm envelope, approximately 82 kg mass, IP20 construction, ventilation and heat dissipation, cable routing, clearances, grounding, power terminals and control connections. Cabinet temperature and switching-frequency-related derating also need to be considered for the actual installation.
|
| 05 |
If a customer has an older Schneider ATV930C11N4, is the complete part number important when sourcing a spare?
Yes. The complete reference distinguishes the specific hardware execution. In particular, the difference between ATV930C11N4 and ATV930C11N4C changes the braking-unit configuration and protection/enclosure arrangement. For an installed spare, matching the complete reference reduces the risk of receiving a physically similar but differently configured drive.
|
