Summary

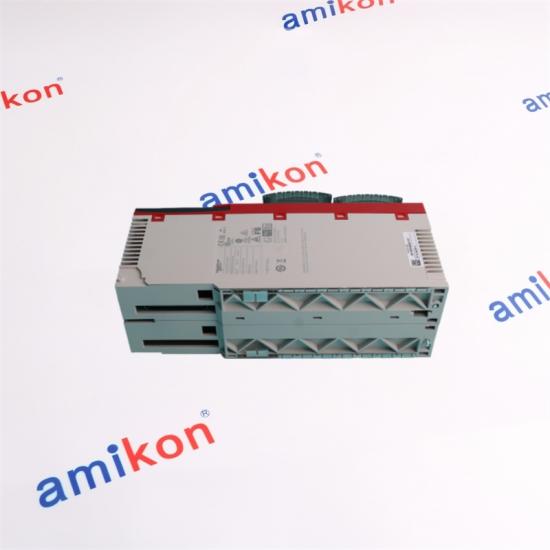

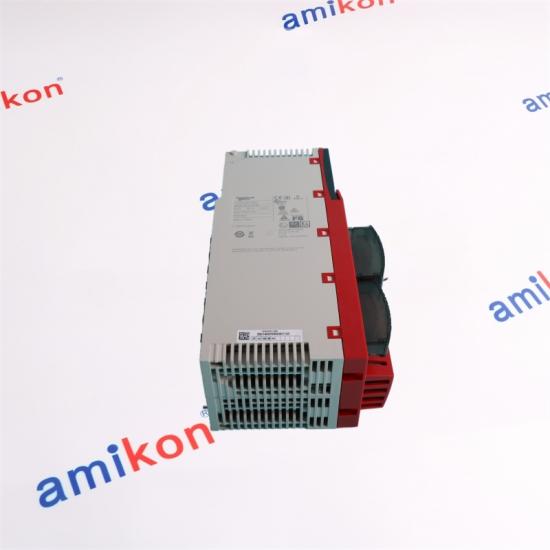

140CPU67160S is a Unity-based hot-standby processor for the Modicon Quantum rack that keeps critical processes running by swapping from master to backup in <500 ms while offering 266 MHz PowerPC performance and multi-protocol Ethernet/serial links on a single module.
Details
|
CPU: PowerPC 266 MHz, 10.28 Kinst/ms Boolean throughput |
|
Memory: 1 MB internal RAM, 8 MB Flash, expandable to 7 MB program/8 MB file via dual PCMCIA slots |
|
Hot-standby: <500 ms bumpless switch-over via 100 Mbps Ethernet or fiber link, SIL/PL e capable |
|
Ports: 1× Ethernet (RJ45 or multi-mode fiber), 1× Modbus Plus, 1× RS-232/485, 1× USB mini-B, 1× backup sync port |
|
Power: 24 V DC (19.2–30 V), 550 mA typical, 14 W max, internal OVP & reverse-polarity protection |
|
Environment: 0–60 °C operating, −40–85 °C storage, 95 % RH non-condensing, IP20, conformal-coated PCB |
|
Physical: single-slot Quantum module, 163 × 48 × 130 mm, 0.65 kg, CE/UL/cULus |
