PROSOFT
INDUSTRIAL
COMMUNICATION DEVICE TYPE
PROFIBUS DP
SLAVE GATEWAY PART NUMBER
PLX51-PBS
|
INDUSTRIAL NETWORK INTERFACE / 51 SERIES

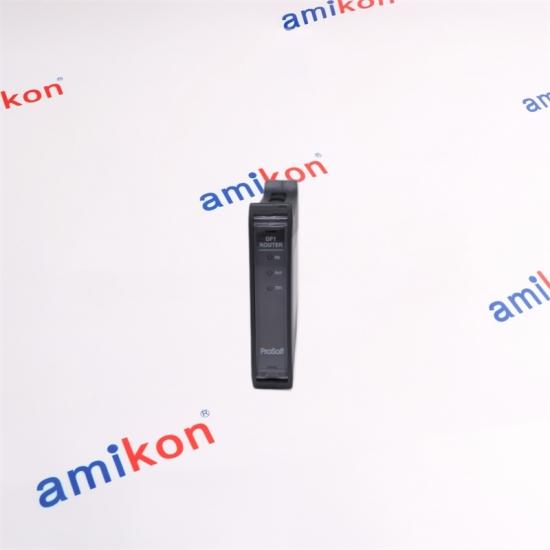

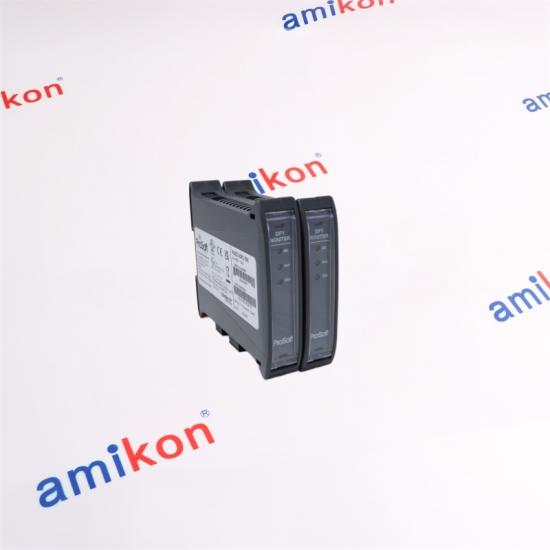

PLX51-PBS
PROFIBUS DP Slave Gateway for EtherNet/IP™, Modbus® TCP/IP and Modbus® Serial
The PLX51-PBS provides an industrial communication bridge between PROFIBUS DP slave networks and EtherNet/IP, Modbus TCP/IP or Modbus Serial systems. Its architecture is intended for applications where existing PROFIBUS equipment needs to exchange process data with modern Ethernet-based control systems.
|
|
01 / ARCHITECTURE
One Gateway,
|
|
|||||||||||||||
|
01
Multi-Slave Emulation
Up to 10 PROFIBUS slave nodes can be emulated, providing additional flexibility for cyclic data organization. |
02
Large Cyclic Data Area
The gateway supports up to 1536 bytes of Input and 1536 bytes of Output cyclic I/O data. |
03
Ethernet Redundancy
Two Ethernet ports support embedded-switch functionality and Device Level Ring operation. |
04
Diagnostic Functions
Packet capture, event logging, statistics and port mirroring support commissioning and fault investigation. |
|
03 / PARAMETERS
Technical
|
|
|
04 / FAMILY SELECTION
PLX51-PBS vs PLX51-PBM |
For replacement planning, the PROFIBUS network role is one of the first points to confirm. A slave-side application should not automatically be substituted with a master-oriented configuration simply because both products belong to the same family.
|
|
PURCHASE SUPPORT
PLX51-PBS
Quotation Desk Please send the required part details together with your destination and application information. |
Sales Manager: Miya zheng
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
For quotation, please provide: Part Number · Quantity · Destination · Required Date · Machine/System
|
| 01 |
Can PLX51-PBS replace a PROFIBUS gateway when the existing PLC remains the PROFIBUS DP Master?
PLX51-PBS is specifically intended for PROFIBUS DP Slave operation, so it can fit an architecture in which the existing PROFIBUS master remains in control of the DP network. Before replacement, the existing slave configuration, I/O mapping and Ethernet-side controller configuration should be checked against the replacement setup.
|
| 02 |
Why would PLX51-PBS be selected instead of PLX51-PBM?
The deciding factor is the PROFIBUS network role. PLX51-PBS is intended for Slave operation, while PLX51-PBM supports Master or Slave operation. If the application requires the gateway itself to control the PROFIBUS DP network as master, PLX51-PBM is the relevant family member to evaluate.
|
| 03 |
Is PLX51-PBS suitable when a PROFIBUS application requires more than 244 bytes of cyclic data?
PLX51-PBS supports up to 1536 bytes of cyclic Input and 1536 bytes of cyclic Output data. It can also emulate up to 10 PROFIBUS slave nodes, providing an architecture for larger cyclic data requirements without relying entirely on extended acyclic data exchanges.
|
| 04 |
What should a buyer verify before ordering PLX51-PBS for an existing installation?
The important checks include the PROFIBUS master configuration, slave address arrangement, cyclic Input/Output mapping, Ethernet controller architecture, required Modbus or EtherNet/IP interface, power requirements and the physical installation environment. Confirming these points helps avoid ordering a gateway with the wrong network role or data architecture.
|
| 05 |
Can PLX51-PBS help diagnose an intermittent PROFIBUS communication problem?
The gateway includes diagnostic capabilities such as PROFIBUS packet capture, device and global statistics, event logging and Ethernet port mirroring. These functions can assist engineers in examining communication traffic and identifying configuration or network behavior during commissioning and fault investigation.
|
|
